ATE Disco de freno original de 2 piezas (24012001551) para Citroën, Fiat, Peugeot
search
  • ATE Disco de freno original de 2 piezas (24012001551) para Citroën, Fiat, Peugeot
  • ATE Disco de freno original de 2 piezas (24012001551) para Citroën, Fiat, Peugeot
  • ATE Disco de freno original de 2 piezas (24012001551) para Citroën, Fiat, Peugeot

ATE Disco de freno original de 2 piezas (24012001551) para Citroën, Fiat, Peugeot

83,49 € (impuestos inc.)

69,00 € fiscales excl.

Número de parte:

ATE 24.0120-0155.1
(240120-01551)

  • Diámetro exterior [mm]: 257,5
  • Diámetro interior [mm]: 126,7
  • Grosor del disco de freno [mm]: 20,0
  • Número de agujeros de perno: 5
  • 2 piezas de disco de freno
  • Número de intercambio: 420155
Información logística:
59,0Haz clic aquí para obtener información detallada.
  • Código Ean: 4006633069939
  • Peso: 10.08kg
Cantidad

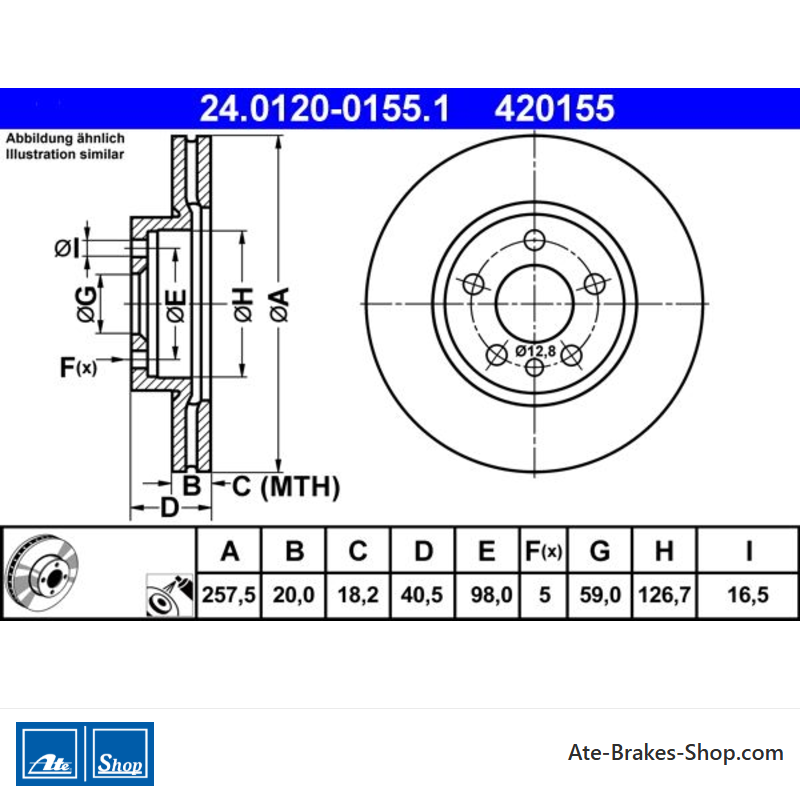

Specification of ATE 24.0120-0155.1 / 240120-01551 / 24012001551:

OE NumberReference info
CITROËN 4246 H9Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CITROËN 4246H9Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CITROËN 4249 L4Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CITROËN 4249L4Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CITROËN 4249 C7Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CITROËN 4249C7Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
FIAT 1316323080Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
FIAT 1312833080Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 4246 H8Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 4246H8Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
CITROËN EVASION MPV (22, U6)

Fitting Position Front Axle		1997-05 - 2002-0773991761MPV
CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		1995-10 - 2000-0858791581Van
CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		2000-04 - 2006-101001361997Van
CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		2000-03 - 2006-101021381997Van
CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		1998-04 - 2006-1051691868Van
CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		1995-10 - 2000-0866901905Van
CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		1999-10 - 2006-1069941997Van
CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_)

Construction Year from 200201

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		2001-10 - 2006-10801091997Van
CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		2002-01 - 2006-10801091997Van
CITROËN JUMPY I (U6U_)

for RPO number up to 09155

Fitting Position Front Axle		1995-10 - 2000-0858791581Bus
CITROËN JUMPY I (U6U_)

for RPO number up to 09155

Fitting Position Front Axle		2000-04 - 2006-121001361997Bus
CITROËN JUMPY I (U6U_)

for RPO number up to 09155

Fitting Position Front Axle		2000-03 - 2006-101021381997Bus
CITROËN JUMPY I (U6U_)

for RPO number up to 09155

Fitting Position Front Axle		1998-04 - 2003-1151691868Bus
CITROËN JUMPY I (U6U_)

for RPO number up to 09155

Fitting Position Front Axle		1995-10 - 1998-0851691905Bus
CITROËN JUMPY I (U6U_)

for RPO number up to 09155

Fitting Position Front Axle		1995-10 - 2000-0866901905Bus
CITROËN JUMPY I (U6U_)

for RPO number up to 09155

Fitting Position Front Axle		1996-04 - 2003-1168921905Bus
CITROËN JUMPY I (U6U_)

for RPO number up to 09155

Fitting Position Front Axle		1999-10 - 2006-1069941997Bus
CITROËN JUMPY I (U6U_)

for RPO number up to 09155

Fitting Position Front Axle		2000-03 - 2006-10801091997Bus
CITROËN JUMPY I (U6U_)

for RPO number up to 09155

Fitting Position Front Axle		2000-03 - 2006-10801091997Bus
CITROËN JUMPY I Platform/Chassis (BU_, BV_, BW_, BX_)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		2000-11 - 2006-1051691868Platform/Chassis
FIAT ULYSSE (220_)

Construction Year to 200207

Fitting Position Front Axle		1997-05 - 2002-0873991761MPV
FIAT SCUDO Van (220_)

Fitting Position Front Axle		1996-02 - 2006-1258791581Van
FIAT SCUDO Van (220_)

Construction Year from 200006

Fitting Position Front Axle		2000-05 - 2006-121001361997Van
FIAT SCUDO Van (220_)

Fitting Position Front Axle		1998-04 - 2006-1251691868Van
FIAT SCUDO Van (220_)

Fitting Position Front Axle		1996-02 - 2006-1251691905Van
FIAT SCUDO Van (220_)

Fitting Position Front Axle		1996-02 - 2006-1266901905Van
FIAT SCUDO Van (220_)

Fitting Position Front Axle		1998-02 - 2006-1268921905Van
FIAT SCUDO Van (220_)

Construction Year from 199912

Fitting Position Front Axle		1999-10 - 2006-1269941997Van
FIAT SCUDO Van (220_)

Fitting Position Front Axle		2002-12 - 2006-12801091997Van
FIAT SCUDO Van (220_)

Construction Year from 199912

Fitting Position Front Axle		1999-05 - 2006-12801091997Van
FIAT SCUDO Bus (220_)

Fitting Position Front Axle		1996-02 - 2006-1258791581Bus
FIAT SCUDO Bus (220_)

Fitting Position Front Axle		2000-06 - 2006-121001361997Bus
FIAT SCUDO Bus (220_)

Fitting Position Front Axle		1998-04 - 2006-1251691868Bus
FIAT SCUDO Bus (220_)

Fitting Position Front Axle		1996-02 - 1998-0451691905Bus
FIAT SCUDO Bus (220_)

Fitting Position Front Axle		1996-02 - 2006-1266901905Bus
FIAT SCUDO Bus (220_)

Fitting Position Front Axle		1996-02 - 2006-1268921905Bus
FIAT SCUDO Bus (220_)

Fitting Position Front Axle		2004-01 - 2006-1269941997Bus
FIAT SCUDO Bus (220_)

Fitting Position Front Axle		1999-12 - 2006-12801091997Bus
FIAT SCUDO Bus (220_)

Construction Year from 199912

Fitting Position Front Axle		1999-05 - 2006-12801091997Bus
FIAT SCUDO Platform/Chassis (220_)

Fitting Position Front Axle		1996-09 - 2006-1258791581Platform/Chassis
FIAT SCUDO Platform/Chassis (220_)

Fitting Position Front Axle		1998-04 - 2006-1251691868Platform/Chassis
FIAT SCUDO Platform/Chassis (220_)

Fitting Position Front Axle		1996-09 - 2006-1268921905Platform/Chassis
FIAT SCUDO Platform/Chassis (220_)

Construction Year from 199912

Fitting Position Front Axle		1999-10 - 2006-1269941997Platform/Chassis
FIAT SCUDO Platform/Chassis (220_)

Fitting Position Front Axle		2002-12 - 2006-12801091997Platform/Chassis
FIAT SCUDO Platform/Chassis (220_)

Construction Year from 199912

Fitting Position Front Axle		1999-05 - 2006-12801091997Platform/Chassis
PEUGEOT 806 (221)

Construction Year from 199610

Construction Year to 200206

Fitting Position Front Axle		1995-07 - 2002-0873991761MPV
PEUGEOT EXPERT Van (222)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		1996-02 - 2000-0958791581Van
PEUGEOT EXPERT Van (222)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		1996-10 - 2000-09741011761Van
PEUGEOT EXPERT Van (222)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		2002-09 - 2006-121001361997Van
PEUGEOT EXPERT Van (222)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		1998-12 - 2006-1251691868Van
PEUGEOT EXPERT Van (222)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		1996-02 - 1998-1251701905Van
PEUGEOT EXPERT Van (222)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		1996-02 - 2000-0966901905Van
PEUGEOT EXPERT Van (222)

Construction Year from 199604

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		1996-02 - 1998-0568921905Van
PEUGEOT EXPERT Van (222)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		2000-07 - 2006-1269941997Van
PEUGEOT EXPERT Van (222)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		2000-07 - 2006-12801091997Van
PEUGEOT EXPERT Van (222)

for RPO number up to 09155

Payload [kg] 800 kg

Fitting Position Front Axle		2000-07 - 2006-12801091997Van
PEUGEOT EXPERT (224_)

for RPO number up to 09155

Fitting Position Front Axle		1996-02 - 2000-0958791581Bus
PEUGEOT EXPERT (224_)

for RPO number up to 09155

Fitting Position Front Axle		1996-10 - 2000-09741011761Bus
PEUGEOT EXPERT (224_)

for RPO number up to 09155

Fitting Position Front Axle		2000-07 - 2006-121001361997Bus
PEUGEOT EXPERT (224_)

for RPO number up to 09155

Fitting Position Front Axle		2003-12 - 2006-1251691868Bus
PEUGEOT EXPERT (224_)

for RPO number up to 09155

Fitting Position Front Axle		1996-02 - 1998-1251701905Bus
PEUGEOT EXPERT (224_)

for RPO number up to 09155

Fitting Position Front Axle		1996-02 - 2000-0966901905Bus
PEUGEOT EXPERT (224_)

Construction Year from 199604

for RPO number up to 09155

Fitting Position Front Axle		1996-02 - 1998-0568921905Bus
PEUGEOT EXPERT (224_)

for RPO number up to 09155

Fitting Position Front Axle		2000-10 - 2006-1069941997Bus
PEUGEOT EXPERT (224_)

for RPO number up to 09155

Fitting Position Front Axle		2000-07 - 2006-12801091997Bus
PEUGEOT EXPERT (224_)

for RPO number up to 09155

Fitting Position Front Axle		2000-07 - 2006-12801091997Bus
24.0120-0155.1

Hoja técnica

Estado del artículo
Ordenable
Marca de automóviles
Citroën
Fiat
Peugeot
Número de Comercio
420155
País de origen
China
Altura
40,5
Diámetro exterior [mm]
257,5
Grosor del disco de freno [mm]
20,0
Tipo de disco de freno
Ventilado
Procesamiento
Aleados/de alto contenido de carbono
Superficie
Revestido
Número de agujeros para los tornillos
5
Diámetro del agujero del perno [mm]
98,0
Diámetro de centrado [mm]
59,0
Diámetro interior [mm]
126,7
Diámetro del diámetro del diámetro [mm]
16,5
Espesor mínimo [mm]
18,2

Referencias específicas

ean13
4006633069939
MPN
2401200155101
