ATE Disque de frein original en 2 pièces (24012203231) pour Hyundai, Kia
98,01 €
TTC
81,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0122-0323.1
(240122-03231)
- Diamètre extérieur [mm] : 280,0
- Diamètre intérieur [mm] : 143,5
- Épaisseur du disque de frein [mm] : 22,0
- Nombre de trous de boulon : 4
- 2 pièces de disque de frein
- Numéro de trade : 422323
Informations logistiques :
- Code Ean : 4006633502184
- Poids : 12.80kg
Specification of ATE 24.0122-0323.1 / 240122-03231 / 24012203231:
| OE Number | Reference info |
| HYUNDAI 51712-H8580 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-H8580 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI BAYON (BC3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2021-05 - | 74 | 101 | 998 | SUV |
| HYUNDAI BAYON (BC3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2021-05 - | 74 | 101 | 998 | SUV |
| HYUNDAI BAYON (BC3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2021-05 - | 88 | 120 | 998 | SUV |
| HYUNDAI BAYON (BC3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2021-05 - | 62 | 84 | 1197 | SUV |
| HYUNDAI BAYON (BC3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2023-05 - | 62 | 84 | 1197 | SUV |
| HYUNDAI BAYON (BC3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2021-05 - | 74 | 101 | 1368 | SUV |
| HYUNDAI i20 III (BC3, BI3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2020-08 - | 74 | 101 | 998 | Hatchback |
| HYUNDAI i20 III (BC3, BI3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2020-08 - | 74 | 101 | 998 | Hatchback |
| HYUNDAI i20 III (BC3, BI3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2020-08 - | 88 | 120 | 998 | Hatchback |
| HYUNDAI i20 III (BC3, BI3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2020-08 - | 62 | 84 | 1197 | Hatchback |
| HYUNDAI i20 III (BC3, BI3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2021-05 - | 74 | 101 | 1368 | Hatchback |
| KIA RIO IV (YB, SC, FB) Construction Year to 201708 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2017-01 - | 74 | 101 | 998 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Front Axle | 2020-08 - 2023-04 | 74 | 101 | 998 | Hatchback |
| KIA RIO IV (YB, SC, FB) Construction Year to 201708 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2017-01 - | 88 | 120 | 998 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Front Axle | 2020-05 - | 60 | 82 | 1197 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Front Axle | 2020-05 - | 62 | 84 | 1197 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2018-08 - | 74 | 101 | 998 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2021-01 - | 74 | 101 | 998 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2017-07 - 2025-12 | 88 | 120 | 998 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2020-07 - 2025-12 | 88 | 120 | 998 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2024-04 - 2025-12 | 58 | 79 | 1197 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2021-11 - 2025-12 | 62 | 84 | 1197 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2017-07 - 2025-12 | 62 | 84 | 1248 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2018-11 - 2025-12 | 71 | 97 | 1368 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2017-07 - 2025-12 | 73 | 99 | 1368 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2017-07 - 2025-12 | 81 | 110 | 1582 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2018-08 - 2025-12 | 85 | 116 | 1598 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2018-08 - 2025-12 | 100 | 136 | 1598 | Hatchback |
| KIA RIO IV Hatchback Van (YB, SC, FB) Construction Year to 201708 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2017-01 - | 74 | 101 | 998 | Hatchback Van |
| KIA RIO IV Hatchback Van (YB, SC, FB) Construction Year to 201708 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2017-01 - | 88 | 120 | 998 | Hatchback Van |
| KIA STONIC Hatchback Van (YB) Fitting Position Front Axle | 2018-08 - | 74 | 101 | 998 | Hatchback Van |
| KIA STONIC Hatchback Van (YB) Fitting Position Front Axle | 2017-07 - | 88 | 120 | 998 | Hatchback Van |
| KIA STONIC Hatchback Van (YB) Fitting Position Front Axle | 2018-08 - | 85 | 116 | 1598 | Hatchback Van |
24.0122-0323.1

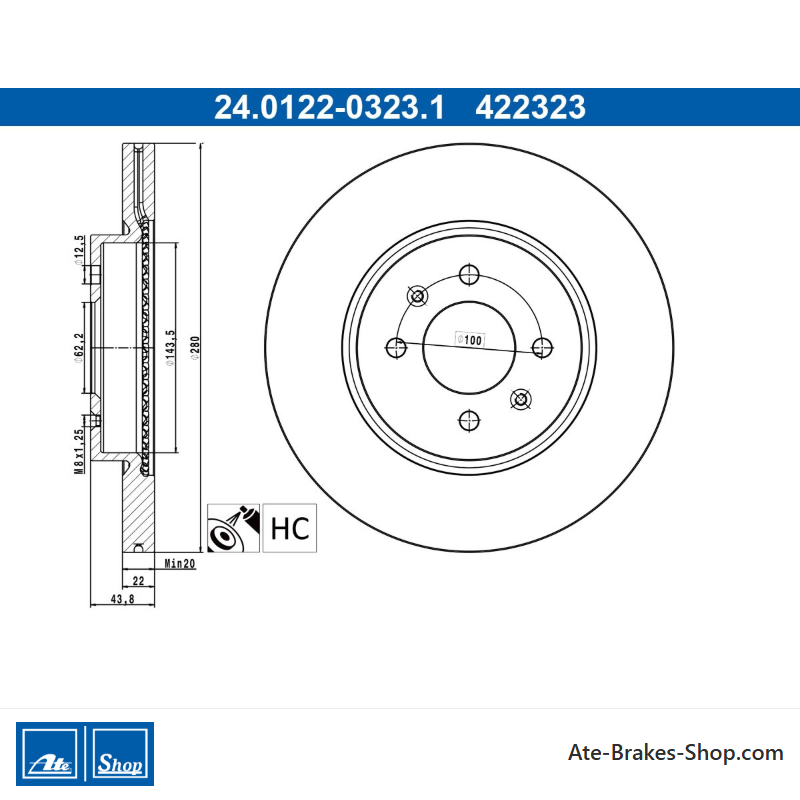

Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Hyundai
Kia - Numéro de trade
- 422323
- Pays d’origine
- Chine
- Hauteur
- 43,8
- Diamètre extérieur [mm]
- 280,0
- Épaisseur du disque de frein [mm]
- 22,0
- Type à disque de frein
- Ventilé
- Traitement
- Haute émission de carbone
- Surface
- Enduit
- Nombre de trous de boulons
- 4
- Diamètre du trou de boulon [mm]
- 100,0
- Diamètre de centrage [mm]
- 62,2
- Diamètre intérieur [mm]
- 143,5
- Diamètre du canon [mm]
- 12,5
- Épaisseur minimale [mm]
- 20,0
Références spécifiques
- EAN-13
- 4006633502184
- MPN
- 2401220323102
ATE 24.0122-0323.1
(240122-03231)
- Diamètre extérieur [mm] : 280,0
- Diamètre intérieur [mm] : 143,5
- Épaisseur du disque de frein [mm] : 22,0
- Nombre de trous de boulon : 4
- 2 pièces de disque de frein
- Numéro de trade : 422323
