ATE Disco de freno original de 2 piezas (24012203231) para Hyundai, Kia
98,01 €
(impuestos inc.)
81,00 € fiscales excl.
Número de parte:
ATE 24.0122-0323.1
(240122-03231)
- Diámetro exterior [mm]: 280,0
- Diámetro interior [mm]: 143,5
- Grosor del disco de freno [mm]: 22,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 422323
Información logística:
- Código Ean: 4006633502184
- Peso: 12.80kg
Specification of ATE 24.0122-0323.1 / 240122-03231 / 24012203231:
| OE Number | Reference info |
| HYUNDAI 51712-H8580 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-H8580 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI BAYON (BC3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2021-05 - | 74 | 101 | 998 | SUV |
| HYUNDAI BAYON (BC3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2021-05 - | 74 | 101 | 998 | SUV |
| HYUNDAI BAYON (BC3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2021-05 - | 88 | 120 | 998 | SUV |
| HYUNDAI BAYON (BC3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2021-05 - | 62 | 84 | 1197 | SUV |
| HYUNDAI BAYON (BC3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2023-05 - | 62 | 84 | 1197 | SUV |
| HYUNDAI BAYON (BC3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2021-05 - | 74 | 101 | 1368 | SUV |
| HYUNDAI i20 III (BC3, BI3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2020-08 - | 74 | 101 | 998 | Hatchback |
| HYUNDAI i20 III (BC3, BI3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2020-08 - | 74 | 101 | 998 | Hatchback |
| HYUNDAI i20 III (BC3, BI3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2020-08 - | 88 | 120 | 998 | Hatchback |
| HYUNDAI i20 III (BC3, BI3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2020-08 - | 62 | 84 | 1197 | Hatchback |
| HYUNDAI i20 III (BC3, BI3) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2021-05 - | 74 | 101 | 1368 | Hatchback |
| KIA RIO IV (YB, SC, FB) Construction Year to 201708 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2017-01 - | 74 | 101 | 998 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Front Axle | 2020-08 - 2023-04 | 74 | 101 | 998 | Hatchback |
| KIA RIO IV (YB, SC, FB) Construction Year to 201708 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2017-01 - | 88 | 120 | 998 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Front Axle | 2020-05 - | 60 | 82 | 1197 | Hatchback |
| KIA RIO IV (YB, SC, FB) Fitting Position Front Axle | 2020-05 - | 62 | 84 | 1197 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2018-08 - | 74 | 101 | 998 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2021-01 - | 74 | 101 | 998 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2017-07 - 2025-12 | 88 | 120 | 998 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2020-07 - 2025-12 | 88 | 120 | 998 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2024-04 - 2025-12 | 58 | 79 | 1197 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2021-11 - 2025-12 | 62 | 84 | 1197 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2017-07 - 2025-12 | 62 | 84 | 1248 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2018-11 - 2025-12 | 71 | 97 | 1368 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2017-07 - 2025-12 | 73 | 99 | 1368 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2017-07 - 2025-12 | 81 | 110 | 1582 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2018-08 - 2025-12 | 85 | 116 | 1598 | Hatchback |
| KIA STONIC (YB) Fitting Position Front Axle | 2018-08 - 2025-12 | 100 | 136 | 1598 | Hatchback |
| KIA RIO IV Hatchback Van (YB, SC, FB) Construction Year to 201708 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2017-01 - | 74 | 101 | 998 | Hatchback Van |
| KIA RIO IV Hatchback Van (YB, SC, FB) Construction Year to 201708 Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2017-01 - | 88 | 120 | 998 | Hatchback Van |
| KIA STONIC Hatchback Van (YB) Fitting Position Front Axle | 2018-08 - | 74 | 101 | 998 | Hatchback Van |
| KIA STONIC Hatchback Van (YB) Fitting Position Front Axle | 2017-07 - | 88 | 120 | 998 | Hatchback Van |
| KIA STONIC Hatchback Van (YB) Fitting Position Front Axle | 2018-08 - | 85 | 116 | 1598 | Hatchback Van |

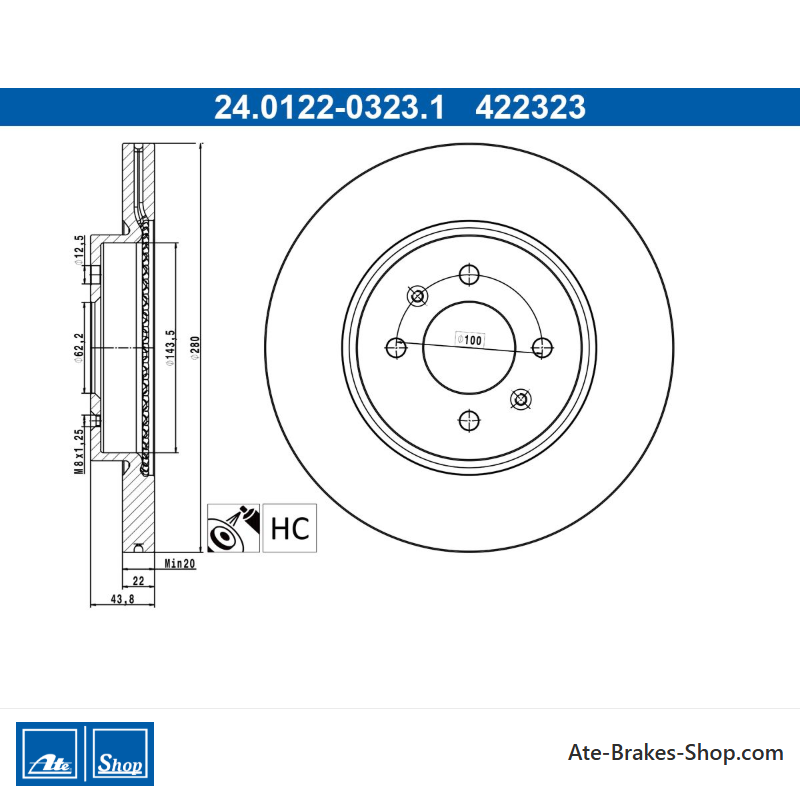

24.0122-0323.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Hyundai
Kia - Número de Comercio
- 422323
- País de origen
- China
- Altura
- 43,8
- Diámetro exterior [mm]
- 280,0
- Grosor del disco de freno [mm]
- 22,0
- Tipo de disco de freno
- Ventilado
- Procesamiento
- Alto en carbono
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de centrado [mm]
- 62,2
- Diámetro interior [mm]
- 143,5
- Diámetro del diámetro del diámetro [mm]
- 12,5
- Espesor mínimo [mm]
- 20,0
Referencias específicas
- ean13
- 4006633502184
- MPN
- 2401220323102
ATE 24.0122-0323.1
(240122-03231)
- Diámetro exterior [mm]: 280,0
- Diámetro interior [mm]: 143,5
- Grosor del disco de freno [mm]: 22,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 422323
