ATE originale Bremsbeläge (13046039832) für Fiat, Lancia
32,67 €
(inkl. MwSt.)
27,00 € Steuerexzl.
Teilenummer:
ATE 13.0460-3983.2
(130460-39832)

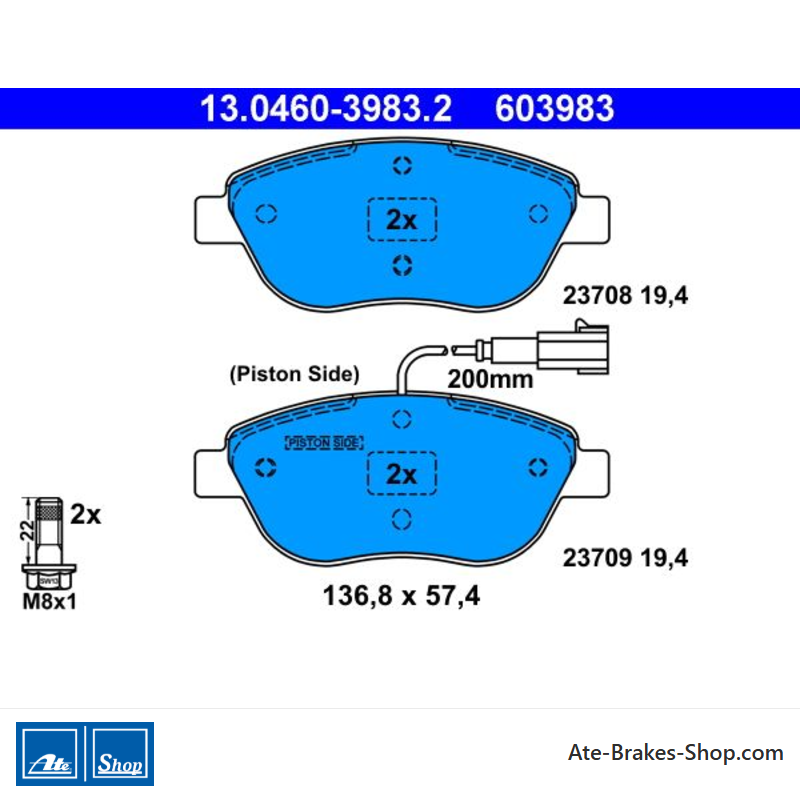

- Breite [mm]: 136,8
- Höhe [mm]: 57,4
- Dicke [mm]: 19,4
- Verschleißwarnkontakt: einschließlich Verschleißwarnkontakt
- Bremssystem: Bosch
- Handelsnummer: 603983
- Ean-Code: 4006633075718
- Gewicht: 1.86kg
Specification of ATE 13.0460-3983.2 / 130460-39832 / 13046039832:
| OE Number | Reference info |
| FIAT 71770116 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9949276 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77362092 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77362195 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77364599 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365810 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71752990 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71754803 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-10 - 2014-12 | 88 | 120 | 1368 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2008-03 - 2014-12 | 66 | 90 | 1598 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-09 - 2014-12 | 77 | 105 | 1598 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2008-03 - 2014-12 | 88 | 120 | 1598 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-04 - 2008-12 | 66 | 90 | 1910 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2006-11 - 2009-12 | 85 | 116 | 1910 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-04 - 2014-12 | 88 | 120 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2001-10 - 2007-04 | 98 | 133 | 1747 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2002-02 - 2005-09 | 59 | 80 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2004-09 - 2006-11 | 66 | 90 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2005-09 - 2006-11 | 74 | 100 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2001-10 - 2006-11 | 85 | 115 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2005-09 - 2006-11 | 88 | 120 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2003-09 - 2006-11 | 93 | 126 | 1910 | Hatchback |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2003-01 - 2008-08 | 98 | 133 | 1747 | Estate |
| FIAT STILO Multi Wagon (192_) Fitting Position Front Axle | 2003-01 - 2005-08 | 59 | 80 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2004-09 - 2008-08 | 66 | 90 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2005-09 - 2008-08 | 74 | 100 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2003-01 - 2008-08 | 85 | 115 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2005-09 - 2008-08 | 88 | 120 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2003-09 - 2008-08 | 93 | 126 | 1910 | Estate |
| FIAT BRAVO Van (198_) Fitting Position Front Axle | 2008-03 - 2014-12 | 77 | 105 | 1598 | Hatchback Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2001-10 - 2005-08 | 59 | 80 | 1910 | Estate Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2001-10 - 2005-08 | 85 | 116 | 1910 | Estate Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2005-09 - 2008-08 | 88 | 120 | 1910 | Estate Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2003-09 - 2005-08 | 93 | 126 | 1910 | Estate Van |
| LANCIA DELTA III (844_) Construction Year to 200910 Fitting Position Front Axle | 2008-09 - 2014-08 | 88 | 120 | 1368 | Hatchback |
| LANCIA DELTA III (844_) Construction Year to 200910 Fitting Position Front Axle | 2008-08 - 2014-08 | 85 | 116 | 1598 | Hatchback |
| LANCIA DELTA III (844_) Construction Year to 200910 Fitting Position Front Axle | 2008-09 - 2014-08 | 88 | 120 | 1598 | Hatchback |
13.0460-3983.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
Lancia - Handelsnummer
- 603983
- Bremssystem
- Bosch
- Herkunftsland
- EU
- Verschleißanzeige
- Elektronisch
Enthalten - Zusätzliche Informationen
- mit Bremssättelschrauben
- Breite
- 136,8
- Höhe
- 57,4
- Dicke
- 19,4
- Anzahl der Schrauben/Schrauben
- 2
- Warnanzeige-Länge
- 200 mm
Spezifische Referenzen
- ean13
- 4006633075718
- Hersteller-Teilenummer (MPN)
- 1304603983202
ATE 13.0460-3983.2
(130460-39832)
- Breite [mm]: 136,8
- Höhe [mm]: 57,4
- Dicke [mm]: 19,4
- Verschleißwarnkontakt: einschließlich Verschleißwarnkontakt
- Bremssystem: Bosch
- Handelsnummer: 603983
