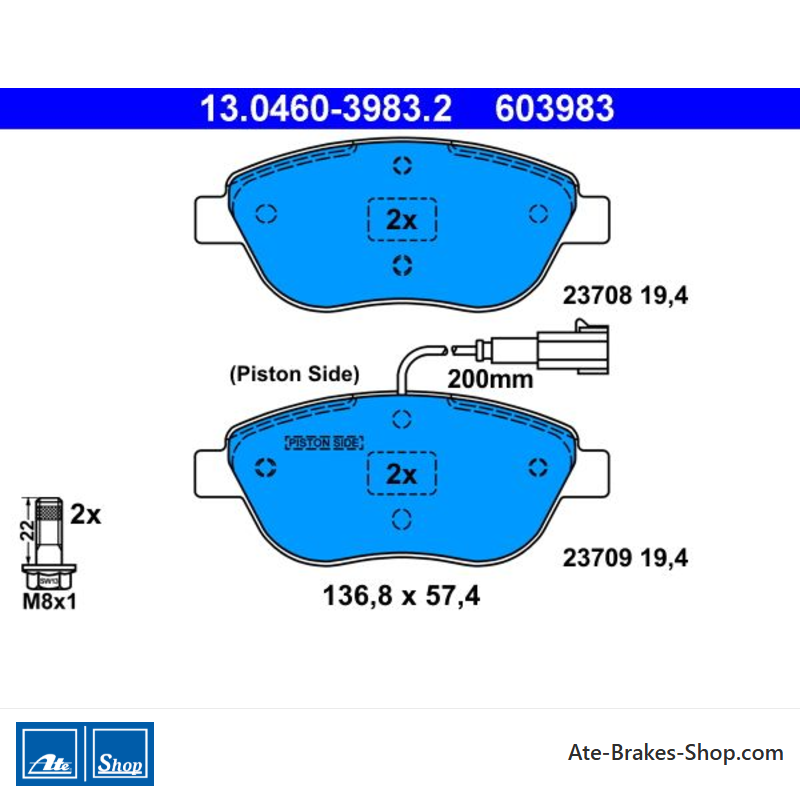

ATE plaquettes de frein d’origine (13046039832) pour Fiat, Lancia
32,67 €
TTC
27,00 € fiscalité ex.
Numéro de pièce :
ATE 13.0460-3983.2
(130460-39832)
- Largeur [mm] : 136,8
- Taille [mm] : 57,4
- Épaisseur [mm] : 19,4
- Contact d’avertissement de port : y compris contact d’avertissement de port
- Système de freinage : Bosch
- Numéro de trade : 603983
- Code Ean : 4006633075718
- Poids : 1.86kg
Specification of ATE 13.0460-3983.2 / 130460-39832 / 13046039832:
| OE Number | Reference info |
| FIAT 71770116 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9949276 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77362092 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77362195 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77364599 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365810 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71752990 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71754803 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-10 - 2014-12 | 88 | 120 | 1368 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2008-03 - 2014-12 | 66 | 90 | 1598 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-09 - 2014-12 | 77 | 105 | 1598 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2008-03 - 2014-12 | 88 | 120 | 1598 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-04 - 2008-12 | 66 | 90 | 1910 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2006-11 - 2009-12 | 85 | 116 | 1910 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-04 - 2014-12 | 88 | 120 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2001-10 - 2007-04 | 98 | 133 | 1747 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2002-02 - 2005-09 | 59 | 80 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2004-09 - 2006-11 | 66 | 90 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2005-09 - 2006-11 | 74 | 100 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2001-10 - 2006-11 | 85 | 115 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2005-09 - 2006-11 | 88 | 120 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2003-09 - 2006-11 | 93 | 126 | 1910 | Hatchback |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2003-01 - 2008-08 | 98 | 133 | 1747 | Estate |
| FIAT STILO Multi Wagon (192_) Fitting Position Front Axle | 2003-01 - 2005-08 | 59 | 80 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2004-09 - 2008-08 | 66 | 90 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2005-09 - 2008-08 | 74 | 100 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2003-01 - 2008-08 | 85 | 115 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2005-09 - 2008-08 | 88 | 120 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2003-09 - 2008-08 | 93 | 126 | 1910 | Estate |
| FIAT BRAVO Van (198_) Fitting Position Front Axle | 2008-03 - 2014-12 | 77 | 105 | 1598 | Hatchback Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2001-10 - 2005-08 | 59 | 80 | 1910 | Estate Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2001-10 - 2005-08 | 85 | 116 | 1910 | Estate Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2005-09 - 2008-08 | 88 | 120 | 1910 | Estate Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2003-09 - 2005-08 | 93 | 126 | 1910 | Estate Van |
| LANCIA DELTA III (844_) Construction Year to 200910 Fitting Position Front Axle | 2008-09 - 2014-08 | 88 | 120 | 1368 | Hatchback |
| LANCIA DELTA III (844_) Construction Year to 200910 Fitting Position Front Axle | 2008-08 - 2014-08 | 85 | 116 | 1598 | Hatchback |
| LANCIA DELTA III (844_) Construction Year to 200910 Fitting Position Front Axle | 2008-09 - 2014-08 | 88 | 120 | 1598 | Hatchback |
13.0460-3983.2
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Fiat
Lancia - Numéro de trade
- 603983
- Système de freinage
- Bosch
- Pays d’origine
- EU
- Indicateur d’usure
- Inclus
Électronique - Informations supplémentaires
- avec vis d’étrier de frein
- Largeur
- 136,8
- Hauteur
- 57,4
- Épaisseur
- 19,4
- Nombre de boulons/vis
- 2
- Longueur de l’indicateur d’avertissement
- 200 mm
Références spécifiques
- EAN-13
- 4006633075718
- MPN
- 1304603983202
ATE 13.0460-3983.2
(130460-39832)
- Largeur [mm] : 136,8
- Taille [mm] : 57,4
- Épaisseur [mm] : 19,4
- Contact d’avertissement de port : y compris contact d’avertissement de port
- Système de freinage : Bosch
- Numéro de trade : 603983
