ATE pastillas de freno originales (13046039832) para Fiat, Lancia
32,67 €
(impuestos inc.)
27,00 € fiscales excl.
Número de parte:

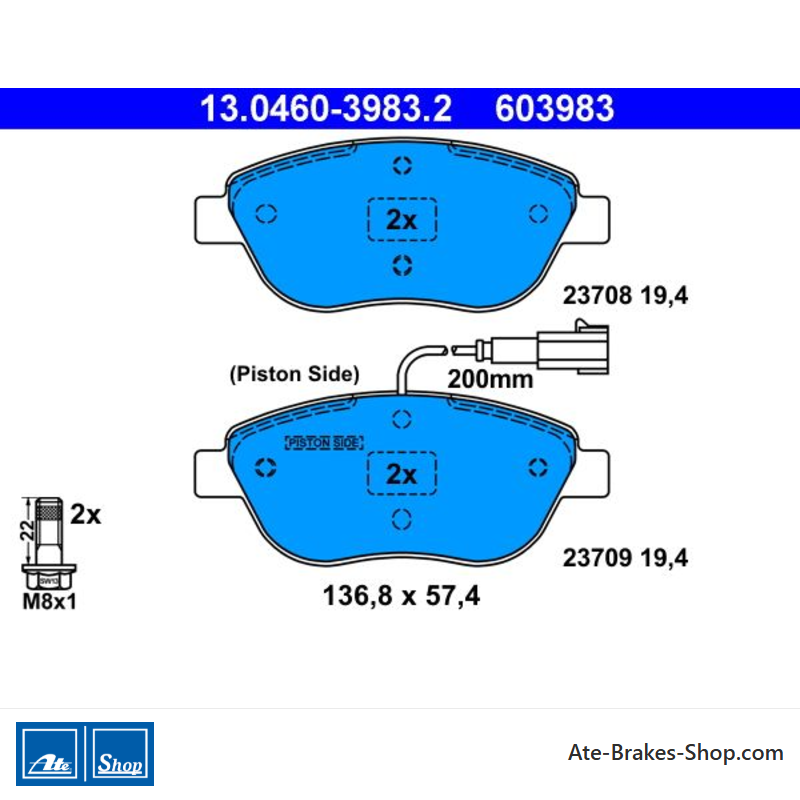

ATE 13.0460-3983.2
(130460-39832)
- Ancho [mm]: 136,8
- Altura [mm]: 57,4
- Grosor [mm]: 19,4
- Contacto de advertencia de uso: incluyendo contacto de advertencia de uso
- Sistema de frenos: Bosch
- Número de intercambio: 603983
- Código Ean: 4006633075718
- Peso: 1.86kg
Specification of ATE 13.0460-3983.2 / 130460-39832 / 13046039832:
| OE Number | Reference info |
| FIAT 71770116 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9949276 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77362092 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77362195 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77364599 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365810 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71752990 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71754803 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-10 - 2014-12 | 88 | 120 | 1368 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2008-03 - 2014-12 | 66 | 90 | 1598 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-09 - 2014-12 | 77 | 105 | 1598 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2008-03 - 2014-12 | 88 | 120 | 1598 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-04 - 2008-12 | 66 | 90 | 1910 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2006-11 - 2009-12 | 85 | 116 | 1910 | Hatchback |
| FIAT BRAVO II (198_) Fitting Position Front Axle | 2007-04 - 2014-12 | 88 | 120 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2001-10 - 2007-04 | 98 | 133 | 1747 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2002-02 - 2005-09 | 59 | 80 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2004-09 - 2006-11 | 66 | 90 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2005-09 - 2006-11 | 74 | 100 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2001-10 - 2006-11 | 85 | 115 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2005-09 - 2006-11 | 88 | 120 | 1910 | Hatchback |
| FIAT STILO (192_) Fitting Position Front Axle | 2003-09 - 2006-11 | 93 | 126 | 1910 | Hatchback |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2003-01 - 2008-08 | 98 | 133 | 1747 | Estate |
| FIAT STILO Multi Wagon (192_) Fitting Position Front Axle | 2003-01 - 2005-08 | 59 | 80 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2004-09 - 2008-08 | 66 | 90 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2005-09 - 2008-08 | 74 | 100 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2003-01 - 2008-08 | 85 | 115 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2005-09 - 2008-08 | 88 | 120 | 1910 | Estate |
| FIAT STILO Multi Wagon (192_) Construction Year to 200803 Fitting Position Front Axle | 2003-09 - 2008-08 | 93 | 126 | 1910 | Estate |
| FIAT BRAVO Van (198_) Fitting Position Front Axle | 2008-03 - 2014-12 | 77 | 105 | 1598 | Hatchback Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2001-10 - 2005-08 | 59 | 80 | 1910 | Estate Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2001-10 - 2005-08 | 85 | 116 | 1910 | Estate Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2005-09 - 2008-08 | 88 | 120 | 1910 | Estate Van |
| FIAT STILO VAN (192_) Fitting Position Front Axle | 2003-09 - 2005-08 | 93 | 126 | 1910 | Estate Van |
| LANCIA DELTA III (844_) Construction Year to 200910 Fitting Position Front Axle | 2008-09 - 2014-08 | 88 | 120 | 1368 | Hatchback |
| LANCIA DELTA III (844_) Construction Year to 200910 Fitting Position Front Axle | 2008-08 - 2014-08 | 85 | 116 | 1598 | Hatchback |
| LANCIA DELTA III (844_) Construction Year to 200910 Fitting Position Front Axle | 2008-09 - 2014-08 | 88 | 120 | 1598 | Hatchback |
13.0460-3983.2
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Fiat
Lancia - Número de Comercio
- 603983
- Sistema de frenos
- Bosch
- País de origen
- EU
- Indicador de desgaste
- Electrónica
Incluido - Información adicional
- con tornillos de pinza de freno
- Anchura
- 136,8
- Altura
- 57,4
- Grosor
- 19,4
- Número de tornillos/tornillos
- 2
- Longitud del indicador de advertencia
- 200 mm
Referencias específicas
- ean13
- 4006633075718
- MPN
- 1304603983202
ATE 13.0460-3983.2
(130460-39832)
- Ancho [mm]: 136,8
- Altura [mm]: 57,4
- Grosor [mm]: 19,4
- Contacto de advertencia de uso: incluyendo contacto de advertencia de uso
- Sistema de frenos: Bosch
- Número de intercambio: 603983
