ATE Originale Bremsscheibe (24011602161) für Ford
163,35 €
(inkl. MwSt.)
135,00 € Steuerexzl.
Teilenummer:
ATE 24.0116-0216.1
(240116-02161)
- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 120,0
- Bremsscheibendicke [mm]: 16,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 416216
Logistische Informationen:
- Ean-Code: 4006633446037
- Gewicht: 8.75kg
Specification of ATE 24.0116-0216.1 / 240116-02161 / 24011602161:
| OE Number | Reference info |
| FORD 1387152 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1451161 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Construction Year from 200605 Fitting Position Rear Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2006-07 - 2014-08 | 81 | 110 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2006-07 - 2014-08 | 96 | 131 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Bus |

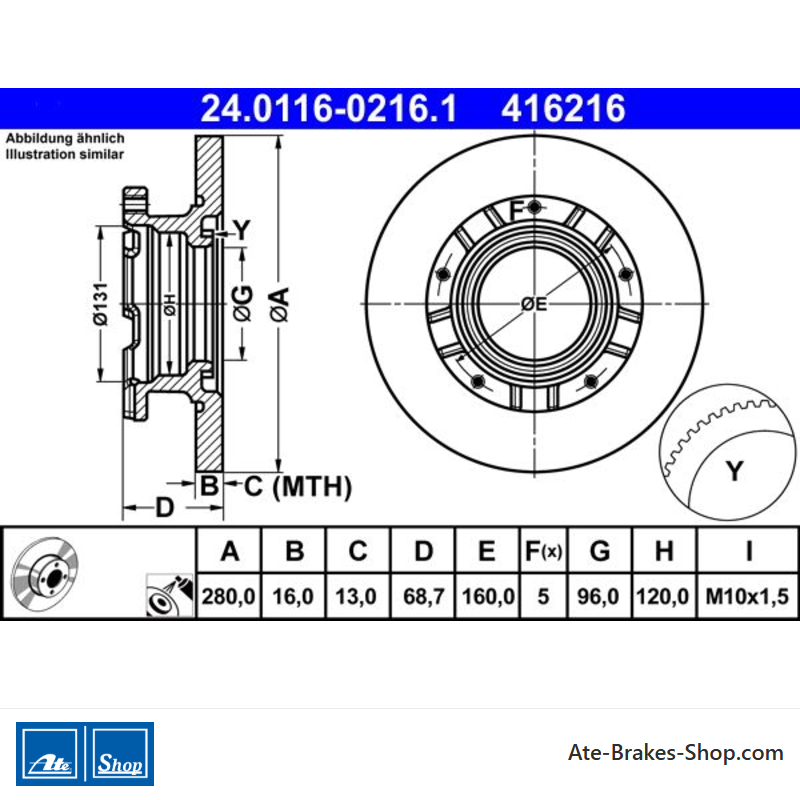

24.0116-0216.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Ford
- Handelsnummer
- 416216
- Herkunftsland
- Italien
- Zusätzliche Informationen
- mit ABS-Sensorring
- Höhe
- 68,7
- Außendurchmesser [mm]
- 280,0
- Bremsscheibendicke [mm]
- 16,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 160,0
- Zentrierungsdurchmesser [mm]
- 96,0
- Innendurchmesser [mm]
- 120,0
- Gewindegröße
- M10x1,5
- Mindestdicke [mm]
- 13,0
Spezifische Referenzen
- ean13
- 4006633446037
- Hersteller-Teilenummer (MPN)
- 2401160216102
ATE 24.0116-0216.1
(240116-02161)
- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 120,0
- Bremsscheibendicke [mm]: 16,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 416216
