ATE Originele remschijf (24011602161) voor Ford

€ 163,35 (incl. btw)

€ 135,00 belastingexcl.

Onderdeelnummer:

ATE 24.0116-0216.1
(240116-02161)

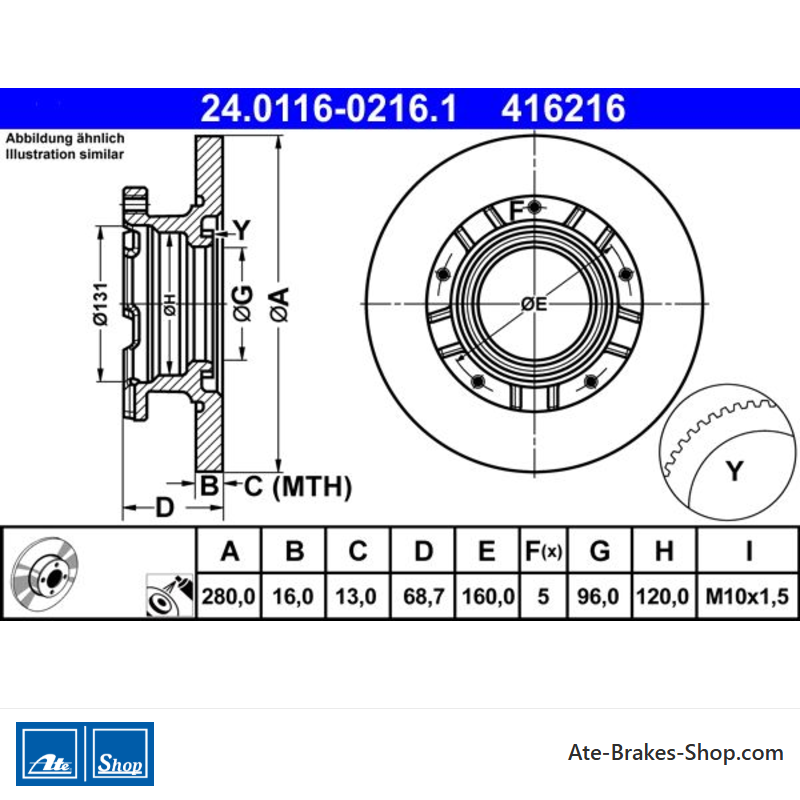

  • Buitendiameter [mm]: 280,0
  • Binnendiameter [mm]: 120,0
  • Remschijfdikte [mm]: 16,0
  • Aantal bolt holes: 5
  • Handelsnummer: 416216
Logistieke informatie:
96,0Klik hier voor gedetailleerde informatie.
  • Ean Code: 4006633446037
  • Gewicht: 8.75kg
Aantal

Specification of ATE 24.0116-0216.1 / 240116-02161 / 24011602161:

OE NumberReference info
FORD 1387152Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
FORD 1451161Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
FORD TRANSIT Van (FA_ _)

Fitting Position Rear Axle		2006-04 - 2014-0863852198Van
FORD TRANSIT Van (FA_ _)

Fitting Position Rear Axle		2011-10 - 2014-08741002198Van
FORD TRANSIT Van (FA_ _)

Fitting Position Rear Axle		2006-04 - 2014-08811102198Van
FORD TRANSIT Van (FA_ _)

Fitting Position Rear Axle		2008-10 - 2014-08851152198Van
FORD TRANSIT Van (FA_ _)

Fitting Position Rear Axle		2011-10 - 2014-08921252198Van
FORD TRANSIT Van (FA_ _)

Fitting Position Rear Axle		2006-04 - 2014-08961302198Van
FORD TRANSIT Van (FA_ _)

Fitting Position Rear Axle		2007-10 - 2014-081031402198Van
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Fitting Position Rear Axle		2006-04 - 2014-0863852198Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Fitting Position Rear Axle		2011-10 - 2014-08741002198Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Fitting Position Rear Axle		2006-04 - 2014-08811102198Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Fitting Position Rear Axle		2008-10 - 2014-08851152198Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Fitting Position Rear Axle		2011-10 - 2014-08921252198Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Fitting Position Rear Axle		2006-04 - 2014-08961302198Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Fitting Position Rear Axle		2007-10 - 2014-081031402198Platform/Chassis
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Construction Year from 200605

Fitting Position Rear Axle		2006-04 - 2014-0863852198Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Rear Axle		2011-10 - 2014-08741002198Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Rear Axle		2006-04 - 2014-08811102198Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Rear Axle		2008-10 - 2014-08851152198Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Rear Axle		2011-10 - 2014-08921252198Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Rear Axle		2006-04 - 2014-08961302198Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Rear Axle		2007-10 - 2014-081031402198Bus
FORD TRANSIT TOURNEO Bus

Fitting Position Rear Axle		2006-07 - 2014-08811102198Bus
FORD TRANSIT TOURNEO Bus

Fitting Position Rear Axle		2008-10 - 2014-08851152198Bus
FORD TRANSIT TOURNEO Bus

Fitting Position Rear Axle		2011-10 - 2014-08921252198Bus
FORD TRANSIT TOURNEO Bus

Fitting Position Rear Axle		2006-07 - 2014-08961312198Bus
FORD TRANSIT TOURNEO Bus

Fitting Position Rear Axle		2007-10 - 2014-081031402198Bus
24.0116-0216.1

Datasheet

Artikelstatus
Bestelbaar
Automerk
Ford
Handelsnummer
416216
Land van Herkomst
Italië
Aanvullende informatie
met ABS-sensorring
Hoogte
68,7
Buitendiameter [mm]
280,0
Remschijfdikte [mm]
16,0
Type remschijf
Solide
Oppervlakte
Gecoate
Aantal boltgaten
5
Diameter van het schroefgat [mm]
160,0
Centreringsdiameter [mm]
96,0
Binnendiameter [mm]
120,0
Draadmaat
M10x1,5
Minimale dikte [mm]
13,0

Specifieke referenties

ean13
4006633446037
MPN
2401160216102
