ATE Original 2 Teile Bremsscheibe (24012202001) für Suzuki
search
  • ATE Original 2 Teile Bremsscheibe (24012202001) für Suzuki
  • ATE Original 2 Teile Bremsscheibe (24012202001) für Suzuki
  • ATE Original 2 Teile Bremsscheibe (24012202001) für Suzuki

ATE Original 2 Teile Bremsscheibe (24012202001) für Suzuki

130,68 € (inkl. MwSt.)

108,00 € Steuerexzl.

Teilenummer:

ATE 24.0122-0200.1
(240122-02001)

  • Außendurchmesser [mm]: 310,0
  • Innendurchmesser [mm]: 181,2
  • Bremsscheibendicke [mm]: 22,0
  • Anzahl der Bolzenlöcher: 5
  • 2 Teile Bremsscheiben
  • Handelsnummer: 422200
Logistische Informationen:
108,3Klicken Sie hier für detaillierte Informationen.
  • Ean-Code: 4006633113120
  • Gewicht: 12.10kg
Menge

Specification of ATE 24.0122-0200.1 / 240122-02001 / 24012202001:

OE NumberReference info
SUZUKI 55211-65D11Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
SUZUKI 55211-65D12Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
SUZUKI GRAND VITARA I (FT, HT)

Construction Year from 199808

Fitting Position Front Axle		1998-03 - 2003-0769941590Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Vehicle Equipment Line/Trim Level Grand Escudo

Fitting Position Front Axle		2003-09 - 2005-0971971590Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		1998-03 - 2003-07941281995Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		2001-04 - 2003-071161582493Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Construction Year to 200009

Fitting Position Front Axle		1998-04 - 2003-071061442493Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		2001-09 - 2003-071271732736Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Construction Year to 200509

Fitting Position Front Axle		2003-09 - 2006-081351842736Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		2003-04 - 2003-071351842736Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		2000-04 - 2005-0963861998Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		1998-03 - 2003-0764871998Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		2001-02 - 2003-12801091997Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		2001-07 - 2005-09801091997Closed Off-Road Vehicle
SUZUKI GRAND VITARA I Open Off-Road Vehicle (GT)

Construction Year from 199808

Fitting Position Front Axle		1998-03 - 2003-0769941590Open Off-Road Vehicle

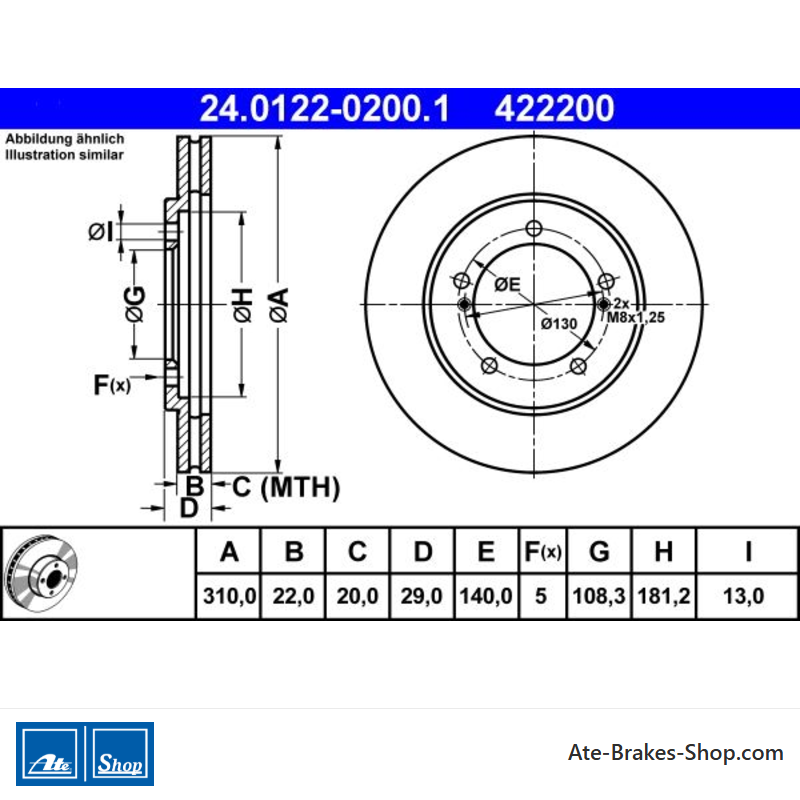

24.0122-0200.1

Datenblatt

Artikelstatus
Bestellbar
Automarke
Suzuki
Handelsnummer
422200
Herkunftsland
Italien
Höhe
29,0
Außendurchmesser [mm]
310,0
Bremsscheibendicke [mm]
22,0
Bremsscheibentyp
Entlüftet
Anzahl der Schraublöcher
5
Bolzenlochdurchmesser [mm]
140,0
Zentrierungsdurchmesser [mm]
108,3
Innendurchmesser [mm]
181,2
Bohrdurchmesser [mm]
13,0
Mindestdicke [mm]
20,0

Spezifische Referenzen

ean13
4006633113120
Hersteller-Teilenummer (MPN)
2401220200102
