ATE Originele 2-delige remschijf (24012202001) voor Suzuki

€ 130,68 (incl. btw)

€ 108,00 belastingexcl.

Onderdeelnummer:

ATE 24.0122-0200.1
(240122-02001)

  • Buitendiameter [mm]: 310,0
  • Binnendiameter [mm]: 181,2
  • Remschijfdikte [mm]: 22,0
  • Aantal bolt holes: 5
  • 2 stukken remschijf
  • Handelsnummer: 422200
Logistieke informatie:
108,3Klik hier voor gedetailleerde informatie.
  • Ean Code: 4006633113120
  • Gewicht: 12.10kg
Aantal

Specification of ATE 24.0122-0200.1 / 240122-02001 / 24012202001:

OE NumberReference info
SUZUKI 55211-65D11Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
SUZUKI 55211-65D12Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
SUZUKI GRAND VITARA I (FT, HT)

Construction Year from 199808

Fitting Position Front Axle		1998-03 - 2003-0769941590Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Vehicle Equipment Line/Trim Level Grand Escudo

Fitting Position Front Axle		2003-09 - 2005-0971971590Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		1998-03 - 2003-07941281995Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		2001-04 - 2003-071161582493Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Construction Year to 200009

Fitting Position Front Axle		1998-04 - 2003-071061442493Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		2001-09 - 2003-071271732736Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Construction Year to 200509

Fitting Position Front Axle		2003-09 - 2006-081351842736Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		2003-04 - 2003-071351842736Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		2000-04 - 2005-0963861998Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		1998-03 - 2003-0764871998Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		2001-02 - 2003-12801091997Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		2001-07 - 2005-09801091997Closed Off-Road Vehicle
SUZUKI GRAND VITARA I Open Off-Road Vehicle (GT)

Construction Year from 199808

Fitting Position Front Axle		1998-03 - 2003-0769941590Open Off-Road Vehicle

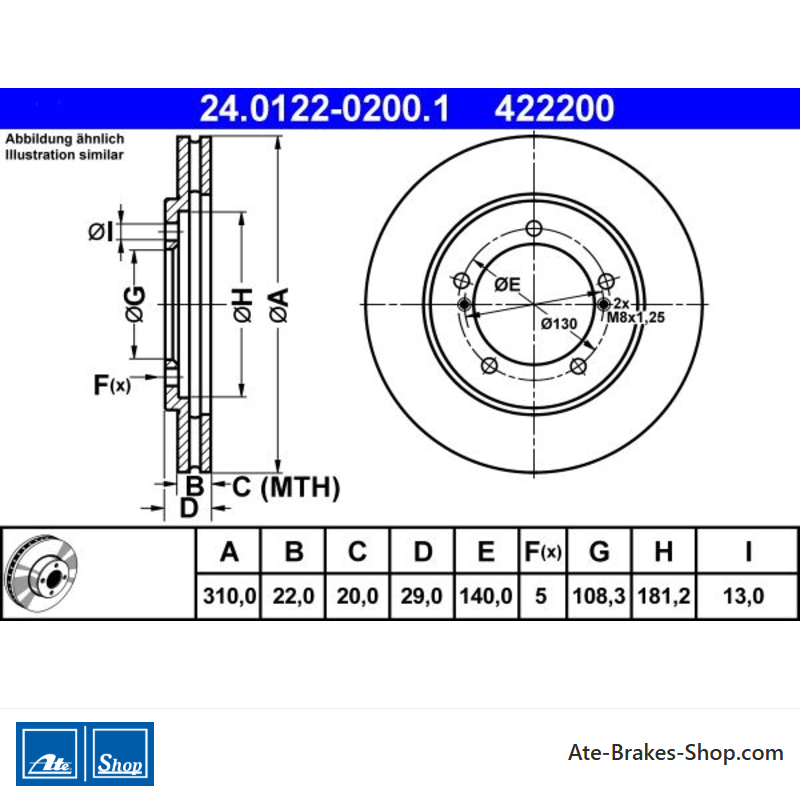

24.0122-0200.1

Datasheet

Artikelstatus
Bestelbaar
Automerk
Suzuki
Handelsnummer
422200
Land van Herkomst
Italië
Hoogte
29,0
Buitendiameter [mm]
310,0
Remschijfdikte [mm]
22,0
Type remschijf
Geventileerd
Aantal boltgaten
5
Diameter van het schroefgat [mm]
140,0
Centreringsdiameter [mm]
108,3
Binnendiameter [mm]
181,2
Bordiameter [mm]
13,0
Minimale dikte [mm]
20,0

Specifieke referenties

ean13
4006633113120
MPN
2401220200102
