ATE Disco de freno original de 2 piezas (24012202001) para Suzuki
130,68 €
(impuestos inc.)
108,00 € fiscales excl.
Número de parte:
ATE 24.0122-0200.1
(240122-02001)
- Diámetro exterior [mm]: 310,0
- Diámetro interior [mm]: 181,2
- Grosor del disco de freno [mm]: 22,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número comercial: 422200
Información logística:
- Código Ean: 4006633113120
- Peso: 12.10kg
Specification of ATE 24.0122-0200.1 / 240122-02001 / 24012202001:
| OE Number | Reference info |
| SUZUKI 55211-65D11 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55211-65D12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI GRAND VITARA I (FT, HT) Construction Year from 199808 Fitting Position Front Axle | 1998-03 - 2003-07 | 69 | 94 | 1590 | Closed Off-Road Vehicle |
| SUZUKI GRAND VITARA I (FT, HT) Vehicle Equipment Line/Trim Level Grand Escudo Fitting Position Front Axle | 2003-09 - 2005-09 | 71 | 97 | 1590 | Closed Off-Road Vehicle |
| SUZUKI GRAND VITARA I (FT, HT) Fitting Position Front Axle | 1998-03 - 2003-07 | 94 | 128 | 1995 | Closed Off-Road Vehicle |
| SUZUKI GRAND VITARA I (FT, HT) Fitting Position Front Axle | 2001-04 - 2003-07 | 116 | 158 | 2493 | Closed Off-Road Vehicle |
| SUZUKI GRAND VITARA I (FT, HT) Construction Year to 200009 Fitting Position Front Axle | 1998-04 - 2003-07 | 106 | 144 | 2493 | Closed Off-Road Vehicle |
| SUZUKI GRAND VITARA I (FT, HT) Fitting Position Front Axle | 2001-09 - 2003-07 | 127 | 173 | 2736 | Closed Off-Road Vehicle |
| SUZUKI GRAND VITARA I (FT, HT) Construction Year to 200509 Fitting Position Front Axle | 2003-09 - 2006-08 | 135 | 184 | 2736 | Closed Off-Road Vehicle |
| SUZUKI GRAND VITARA I (FT, HT) Fitting Position Front Axle | 2003-04 - 2003-07 | 135 | 184 | 2736 | Closed Off-Road Vehicle |
| SUZUKI GRAND VITARA I (FT, HT) Fitting Position Front Axle | 2000-04 - 2005-09 | 63 | 86 | 1998 | Closed Off-Road Vehicle |
| SUZUKI GRAND VITARA I (FT, HT) Fitting Position Front Axle | 1998-03 - 2003-07 | 64 | 87 | 1998 | Closed Off-Road Vehicle |
| SUZUKI GRAND VITARA I (FT, HT) Fitting Position Front Axle | 2001-02 - 2003-12 | 80 | 109 | 1997 | Closed Off-Road Vehicle |
| SUZUKI GRAND VITARA I (FT, HT) Fitting Position Front Axle | 2001-07 - 2005-09 | 80 | 109 | 1997 | Closed Off-Road Vehicle |
| SUZUKI GRAND VITARA I Open Off-Road Vehicle (GT) Construction Year from 199808 Fitting Position Front Axle | 1998-03 - 2003-07 | 69 | 94 | 1590 | Open Off-Road Vehicle |

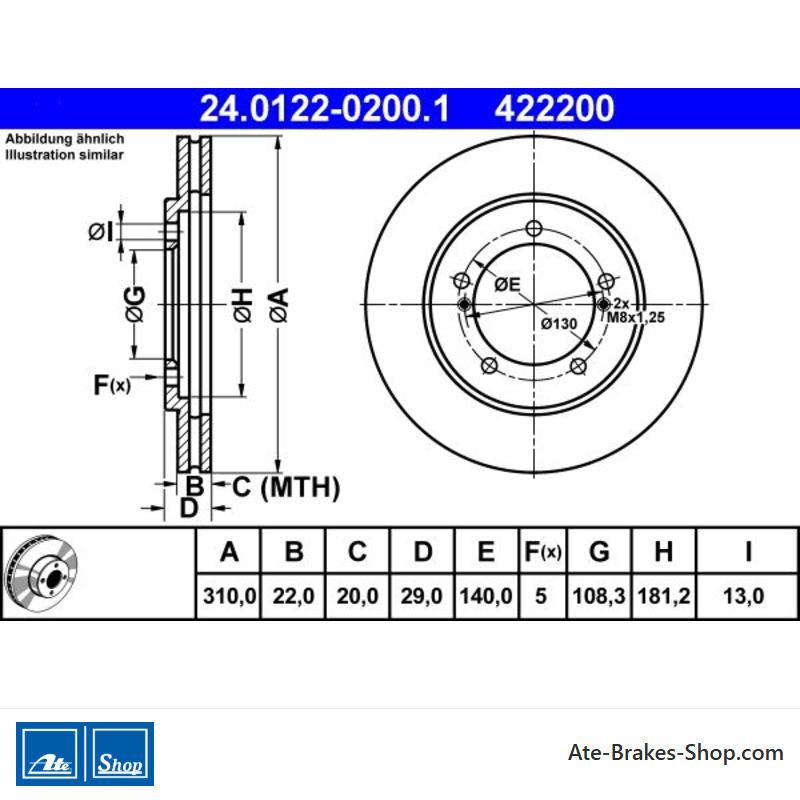

24.0122-0200.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Suzuki
- Número de Comercio
- 422200
- País de origen
- Italia
- Altura
- 29,0
- Diámetro exterior [mm]
- 310,0
- Grosor del disco de freno [mm]
- 22,0
- Tipo de disco de freno
- Ventilado
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 140,0
- Diámetro de centrado [mm]
- 108,3
- Diámetro interior [mm]
- 181,2
- Diámetro del diámetro del diámetro [mm]
- 13,0
- Espesor mínimo [mm]
- 20,0
Referencias específicas
- ean13
- 4006633113120
- MPN
- 2401220200102
ATE 24.0122-0200.1
(240122-02001)
- Diámetro exterior [mm]: 310,0
- Diámetro interior [mm]: 181,2
- Grosor del disco de freno [mm]: 22,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número comercial: 422200
