ATE Original-2-teilige Bremsscheibe (24012401681) für Ford

119,79 € (inkl. MwSt.)

99,00 € Steuerexzl.

Teilenummer:

ATE 24.0124-0168.1
(240124-01681)

  • Außendurchmesser [mm]: 294,0
  • Innendurchmesser [mm]: 136,0
  • Bremsscheibendicke [mm]: 24,5
  • Anzahl der Bolzenlöcher: 5
  • 2 Teile Bremsscheiben
  • Handelsnummer: 424168
Logistische Informationen:
82,0Klicken Sie hier für detaillierte Informationen.
  • Ean-Code: 4006633102100
  • Gewicht: 14.81kg
Menge

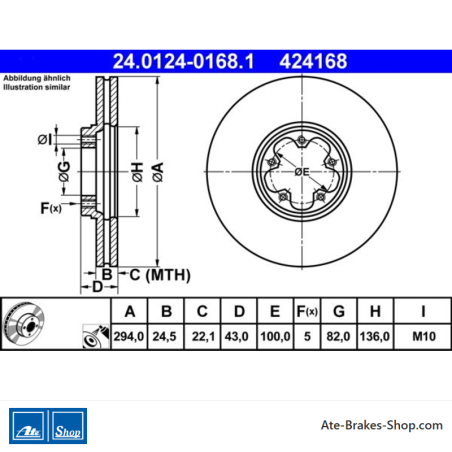

Specification of ATE 24.0124-0168.1 / 240124-01681 / 24012401681:

OE NumberReference info
FORD 4041428Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
FORD 1387781Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
FORD 1568640Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
FORD 1738815Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
FORD YC1J-1125-B2BPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
FORD YC1W-1125-B1APlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
FORD YC1W-1125-B1BPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
FORD YC1W-1125-BAPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
FORD TRANSIT Van (FA_ _)

Vehicle type 330/350

Fitting Position Front Axle		2001-03 - 2006-031051432295Van
FORD TRANSIT Van (FA_ _)

Fitting Position Front Axle		2001-04 - 2006-051071462295Van
FORD TRANSIT Van (FA_ _)

Vehicle type 330/350

Fitting Position Front Axle		2000-08 - 2006-0555751998Van
FORD TRANSIT Van (FA_ _)

Vehicle type 330/350

Fitting Position Front Axle		2000-08 - 2006-0563861998Van
FORD TRANSIT Van (FA_ _)

Vehicle type 330/350

Fitting Position Front Axle		2000-08 - 2006-05741001998Van
FORD TRANSIT Van (FA_ _)

Vehicle type 330/350

Fitting Position Front Axle		2002-08 - 2006-05921251998Van
FORD TRANSIT Van (FA_ _)

Vehicle type 330/350

Fitting Position Front Axle		2000-08 - 2003-0855752402Van
FORD TRANSIT Van (FA_ _)

Fitting Position Front Axle		2000-01 - 2006-0555752402Van
FORD TRANSIT Van (FA_ _)

Fitting Position Front Axle		2000-01 - 2006-0566902402Van
FORD TRANSIT Van (FA_ _)

Vehicle type 330/350

Fitting Position Front Axle		2004-03 - 2006-05851152402Van
FORD TRANSIT Van (FA_ _)

Fitting Position Front Axle		2000-01 - 2006-05881202402Van
FORD TRANSIT Van (FA_ _)

Vehicle type 330/350

Fitting Position Front Axle		2001-07 - 2006-05921252402Van
FORD TRANSIT Van (FA_ _)

Fitting Position Front Axle		2004-03 - 2006-051011372402Van
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)

Fitting Position Front Axle		2001-04 - 2006-051071462295Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)

Vehicle type 330/350

Fitting Position Front Axle		2000-08 - 2006-0555751998Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)

Vehicle type 330/350

Fitting Position Front Axle		2000-08 - 2006-0563861998Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)

Vehicle type 330/350

Fitting Position Front Axle		2000-08 - 2006-05741001998Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)

Vehicle type 330/350

Fitting Position Front Axle		2002-08 - 2006-05921251998Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)

Fitting Position Front Axle		2000-01 - 2006-0555752402Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)

Fitting Position Front Axle		2000-01 - 2006-0566902402Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)

Fitting Position Front Axle		2004-03 - 2006-05851152402Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)

Fitting Position Front Axle		2000-01 - 2006-05881202402Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)

Fitting Position Front Axle		2001-07 - 2006-05921252402Platform/Chassis
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)

Fitting Position Front Axle		2004-03 - 2006-051011372402Platform/Chassis
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Vehicle type 330/350

Fitting Position Front Axle		2000-08 - 2006-0555751998Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Vehicle type 330/350

Fitting Position Front Axle		2000-08 - 2006-0563861998Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Vehicle type 330/350

Fitting Position Front Axle		2000-08 - 2006-05741001998Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Vehicle type 330/350

Fitting Position Front Axle		2002-08 - 2006-05921251998Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Front Axle		2000-08 - 2006-051071462295Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Front Axle		2000-01 - 2006-0555752402Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Front Axle		2000-01 - 2006-0566902402Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Front Axle		2004-03 - 2006-05851152402Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Front Axle		2000-01 - 2006-05881202402Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Front Axle		2001-07 - 2006-05921252402Bus
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Fitting Position Front Axle		2004-03 - 2006-051011372402Bus
FORD TRANSIT TOURNEO Bus (FC_ _)

Vehicle type 330/350

Fitting Position Front Axle		2000-06 - 2003-0855751998Bus
FORD TRANSIT TOURNEO Bus (FC_ _)

Vehicle type 330/350

Fitting Position Front Axle		2000-06 - 2005-03741011998Bus
FORD TRANSIT TOURNEO Bus (FC_ _)

Vehicle type 330/350

Fitting Position Front Axle		2002-03 - 2006-03921251998Bus
24.0124-0168.1

Datenblatt

Artikelstatus
Bestellbar
Automarke
Ford
Handelsnummer
424168
Herkunftsland
China
Höhe
43,0
Außendurchmesser [mm]
294,0
Bremsscheibendicke [mm]
24,5
Bremsscheibentyp
Entlüftet
Oberfläche
Coated
Anzahl der Schraublöcher
5
Bolzenlochdurchmesser [mm]
100,0
Zentrierungsdurchmesser [mm]
82,0
Innendurchmesser [mm]
136,0
Gewindegröße
M10
Mindestdicke [mm]
22,1

Spezifische Referenzen

ean13
4006633102100
Hersteller-Teilenummer (MPN)
2401240168102
