ATE Originele 2-delige remschijf (24012401681) voor Ford
€ 119,79
(incl. btw)
€ 99,00 belastingexcl.
Onderdeelnummer:
ATE 24.0124-0168.1
(240124-01681)
- Buitendiameter [mm]: 294,0
- Binnendiameter [mm]: 136,0
- Remschijfdikte [mm]: 24,5
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 424168
Logistieke informatie:
- Ean Code: 4006633102100
- Gewicht: 14.81kg
Specification of ATE 24.0124-0168.1 / 240124-01681 / 24012401681:
| OE Number | Reference info |
| FORD 4041428 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1387781 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1568640 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1738815 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD YC1J-1125-B2B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD YC1W-1125-B1A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD YC1W-1125-B1B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD YC1W-1125-BA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2001-03 - 2006-03 | 105 | 143 | 2295 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Front Axle | 2001-04 - 2006-05 | 107 | 146 | 2295 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2003-08 | 55 | 75 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 55 | 75 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 66 | 90 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2004-03 - 2006-05 | 85 | 115 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 88 | 120 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2001-07 - 2006-05 | 92 | 125 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Front Axle | 2004-03 - 2006-05 | 101 | 137 | 2402 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2001-04 - 2006-05 | 107 | 146 | 2295 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 330/350 Fitting Position Front Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 55 | 75 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 66 | 90 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2004-03 - 2006-05 | 85 | 115 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 88 | 120 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2001-07 - 2006-05 | 92 | 125 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2004-03 - 2006-05 | 101 | 137 | 2402 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2000-08 - 2006-05 | 107 | 146 | 2295 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 55 | 75 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 66 | 90 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2004-03 - 2006-05 | 85 | 115 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 88 | 120 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2001-07 - 2006-05 | 92 | 125 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2004-03 - 2006-05 | 101 | 137 | 2402 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-06 - 2003-08 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-06 - 2005-03 | 74 | 101 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2002-03 - 2006-03 | 92 | 125 | 1998 | Bus |

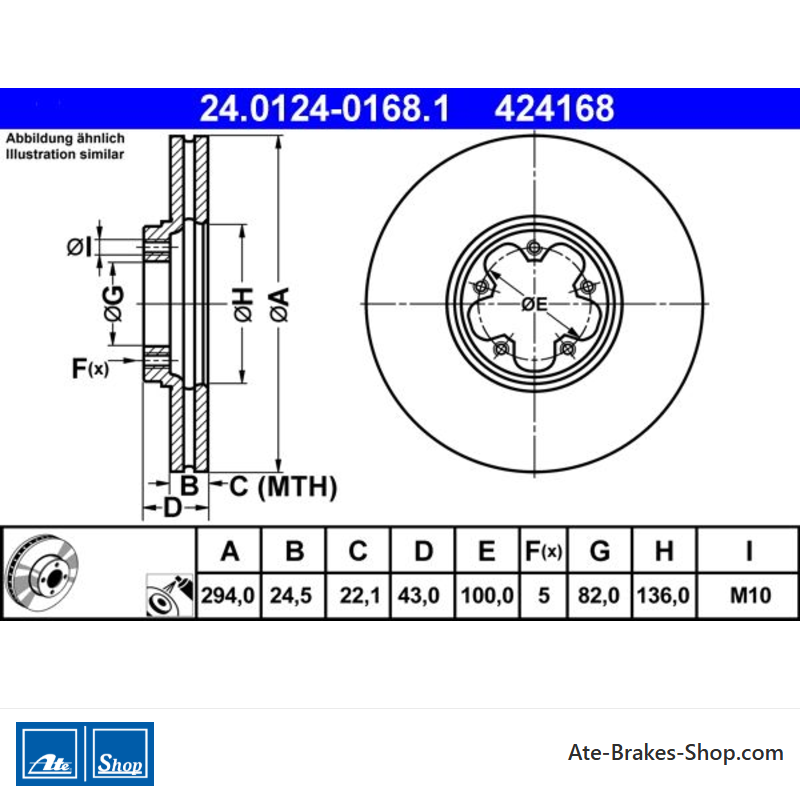

24.0124-0168.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Ford
- Handelsnummer
- 424168
- Land van Herkomst
- China
- Hoogte
- 43,0
- Buitendiameter [mm]
- 294,0
- Remschijfdikte [mm]
- 24,5
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 82,0
- Binnendiameter [mm]
- 136,0
- Draadmaat
- M10
- Minimale dikte [mm]
- 22,1
Specifieke referenties
- ean13
- 4006633102100
- MPN
- 2401240168102
ATE 24.0124-0168.1
(240124-01681)
- Buitendiameter [mm]: 294,0
- Binnendiameter [mm]: 136,0
- Remschijfdikte [mm]: 24,5
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 424168
