ATE Disco de freno original de 2 piezas (24012401681) para Ford
119,79 €
(impuestos inc.)
99,00 € fiscales excl.
Número de parte:
ATE 24.0124-0168.1
(240124-01681)
- Diámetro exterior [mm]: 294,0
- Diámetro interior [mm]: 136,0
- Grosor del disco de freno [mm]: 24,5
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 424168
Información logística:
- Código Ean: 4006633102100
- Peso: 14.81kg
Specification of ATE 24.0124-0168.1 / 240124-01681 / 24012401681:
| OE Number | Reference info |
| FORD 4041428 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1387781 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1568640 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1738815 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD YC1J-1125-B2B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD YC1W-1125-B1A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD YC1W-1125-B1B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD YC1W-1125-BA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2001-03 - 2006-03 | 105 | 143 | 2295 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Front Axle | 2001-04 - 2006-05 | 107 | 146 | 2295 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2003-08 | 55 | 75 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 55 | 75 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 66 | 90 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2004-03 - 2006-05 | 85 | 115 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 88 | 120 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 330/350 Fitting Position Front Axle | 2001-07 - 2006-05 | 92 | 125 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Front Axle | 2004-03 - 2006-05 | 101 | 137 | 2402 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2001-04 - 2006-05 | 107 | 146 | 2295 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 330/350 Fitting Position Front Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 55 | 75 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 66 | 90 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2004-03 - 2006-05 | 85 | 115 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 88 | 120 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2001-07 - 2006-05 | 92 | 125 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Fitting Position Front Axle | 2004-03 - 2006-05 | 101 | 137 | 2402 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2000-08 - 2006-05 | 107 | 146 | 2295 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 55 | 75 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 66 | 90 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2004-03 - 2006-05 | 85 | 115 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2000-01 - 2006-05 | 88 | 120 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2001-07 - 2006-05 | 92 | 125 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Front Axle | 2004-03 - 2006-05 | 101 | 137 | 2402 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-06 - 2003-08 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2000-06 - 2005-03 | 74 | 101 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 330/350 Fitting Position Front Axle | 2002-03 - 2006-03 | 92 | 125 | 1998 | Bus |

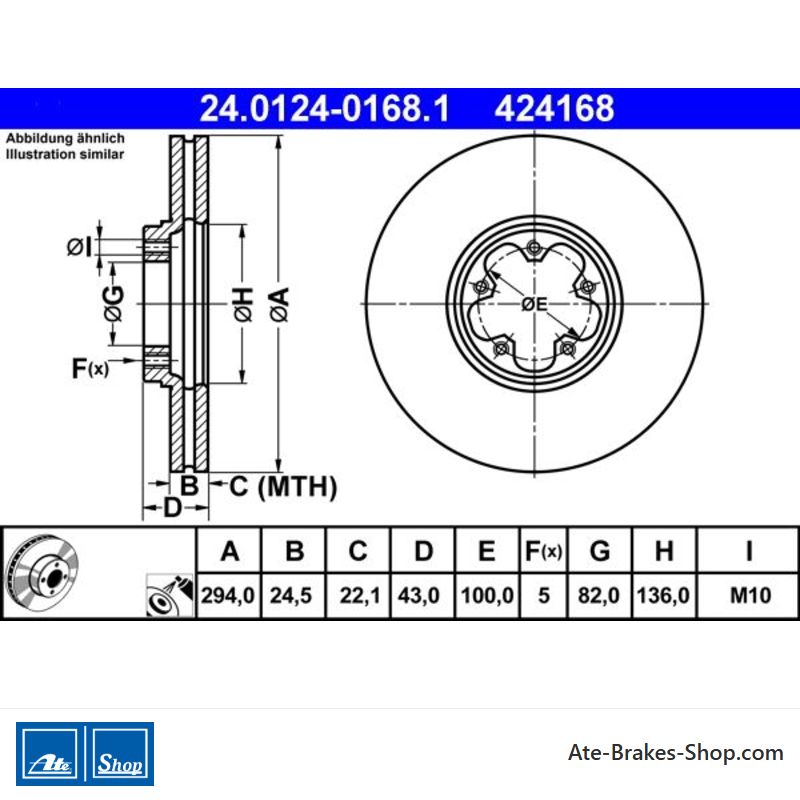

24.0124-0168.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Ford
- Número de Comercio
- 424168
- País de origen
- China
- Altura
- 43,0
- Diámetro exterior [mm]
- 294,0
- Grosor del disco de freno [mm]
- 24,5
- Tipo de disco de freno
- Ventilado
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de centrado [mm]
- 82,0
- Diámetro interior [mm]
- 136,0
- Tamaño del hilo
- M10
- Espesor mínimo [mm]
- 22,1
Referencias específicas
- ean13
- 4006633102100
- MPN
- 2401240168102
ATE 24.0124-0168.1
(240124-01681)
- Diámetro exterior [mm]: 294,0
- Diámetro interior [mm]: 136,0
- Grosor del disco de freno [mm]: 24,5
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 424168
