ATE pastillas de freno cerámicas originales (13047073242) para Opel
72,60 €
(impuestos inc.)
60,00 € fiscales excl.
Número de parte:
ATE 13.0470-7324.2
(130470-73242)

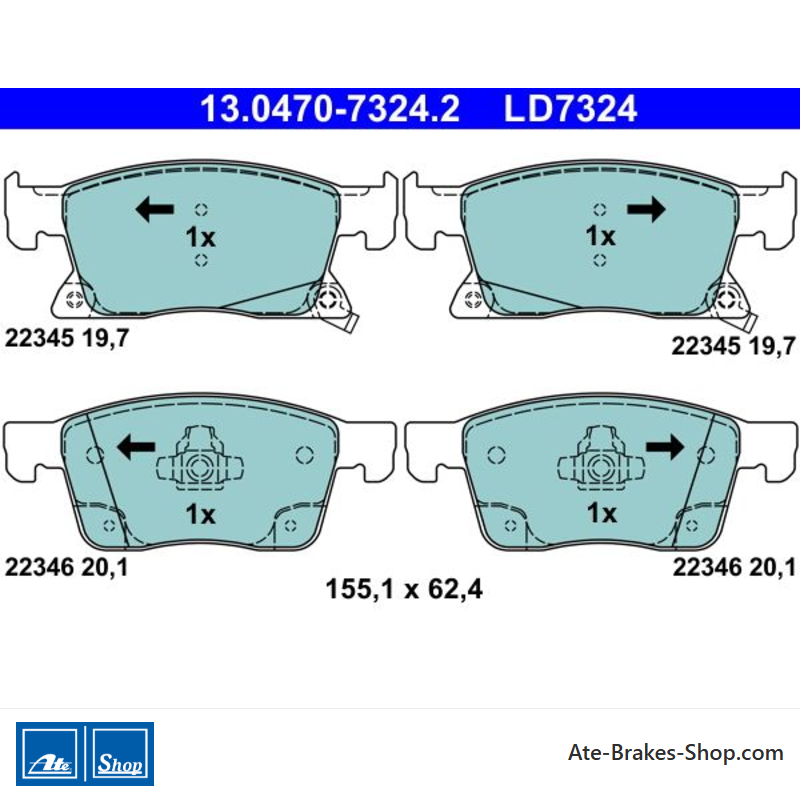

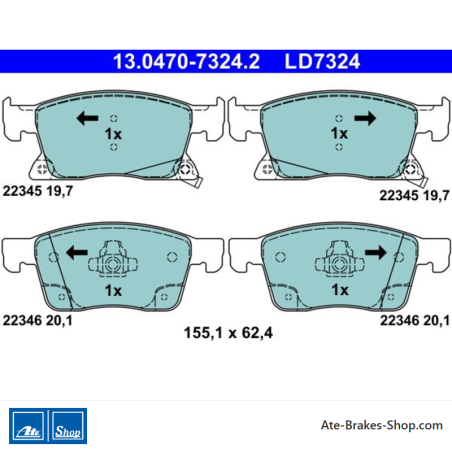

- Ancho [mm]: 155,1
- Altura [mm]: 62,4
- Espesor 1 [mm]: 19,7, Espesor 2 [mm]: 20,1
- Contacto de advertencia de desgaste: con advertencia acústica de desgaste
- Sistema de frenos: ATE
- Número de oficio: LD7324
- Código Ean: 4006633440462
- Peso: 2.27kg
Specification of ATE 13.0470-7324.2 / 130470-73242 / 13047073242:
| OE Number | Reference info |
| OPEL 13478301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 95526567 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 13478301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-06 - 2019-08 | 77 | 105 | 999 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2018-06 - 2019-08 | 66 | 90 | 999 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 81 | 110 | 1199 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 96 | 131 | 1199 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 107 | 145 | 1199 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 107 | 145 | 1342 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-06 - 2018-08 | 74 | 100 | 1399 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2017-10 - 2018-05 | 81 | 110 | 1399 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-06 - 2019-08 | 92 | 125 | 1399 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-10 - 2019-08 | 110 | 150 | 1399 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-11 - 2019-02 | 147 | 200 | 1598 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 77 | 105 | 1496 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 90 | 122 | 1496 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-10 - 2018-05 | 70 | 95 | 1598 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-06 - 2019-08 | 81 | 110 | 1598 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-06 - 2019-08 | 100 | 136 | 1598 | Hatchback |
| OPEL ASTRA K (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2018-07 - 2019-02 | 110 | 150 | 1598 | Hatchback |
| OPEL ASTRA K (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2015-11 - 2018-05 | 118 | 160 | 1598 | Hatchback |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2018-06 - 2019-08 | 66 | 90 | 999 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2018-06 - 2019-08 | 77 | 105 | 999 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-12 | 81 | 110 | 1199 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-12 | 96 | 131 | 1199 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-12 | 107 | 145 | 1199 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2018-05 | 74 | 100 | 1399 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2017-08 - 2018-05 | 81 | 110 | 1399 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2019-08 | 92 | 125 | 1399 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-12 | 107 | 145 | 1342 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2019-08 | 110 | 150 | 1399 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-12 | 77 | 105 | 1496 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-12 | 90 | 122 | 1496 | Estate |
| OPEL ASTRA K Sports Tourer (B16) Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2018-07 - 2019-02 | 110 | 150 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2019-02 | 147 | 200 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2018-05 | 70 | 95 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2019-08 | 81 | 110 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2019-08 | 100 | 136 | 1598 | Estate |
| OPEL ASTRA K Sports Tourer (B16) for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2016-04 - 2018-05 | 118 | 160 | 1598 | Estate |
| OPEL ASTRA K Hatchback Van for brake disc diameter [mm] 300 mm Fitting Position Front Axle | 2018-04 - 2019-08 | 100 | 136 | 1598 | Hatchback Van |
| OPEL ASTRA K Estate Van Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2019-08 - 2021-09 | 77 | 105 | 1496 | Estate Van |
| OPEL ASTRA K Estate Van Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2018-05 - 2019-08 | 77 | 105 | 999 | Estate Van |
| OPEL ASTRA K Estate Van Fitting Position Front Axle for brake disc diameter [mm] 300 mm | 2018-06 - 2021-09 | 110 | 150 | 1399 | Estate Van |
13.0470-7324.2
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Opel
- Número de Comercio
- LD7324
- Sistema de frenos
- ATE
- País de origen
- EU
- Indicador de desgaste
- Acústica
- Anchura
- 155,1
- Altura
- 62,4
- Grosor
- 19,7
20,1 - Número de indicadores de desgaste
- 2 por eje
- Permitido hasta la capacidad del vehículo
- 225 kW
Referencias específicas
- ean13
- 4006633440462
- MPN
- 1304707324202
ATE 13.0470-7324.2
(130470-73242)
- Ancho [mm]: 155,1
- Altura [mm]: 62,4
- Espesor 1 [mm]: 19,7, Espesor 2 [mm]: 20,1
- Contacto de advertencia de desgaste: con advertencia acústica de desgaste
- Sistema de frenos: ATE
- Número de oficio: LD7324
