ATE pastillas de freno originales (13046038622) para Abarth, Fiat
43,56 €
(impuestos inc.)
36,00 € fiscales excl.
Número de parte:

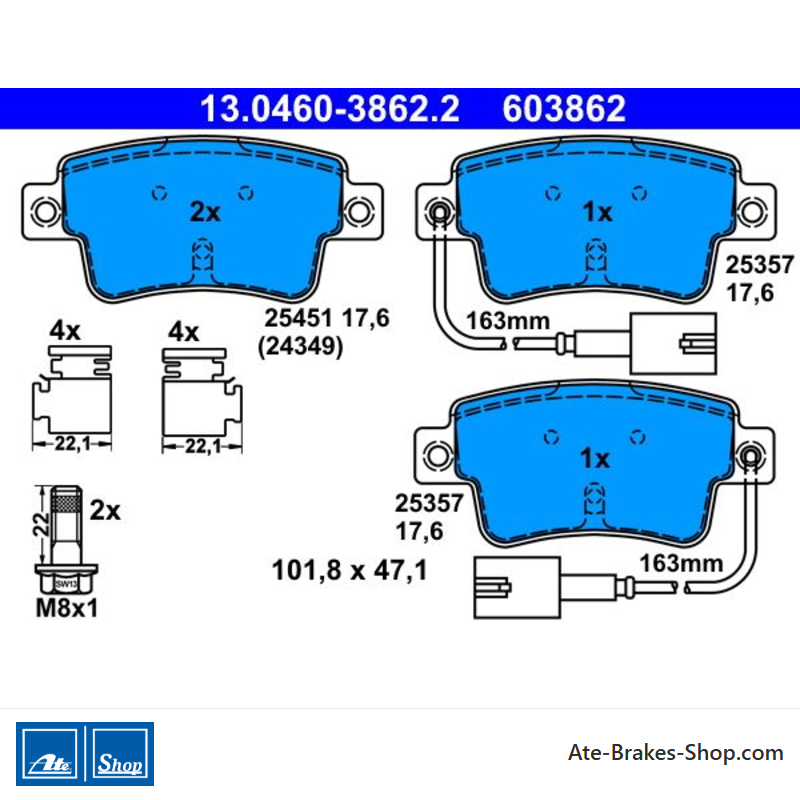

ATE 13.0460-3862.2
(130460-38622)
- Ancho [mm]: 101,8
- Altura [mm]: 47,1
- Grosor [mm]: 17,6
- Contacto de advertencia de uso: incluyendo contacto de advertencia de uso
- Sistema de frenos: Bosch
- Número de intercambio: 603862
- Código Ean: 4006633376549
- Peso: 0.91kg
Specification of ATE 13.0460-3862.2 / 130460-38622 / 13046038622:
| OE Number | Reference info |
| FIAT 77365886 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365464 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ABARTH PUNTO Fitting Position Rear Axle | 2012-03 - | 120 | 163 | 1368 | Hatchback |
| ABARTH PUNTO Fitting Position Rear Axle | 2012-03 - | 132 | 180 | 1368 | Hatchback |
| ABARTH PUNTO EVO Fitting Position Rear Axle | 2009-10 - 2012-02 | 120 | 163 | 1368 | Hatchback |
| FIAT PUNTO (188_) Construction Year from 200910 Fitting Position Rear Axle | 2007-08 - 2012-03 | 44 | 60 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 63 | 86 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 63 | 86 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2013-12 - | 74 | 101 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2013-07 - | 77 | 105 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2014-02 - | 49 | 67 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 51 | 69 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 55 | 75 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 77 | 105 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 99 | 135 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 55 | 75 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2013-12 - | 59 | 80 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 62 | 84 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2018-05 - | 66 | 90 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 70 | 95 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 48 | 65 | 1242 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 51 | 69 | 1242 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 200910 Fitting Position Rear Axle | 2009-07 - 2012-02 | 55 | 75 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 57 | 77 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-06 - 2012-02 | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 77 | 105 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 99 | 135 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2008-07 - 2012-02 | 51 | 69 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 55 | 75 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 62 | 84 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 66 | 90 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 70 | 95 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 88 | 120 | 1598 | Hatchback |
| FIAT PUNTO Hatchback Van (199_) Construction Year from 200910 Fitting Position Rear Axle | 2009-03 - | 57 | 78 | 1368 | Hatchback Van |
| FIAT PUNTO Hatchback Van (199_) Construction Year from 200910 Fitting Position Rear Axle | 2009-03 - | 70 | 95 | 1248 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Fitting Position Rear Axle | 2009-03 - 2012-02 | 57 | 78 | 1368 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Fitting Position Rear Axle | 2009-03 - 2012-02 | 55 | 75 | 1248 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Fitting Position Rear Axle | 2009-03 - 2012-02 | 66 | 90 | 1248 | Hatchback Van |
13.0460-3862.2
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Abarth
Fiat - Número de Comercio
- 603862
- Sistema de frenos
- Bosch
- País de origen
- QU
- Indicador de desgaste
- Electrónica
Incluido - Información adicional
- con accesorios
con tornillos de pinza de freno - Anchura
- 101,8
- Altura
- 47,1
- Grosor
- 17,6
- Número de tornillos/tornillos
- 2
- Número de indicadores de desgaste
- 2 por eje
- Longitud del indicador de advertencia
- 163 mm
Referencias específicas
- ean13
- 4006633376549
- MPN
- 1304603862202
ATE 13.0460-3862.2
(130460-38622)
- Ancho [mm]: 101,8
- Altura [mm]: 47,1
- Grosor [mm]: 17,6
- Contacto de advertencia de uso: incluyendo contacto de advertencia de uso
- Sistema de frenos: Bosch
- Número de intercambio: 603862
