ATE pastillas de freno originales (13046038862) para MAN, Volkswagen (VW)
65,34 €
(impuestos inc.)
54,00 € fiscales excl.

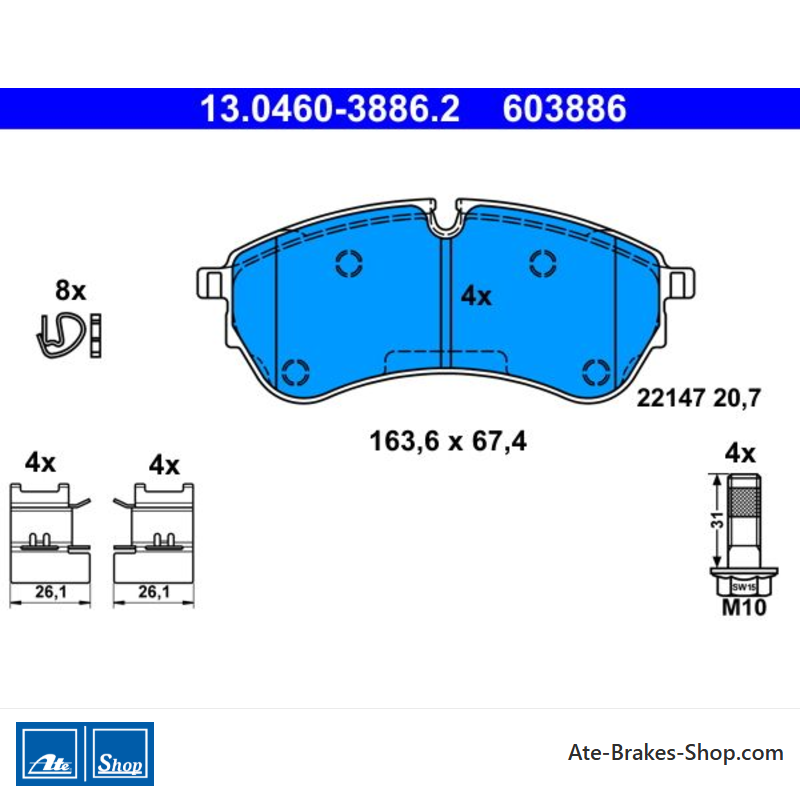

Número de parte:
ATE 13.0460-3886.2
(130460-38862)
- Ancho [mm]: 163,6
- Altura [mm]: 67,4
- Grosor [mm]: 20,7
- Contacto de advertencia de desgaste: preparado para el indicador de advertencia de desgaste; excepto contacto de advertencia de desgaste
- Número de intercambio: 603886
- Código Ean: 4006633479318
- Peso: 2.67kg
Specification of ATE 13.0460-3886.2 / 130460-38862 / 13046038862:
| OE Number | Reference info |
| MAN 65508206000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VW 2N0 698 151 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VW 2N0698151 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 2N0 698 151 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 2N0698151 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAN TGE Van Fitting Position Front Axle | 2018-07 - | 100 | 136 | CC | Van |
| MAN TGE Van Fitting Position Front Axle for PR number 1LA | 2017-02 - 2024-06 | 75 | 102 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LB | 2017-02 - 2024-06 | 75 | 102 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LB Tyres for dual tyres | 2017-08 - 2021-12 | 90 | 122 | 1968 | Van |
| MAN TGE Van Fitting Position Front Axle for PR number 1LA | 2017-08 - 2021-12 | 90 | 122 | 1968 | Van |
| MAN TGE Van Fitting Position Front Axle for PR number 1LA | 2017-02 - | 103 | 140 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LB | 2017-02 - | 103 | 140 | 1968 | Van |
| MAN TGE Van Fitting Position Front Axle for PR number 1LA | 2017-10 - | 103 | 140 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LB Tyres for dual tyres | 2017-10 - | 103 | 140 | 1968 | Van |
| MAN TGE Van Fitting Position Front Axle for PR number 1LA | 2017-04 - | 103 | 140 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LB | 2017-04 - | 103 | 140 | 1968 | Van |
| MAN TGE Van Fitting Position Front Axle for PR number 1LA | 2022-11 - | 120 | 163 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LB | 2022-11 - | 120 | 163 | 1968 | Van |
| MAN TGE Van Fitting Position Front Axle for PR number 1LA | 2023-03 - | 120 | 163 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LB Tyres for dual tyres | 2023-03 - | 120 | 163 | 1968 | Van |
| MAN TGE Van Fitting Position Front Axle for PR number 1LA | 2022-11 - | 120 | 163 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LB | 2022-11 - | 120 | 163 | 1968 | Van |
| MAN TGE Van Fitting Position Front Axle for PR number 1LA | 2017-02 - | 130 | 177 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LB | 2017-02 - | 130 | 177 | 1968 | Van |
| MAN TGE Van Fitting Position Front Axle for PR number 1LA | 2017-05 - 2024-06 | 130 | 177 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LB Tyres for dual tyres | 2017-05 - 2024-06 | 130 | 177 | 1968 | Van |
| MAN TGE Van Fitting Position Front Axle for PR number 1LA | 2017-03 - | 130 | 177 | 1968 | Van |
| MAN TGE Van Fitting Position Rear Axle for PR number 1LB | 2017-03 - | 130 | 177 | 1968 | Van |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Front Axle for PR number 1LA | 2016-11 - 2024-06 | 75 | 102 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LB | 2016-11 - 2024-06 | 75 | 102 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Front Axle for PR number 1LA | 2017-08 - 2021-12 | 90 | 122 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LB Tyres for dual tyres | 2017-08 - 2021-12 | 90 | 122 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Front Axle for PR number 1LA | 2016-11 - | 103 | 140 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LB | 2016-11 - | 103 | 140 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Front Axle for PR number 1LA | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LB Tyres for dual tyres | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Front Axle for PR number 1LA | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LB | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Front Axle for PR number 1LA | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LB | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Front Axle for PR number 1LA | 2023-03 - | 120 | 163 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LB Tyres for dual tyres | 2023-03 - | 120 | 163 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Front Axle for PR number 1LA | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LB | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Front Axle for PR number 1LA | 2016-11 - | 130 | 177 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LB | 2016-11 - | 130 | 177 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Front Axle for PR number 1LA | 2017-07 - 2024-06 | 130 | 177 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LB Tyres for dual tyres | 2017-07 - 2024-06 | 130 | 177 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Front Axle for PR number 1LA | 2017-11 - | 130 | 177 | 1968 | Platform/Chassis |
| MAN TGE Platform/Chassis (UZ_) Fitting Position Rear Axle for PR number 1LB | 2017-11 - | 130 | 177 | 1968 | Platform/Chassis |
| MAN TGE Bus Fitting Position Front Axle for PR number 1LA | 2017-02 - 2024-06 | 75 | 102 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LB | 2017-02 - 2024-06 | 75 | 102 | 1968 | Bus |
| MAN TGE Bus Fitting Position Front Axle for PR number 1LA | 2019-01 - 2021-12 | 90 | 122 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LB Tyres for dual tyres | 2019-01 - 2021-12 | 90 | 122 | 1968 | Bus |
| MAN TGE Bus Fitting Position Front Axle for PR number 1LA | 2017-02 - | 103 | 140 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LB | 2017-02 - | 103 | 140 | 1968 | Bus |
| MAN TGE Bus Fitting Position Front Axle for PR number 1LA | 2017-02 - | 103 | 140 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LB | 2017-02 - | 103 | 140 | 1968 | Bus |
| MAN TGE Bus Fitting Position Front Axle for PR number 1LA | 2017-02 - | 130 | 177 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LB | 2017-02 - | 130 | 177 | 1968 | Bus |
| MAN TGE Bus Fitting Position Front Axle for PR number 1LA | 2017-02 - 2024-06 | 130 | 177 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LB Tyres for dual tyres | 2017-02 - 2024-06 | 130 | 177 | 1968 | Bus |
| MAN TGE Bus Fitting Position Front Axle for PR number 1LA | 2017-02 - | 130 | 177 | 1968 | Bus |
| MAN TGE Bus Fitting Position Rear Axle for PR number 1LB | 2017-02 - | 130 | 177 | 1968 | Bus |
| VW CRAFTER Van (SY_, SX_) Fitting Position Front Axle | 2018-07 - | 100 | 136 | CC | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LB Fitting Position Rear Axle | 2016-09 - 2024-06 | 75 | 102 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Front Axle | 2016-09 - 2024-06 | 75 | 102 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Front Axle | 2017-05 - 2024-06 | 80 | 109 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LB Fitting Position Rear Axle | 2017-05 - 2024-06 | 80 | 109 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LB Fitting Position Rear Axle | 2017-08 - 2021-12 | 90 | 122 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Front Axle | 2017-08 - 2021-12 | 90 | 122 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Front Axle | 2016-09 - | 103 | 140 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LB Fitting Position Rear Axle | 2016-09 - | 103 | 140 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Front Axle | 2017-10 - | 103 | 140 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LB Fitting Position Rear Axle | 2017-10 - | 103 | 140 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Front Axle | 2017-04 - | 103 | 140 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LB Fitting Position Rear Axle | 2017-04 - | 103 | 140 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LB Fitting Position Rear Axle | 2022-11 - | 120 | 163 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Front Axle | 2022-11 - | 120 | 163 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Front Axle | 2023-03 - | 120 | 163 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LB Fitting Position Rear Axle | 2023-03 - | 120 | 163 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Front Axle | 2022-11 - | 120 | 163 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LB Fitting Position Rear Axle | 2022-11 - | 120 | 163 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Front Axle | 2016-09 - | 130 | 177 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LB Fitting Position Rear Axle | 2016-09 - | 130 | 177 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LB Fitting Position Rear Axle | 2017-05 - 2024-06 | 130 | 177 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Front Axle | 2017-05 - 2024-06 | 130 | 177 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LA Fitting Position Front Axle | 2017-03 - | 130 | 177 | 1968 | Van |
| VW CRAFTER Van (SY_, SX_) for PR number 1LB Fitting Position Rear Axle | 2017-03 - | 130 | 177 | 1968 | Van |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Front Axle | 2016-11 - 2024-06 | 75 | 102 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LB Fitting Position Rear Axle | 2016-11 - 2024-06 | 75 | 102 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Front Axle | 2017-08 - 2021-12 | 90 | 122 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LB Fitting Position Rear Axle | 2017-08 - 2021-12 | 90 | 122 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LB Fitting Position Rear Axle | 2016-11 - 2024-06 | 80 | 109 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Front Axle | 2016-11 - 2024-06 | 80 | 109 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Front Axle | 2016-11 - | 103 | 140 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LB Fitting Position Rear Axle | 2016-11 - | 103 | 140 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Front Axle | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LB Fitting Position Rear Axle | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LB Fitting Position Rear Axle | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Front Axle | 2017-11 - | 103 | 140 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Front Axle | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LB Fitting Position Rear Axle | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Front Axle | 2023-03 - | 120 | 163 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LB Fitting Position Rear Axle | 2023-03 - | 120 | 163 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LB Fitting Position Rear Axle | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Front Axle | 2022-11 - | 120 | 163 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Front Axle | 2016-11 - | 130 | 177 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LB Fitting Position Rear Axle | 2016-11 - | 130 | 177 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Front Axle | 2017-07 - 2024-06 | 130 | 177 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LB Fitting Position Rear Axle | 2017-07 - 2024-06 | 130 | 177 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LA Fitting Position Front Axle | 2017-11 - | 130 | 177 | 1968 | Platform/Chassis |
| VW CRAFTER Platform/Chassis (SZ_) for PR number 1LB Fitting Position Rear Axle | 2017-11 - | 130 | 177 | 1968 | Platform/Chassis |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LB Fitting Position Rear Axle | 2016-10 - 2024-06 | 75 | 102 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LA Fitting Position Front Axle | 2016-10 - 2024-06 | 75 | 102 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LA Fitting Position Front Axle | 2016-09 - | 103 | 140 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LB Fitting Position Rear Axle | 2016-09 - | 103 | 140 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LA Fitting Position Front Axle | 2017-04 - | 103 | 140 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LB Fitting Position Rear Axle | 2017-04 - | 103 | 140 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LA Fitting Position Front Axle | 2016-09 - | 130 | 177 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LB Fitting Position Rear Axle | 2016-09 - | 130 | 177 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LA Fitting Position Front Axle | 2017-03 - | 130 | 177 | 1968 | Bus |
| VW CRAFTER Bus (SYI, SYJ) for PR number 1LB Fitting Position Rear Axle | 2017-03 - | 130 | 177 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LA Fitting Position Front Axle | 2019-04 - | 103 | 140 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LB Fitting Position Rear Axle | 2019-04 - | 103 | 140 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LB Fitting Position Rear Axle | 2019-04 - | 103 | 140 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LA Fitting Position Front Axle | 2019-04 - | 103 | 140 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LB Fitting Position Rear Axle | 2024-10 - | 120 | 163 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LA Fitting Position Front Axle | 2024-10 - | 120 | 163 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LB Fitting Position Rear Axle | 2024-10 - | 120 | 163 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LA Fitting Position Front Axle | 2024-10 - | 120 | 163 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LA Fitting Position Front Axle | 2019-04 - | 130 | 177 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LB Fitting Position Rear Axle | 2019-04 - | 130 | 177 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LB Fitting Position Rear Axle | 2019-04 - | 130 | 177 | 1968 | Bus |
| VW GRAND CALIFORNIA Camper (SCB, SCC) for PR number 1LA Fitting Position Front Axle | 2019-04 - | 130 | 177 | 1968 | Bus |
13.0460-3886.2
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- HOMBRE
Volkswagen (VW) - Número de Comercio
- 603886
- País de origen
- España
- Indicador de desgaste
- Electrónica
No incluido
Preparado - Información adicional
- con accesorios
con tornillos de pinza de freno - Anchura
- 163,6
- Altura
- 67,4
- Grosor
- 20,7
- Número de tornillos/tornillos
- 4
Referencias específicas
- ean13
- 4006633479318
- MPN
- 1304603886202
ATE 13.0460-3886.2
(130460-38862)
- Ancho [mm]: 163,6
- Altura [mm]: 67,4
- Grosor [mm]: 20,7
- Contacto de advertencia de desgaste: preparado para el indicador de advertencia de desgaste; excepto contacto de advertencia de desgaste
- Número de intercambio: 603886
