ATE Disco de freno asistido original (24032601191) para Ford, asiento, Volkswagen (VW)
177,87 €
(impuestos inc.)
147,00 € fiscales excl.
Número de parte:
ATE 24.0326-0119.1
(240326-01191)
- Diámetro exterior [mm]: 313,0
- Diámetro interior [mm]: 148,0
- Grosor del disco de freno [mm]: 25,9
- Número de agujeros de perno: 5
- Número de intercambio: 526119
Información logística:
- Código Ean: 4006633419260
- Peso: 9.51kg
Specification of ATE 24.0326-0119.1 / 240326-01191 / 24032601191:
| OE Number | Reference info |
| FORD 1108038 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 7M3 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 7M3615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 7M3 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 7M3615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD GALAXY I (WGR) Construction Year to 200604 Fitting Position Front Axle | 2000-04 - 2006-05 | 150 | 204 | 2792 | MPV |
| SEAT ALHAMBRA (7V8, 7V9) Vehicle Identification Number (VIN) from 7M-2-500001 Fitting Position Front Axle | 1997-10 - 2010-03 | 110 | 150 | 1781 | MPV |
| SEAT ALHAMBRA (7V8, 7V9) Fitting Position Front Axle | 2000-06 - 2010-03 | 150 | 204 | 2792 | MPV |
| SEAT ALHAMBRA (7V8, 7V9) Construction Year from 200102 Fitting Position Front Axle | 2000-06 - 2010-03 | 150 | 204 | 2792 | MPV |
| SEAT ALHAMBRA (7V8, 7V9) Construction Year from 200102 Fitting Position Front Axle | 2000-06 - 2010-03 | 85 | 115 | 1896 | MPV |
| SEAT ALHAMBRA (7V8, 7V9) Fitting Position Front Axle | 2005-05 - 2007-05 | 110 | 150 | 1896 | MPV |
| SEAT ALHAMBRA VAN (7V8, 7V9) Fitting Position Front Axle | 2002-06 - 2008-05 | 85 | 116 | 1896 | Box Body/MPV |
| VW SHARAN (7M8, 7M9, 7M6) Vehicle Identification Number (VIN) from 7M-2-000001 Fitting Position Front Axle | 1997-09 - 2010-03 | 110 | 150 | 1781 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Front Axle | 2000-04 - 2010-03 | 150 | 204 | 2792 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Front Axle | 2000-04 - 2010-03 | 150 | 204 | 2792 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Construction Year from 200005 Fitting Position Front Axle | 2000-03 - 2010-03 | 85 | 115 | 1896 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Front Axle | 2005-06 - 2010-03 | 110 | 150 | 1896 | MPV |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-07 - 2003-04 | 62 | 84 | 1968 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-11 - 2003-04 | 81 | 110 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) for PR number 1LB Fitting Position Front Axle | 1992-11 - 2001-11 | 81 | 110 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) for PR number 1LB Fitting Position Front Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1996-05 - 2000-05 | 103 | 140 | 2792 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 2000-06 - 2003-04 | 150 | 204 | 2792 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-07 - 1995-12 | 45 | 61 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1997-08 - 2003-04 | 55 | 75 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-07 - 1998-04 | 57 | 78 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year from 199507 for PR number 1LB Fitting Position Front Axle | 1992-10 - 1998-09 | 57 | 78 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1998-12 - 2003-04 | 65 | 88 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) for PR number 1LB Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 2000-09 - 2003-04 | 111 | 151 | 2461 | Van |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-09 - 2003-04 | 62 | 84 | 1968 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-09 - 2003-06 | 81 | 110 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year from 199507 for PR number 1LB Fitting Position Front Axle | 1992-08 - 2003-04 | 81 | 110 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, for PR number 1LB Fitting Position Front Axle | 1996-07 - 2003-04 | 85 | 115 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1995-11 - 2000-04 | 103 | 140 | 2792 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 2000-04 - 2003-04 | 150 | 204 | 2792 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1997-08 - 2003-04 | 55 | 75 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-09 - 1998-04 | 57 | 78 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year from 199507 for PR number 1LB Fitting Position Front Axle | 1992-10 - 1998-09 | 57 | 78 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1998-05 - 2003-04 | 65 | 88 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, for PR number 1LB Fitting Position Front Axle | 1996-01 - 2003-04 | 75 | 102 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1998-05 - 2003-04 | 111 | 151 | 2461 | Bus |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-07 - 2003-04 | 62 | 84 | 1968 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-11 - 2003-04 | 81 | 110 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year from 199507 for PR number 1LB Fitting Position Front Axle | 1992-11 - 2001-11 | 81 | 110 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D for PR number 1LB Fitting Position Front Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-07 - 1995-12 | 45 | 61 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1997-08 - 2003-04 | 55 | 75 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1990-09 - 1998-04 | 57 | 78 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year from 199507 for PR number 1LB Fitting Position Front Axle | 1992-10 - 1998-09 | 57 | 78 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1998-05 - 2003-04 | 65 | 88 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) from 70-1-000955 for PR number 1LB Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D for PR number 1LB Fitting Position Front Axle | 1998-05 - 2003-04 | 75 | 102 | 2461 | Platform/Chassis |
24.0326-0119.1

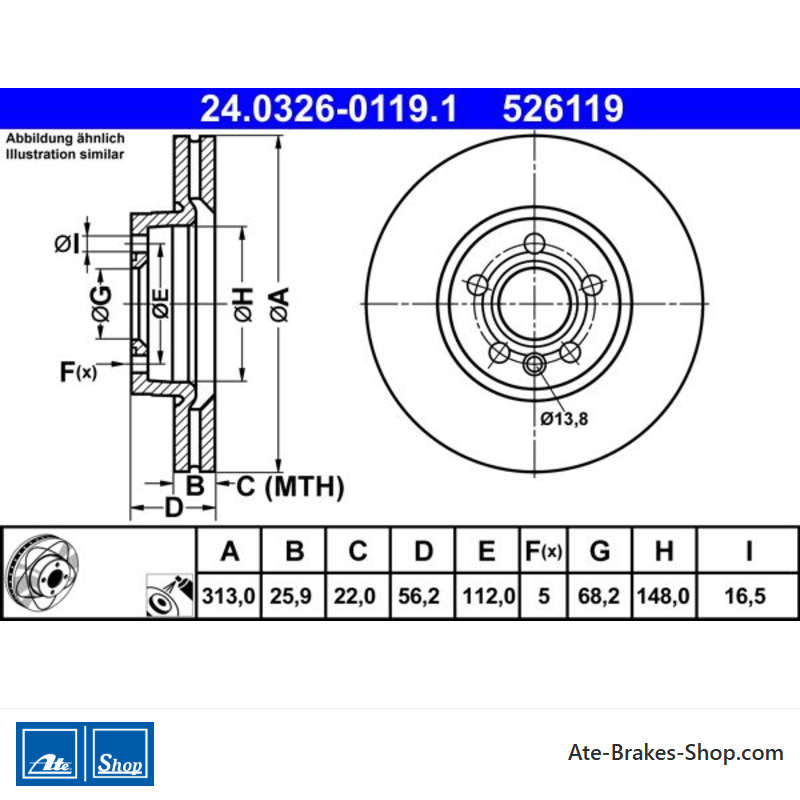

Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Escaño
Ford
Volkswagen (VW) - Número de Comercio
- 526119
- País de origen
- Alemania
- Altura
- 56,2
- Diámetro exterior [mm]
- 313,0
- Grosor del disco de freno [mm]
- 25,9
- Tipo de disco de freno
- Ventilado
- Procesamiento
- Alto en carbono
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 112,0
- Diámetro de centrado [mm]
- 68,2
- Diámetro interior [mm]
- 148,0
- Diámetro del diámetro del diámetro [mm]
- 16,5
- Espesor mínimo [mm]
- 22,0
Referencias específicas
- ean13
- 4006633419260
- MPN
- 2403260119102
ATE 24.0326-0119.1
(240326-01191)
- Diámetro exterior [mm]: 313,0
- Diámetro interior [mm]: 148,0
- Grosor del disco de freno [mm]: 25,9
- Número de agujeros de perno: 5
- Número de intercambio: 526119
