ATE Tambor de freno original de 2 piezas (24022000461) para Citroën, Peugeot, Toyota
116,16 €
(impuestos inc.)
96,00 € fiscales excl.
Número de parte:
ATE 24.0220-0046.1
(240220-00461)
- Diámetro exterior [mm]: 233,0
- Diámetro interior [mm]: 200,0
- Diámetro de la placa de soporte [mm]: 55,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480193
- Código Ean: 4006633295857
- Peso: 7.44kg

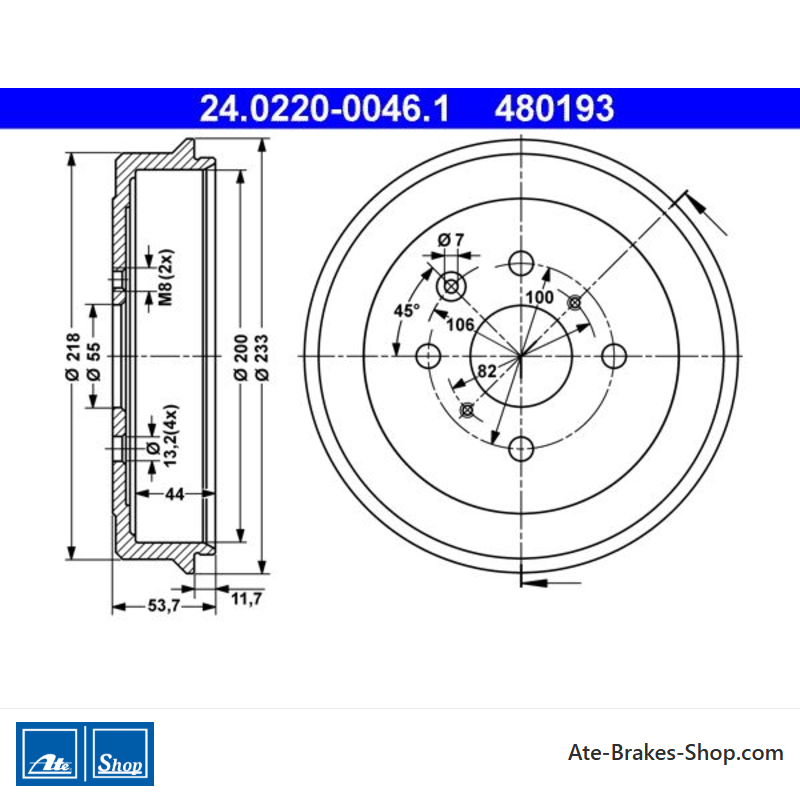

Specification of ATE 24.0220-0046.1 / 240220-00461 / 24022000461:
| OE Number | Reference info |
| CITROËN 4247 48 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424748 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4247 48 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424748 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-0H010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN C1 (PM_, PN_) Construction Year to 201404 Fitting Position Rear Axle | 2005-06 - 2014-09 | 50 | 68 | 998 | Hatchback |
| CITROËN C1 (PM_, PN_) Construction Year to 200812 Fitting Position Rear Axle | 2005-06 - 2014-09 | 40 | 54 | 1398 | Hatchback |
| CITROËN C1 II (PA_, PS_) Fitting Position Rear Axle | 2014-04 - 2018-04 | 51 | 69 | 998 | Hatchback |
| CITROËN C1 II (PA_, PS_) Fitting Position Rear Axle | 2018-06 - 2021-07 | 53 | 72 | 998 | Hatchback |
| CITROËN C1 II (PA_, PS_) Fitting Position Rear Axle | 2014-04 - 2018-04 | 60 | 82 | 1199 | Hatchback |
| PEUGEOT 107 (PM_, PN_) Fitting Position Rear Axle | 2005-06 - 2014-05 | 50 | 68 | 998 | Hatchback |
| PEUGEOT 107 (PM_, PN_) Fitting Position Rear Axle | 2005-06 - 2014-05 | 40 | 54 | 1398 | Hatchback |
| PEUGEOT 108 Fitting Position Rear Axle | 2014-05 - | 51 | 69 | 998 | Hatchback |
| PEUGEOT 108 Fitting Position Rear Axle | 2018-05 - | 53 | 72 | 998 | Hatchback |
| PEUGEOT 108 Fitting Position Rear Axle | 2014-05 - | 60 | 82 | 1199 | Hatchback |
| TOYOTA AYGO (_B1_) Fitting Position Rear Axle | 2005-07 - 2014-05 | 50 | 68 | 998 | Hatchback |
| TOYOTA AYGO (_B1_) Fitting Position Rear Axle | 2005-07 - 2014-05 | 50 | 68 | 998 | Hatchback |
| TOYOTA AYGO (_B1_) Fitting Position Rear Axle | 2005-07 - 2010-08 | 40 | 54 | 1398 | Hatchback |
| TOYOTA AYGO (_B4_) Fitting Position Rear Axle | 2014-05 - | 51 | 69 | 998 | Hatchback |
| TOYOTA AYGO (_B4_) Fitting Position Rear Axle | 2018-03 - | 53 | 72 | 998 | Hatchback |
| TOYOTA AYGO (_B4_) Fitting Position Rear Axle | 2014-05 - | 60 | 82 | 1199 | Hatchback |
| TOYOTA AYGO Hatchback Van (_B1_) Fitting Position Rear Axle | 2005-07 - 2014-05 | 50 | 68 | 998 | Hatchback Van |
24.0220-0046.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Citroën
Peugeot
Toyota - Número de Comercio
- 480193
- País de origen
- China
- Altura
- 53,7
- Diámetro exterior [mm]
- 233,0
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de la placa de soporte [mm]
- 55,0
- Diámetro interior [mm]
- 200,0
- Diámetro del diámetro del diámetro [mm]
- 13,2
- Max. Dimensión de perforación [mm]
- 201,0
- Altura interior del tambor de freno [mm]
- 44,0
Referencias específicas
- ean13
- 4006633295857
- MPN
- 2402200046102
ATE 24.0220-0046.1
(240220-00461)
- Diámetro exterior [mm]: 233,0
- Diámetro interior [mm]: 200,0
- Diámetro de la placa de soporte [mm]: 55,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480193
