ATE Tambor de freno original de 2 piezas (24022030351) para Fiat, Opel
101,64 €
(impuestos inc.)
84,00 € fiscales excl.
Número de parte:
ATE 24.0220-3035.1
(240220-30351)
- Diámetro exterior [mm]: 249,5
- Diámetro interior [mm]: 203,0
- Diámetro de la placa de soporte [mm]: 60,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número comercial: 480300
- Código Ean: 4006633309554
- Peso: 9.38kg
Specification of ATE 24.0220-3035.1 / 240220-30351 / 24022030351:
| OE Number | Reference info |
| FIAT 55701379 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 55703042 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 55704050 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 55704049 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51827488 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51840909 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 68 269 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 568269 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 55701379 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 13423797 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 68 004 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 568004 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 13423797 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 55701379 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 68 004 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 568004 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 68 269 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 568269 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Rear Axle | 2005-10 - | 48 | 65 | 1242 | Hatchback |
| FIAT GRANDE PUNTO (199_) Fitting Position Rear Axle | 2010-09 - | 51 | 69 | 1242 | Hatchback |
| FIAT PUNTO (188_) Fitting Position Rear Axle | 2007-08 - 2012-03 | 44 | 60 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 63 | 86 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 63 | 86 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2013-12 - | 74 | 101 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2013-07 - | 77 | 105 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2014-02 - | 49 | 67 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 51 | 69 | 1242 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 48 | 65 | 1242 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 51 | 69 | 1242 | Hatchback |
| OPEL ADAM (M13) Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 2014-07 - 2018-11 | 66 | 90 | 999 | Hatchback |
| OPEL ADAM (M13) Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 2014-07 - 2018-11 | 85 | 115 | 999 | Hatchback |
| OPEL ADAM (M13) Construction Year from 201301 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 2012-10 - 2019-05 | 51 | 69 | 1229 | Hatchback |
| OPEL ADAM (M13) Construction Year from 201301 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 2012-10 - 2019-05 | 64 | 87 | 1398 | Hatchback |
| OPEL ADAM (M13) Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 2013-07 - 2018-11 | 64 | 87 | 1398 | Hatchback |
| OPEL ADAM (M13) Construction Year from 201301 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 2012-10 - 2019-05 | 74 | 101 | 1398 | Hatchback |
| OPEL ADAM (M13) Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 2014-11 - 2019-05 | 110 | 150 | 1364 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Rear Axle Number of Doors 3 | 2006-07 - 2010-12 | 44 | 60 | 998 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle Number of Doors 3 | 2009-12 - 2014-08 | 48 | 65 | 998 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle Number of Doors 3 | 2009-12 - 2014-08 | 51 | 69 | 1229 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Rear Axle Number of Doors 3 | 2006-07 - 2014-08 | 59 | 80 | 1229 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle Number of Doors 3 | 2006-08 - 2014-08 | 59 | 80 | 1229 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle Number of Doors 3 | 2011-06 - 2014-08 | 61 | 83 | 1229 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle Number of Doors 3 | 2009-12 - 2014-08 | 63 | 86 | 1229 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle Number of Doors 3 | 2011-06 - 2014-08 | 63 | 86 | 1229 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Vehicle Equipment Line/Trim Level ecoFLEX Fitting Position Rear Axle | 2006-07 - 2014-08 | 55 | 75 | 1248 | Hatchback |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 Fitting Position Rear Axle Number of Doors 3 | 2006-08 - 2014-08 | 44 | 60 | 998 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Rear Axle Number of Doors 3 | 2010-01 - 2014-08 | 48 | 65 | 998 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Rear Axle Number of Doors 3 | 2010-01 - 2014-08 | 51 | 69 | 1229 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Rear Axle Number of Doors 3 | 2006-08 - 2014-08 | 59 | 80 | 1229 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Rear Axle Number of Doors 3 | 2010-06 - 2014-08 | 63 | 86 | 1229 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 Vehicle Equipment Line/Trim Level ecoFLEX Fitting Position Rear Axle | 2006-07 - 2014-08 | 55 | 75 | 1248 | Hatchback Van |

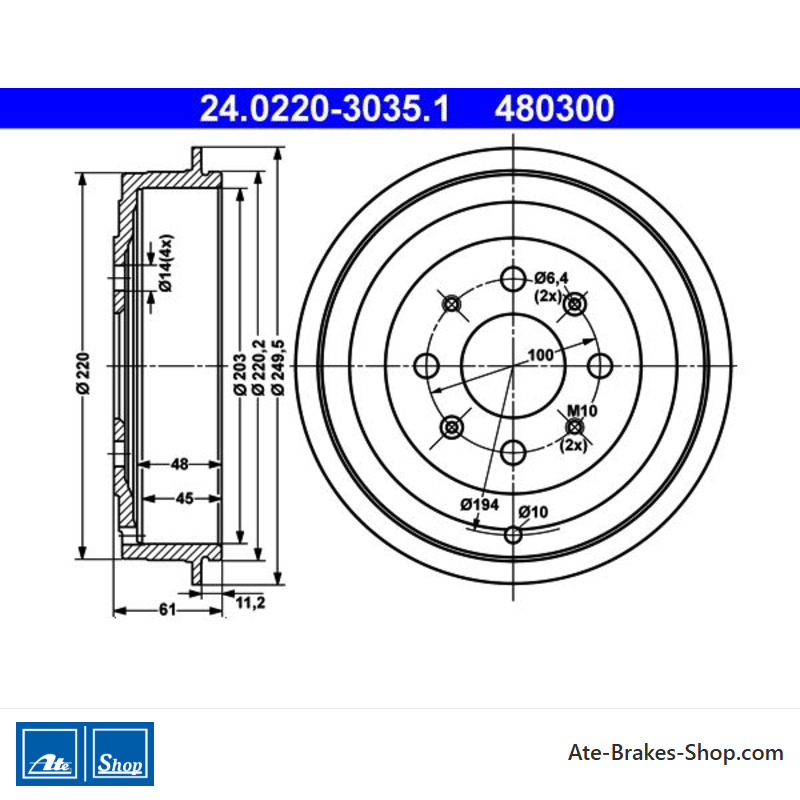

24.0220-3035.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Fiat
Opel - Número de Comercio
- 480300
- País de origen
- China
- Altura
- 61,0
- Diámetro exterior [mm]
- 249,5
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de la placa de soporte [mm]
- 60,0
- Diámetro interior [mm]
- 203,0
- Diámetro del diámetro del diámetro [mm]
- 14,0
- Max. Dimensión de perforación [mm]
- 204,7
- Altura interior del tambor de freno [mm]
- 45,0
Referencias específicas
- ean13
- 4006633309554
- MPN
- 2402203035102
ATE 24.0220-3035.1
(240220-30351)
- Diámetro exterior [mm]: 249,5
- Diámetro interior [mm]: 203,0
- Diámetro de la placa de soporte [mm]: 60,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número comercial: 480300
