ATE Tambor de freno original de 2 piezas (24022030551) para Daihatsu, Toyota
98,01 €
(impuestos inc.)
81,00 € fiscales excl.
Número de parte:
ATE 24.0220-3055.1
(240220-30551)

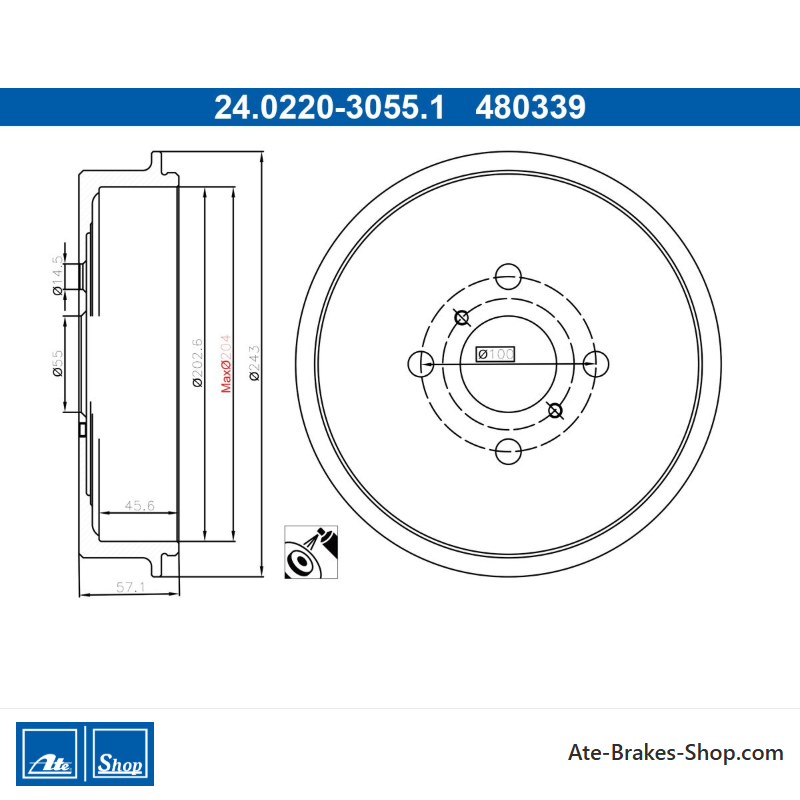

- Diámetro exterior [mm]: 243,0
- Diámetro interior [mm]: 202,6
- Diámetro de la placa de soporte [mm]: 55,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480339
- Código Ean: 4006633507325
- Peso: 8.53kg
Specification of ATE 24.0220-3055.1 / 240220-30551 / 24022030551:
| OE Number | Reference info |
| DAIHATSU 42431-0D030 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-0D030 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DAIHATSU CHARADE VIII Construction Year to 201301 Fitting Position Rear Axle |
2011-05 - | 73 | 99 | 1329 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country France Fitting Position Rear Axle |
2005-08 - 2011-12 | 51 | 69 | 998 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country France Fitting Position Rear Axle |
2006-01 - 2011-12 | 51 | 69 | 998 | Hatchback |
| TOYOTA YARIS (_P9_) Construction Year from 200601 Vehicle Production Country France Fitting Position Rear Axle |
2005-08 - 2010-11 | 64 | 87 | 1298 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country France Fitting Position Rear Axle |
2010-07 - 2011-05 | 73 | 99 | 1329 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country France Fitting Position Rear Axle |
2008-11 - 2011-12 | 74 | 100 | 1329 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country France Fitting Position Rear Axle |
2005-08 - 2012-12 | 66 | 90 | 1364 | Hatchback |
| TOYOTA YARIS (_P13_) Vehicle Production Country France Braking/Driving Dynamics for vehicles without ESP Fitting Position Rear Axle |
2010-12 - 2020-06 | 51 | 69 | 998 | Hatchback |
| TOYOTA YARIS (_P13_) Fitting Position Rear Axle |
2018-06 - 2020-06 | 53 | 72 | 998 | Hatchback |
| TOYOTA YARIS (_P13_) Vehicle Production Country France Braking/Driving Dynamics for vehicles without ESP Fitting Position Rear Axle |
2011-09 - 2017-03 | 73 | 99 | 1329 | Hatchback |
| TOYOTA YARIS (_P13_) Fitting Position Rear Axle |
2017-03 - 2020-06 | 82 | 112 | 1496 | Hatchback |
| TOYOTA YARIS (_P13_) Fitting Position Rear Axle |
2015-04 - 2017-03 | 74 | 101 | 1497 | Hatchback |
| TOYOTA YARIS (_P13_) Braking/Driving Dynamics for vehicles without ESP Fitting Position Rear Axle |
2011-09 - 2018-05 | 66 | 90 | 1364 | Hatchback |
| TOYOTA YARIS Hatchback Van (_P13_) Vehicle Production Country France Braking/Driving Dynamics for vehicles without ESP Fitting Position Rear Axle |
2014-07 - 2020-06 | 51 | 69 | 998 | Hatchback Van |
| TOYOTA YARIS Hatchback Van (_P13_) Fitting Position Rear Axle |
2018-06 - 2020-06 | 53 | 72 | 998 | Hatchback Van |
| TOYOTA YARIS Hatchback Van (_P13_) Vehicle Production Country France Braking/Driving Dynamics for vehicles without ESP Fitting Position Rear Axle |
2012-10 - 2017-03 | 73 | 99 | 1329 | Hatchback Van |
| TOYOTA YARIS Hatchback Van (_P13_) Fitting Position Rear Axle |
2017-03 - 2020-06 | 82 | 111 | 1496 | Hatchback Van |
| TOYOTA YARIS Hatchback Van (_P13_) Fitting Position Rear Axle |
2014-07 - 2018-05 | 66 | 90 | 1364 | Hatchback Van |
24.0220-3055.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Daihatsu
Toyota - Número de Comercio
- 480339
- País de origen
- China
- Altura
- 57,1
- Diámetro exterior [mm]
- 243,0
- Superficie
- pintado
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de la placa de soporte [mm]
- 55,0
- Diámetro interior [mm]
- 202,6
- Diámetro del diámetro del diámetro [mm]
- 14,5
- Max. Dimensión de perforación [mm]
- 204,0
- Altura interior del tambor de freno [mm]
- 45,6
Referencias específicas
- ean13
- 4006633507325
- MPN
- 2402203055102
ATE 24.0220-3055.1
(240220-30551)
- Diámetro exterior [mm]: 243,0
- Diámetro interior [mm]: 202,6
- Diámetro de la placa de soporte [mm]: 55,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480339
