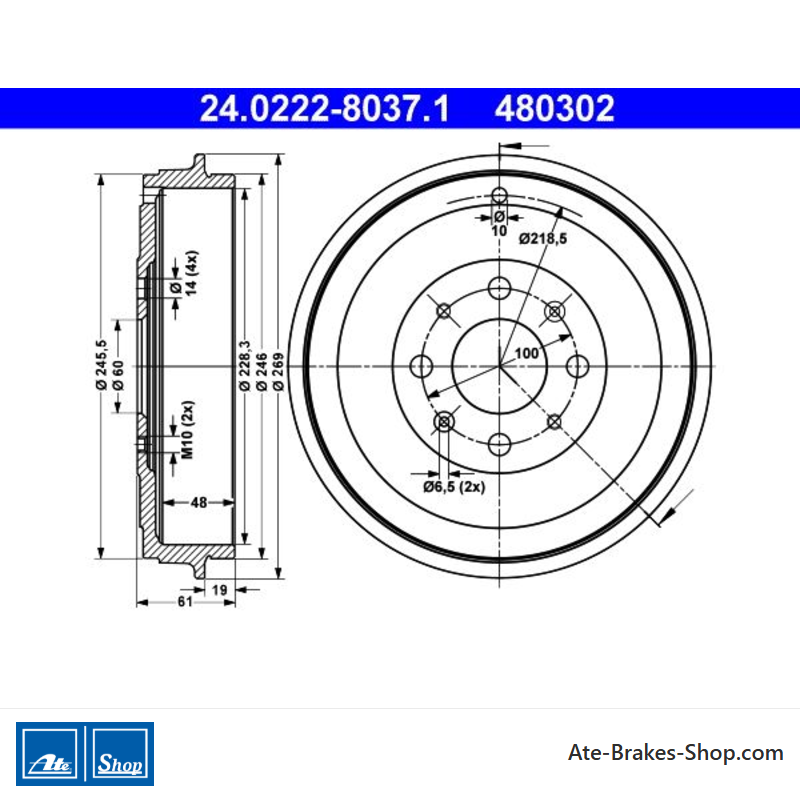

ATE Tambor de freno original de 2 piezas (24022280371) para Fiat, Opel
116,16 €
(impuestos inc.)
96,00 € fiscales excl.
Número de parte:
ATE 24.0222-8037.1
(240222-80371)
- Diámetro exterior [mm]: 269,0
- Diámetro interior [mm]: 228
- Diámetro de la placa de soporte [mm]: 60,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480302
- Código Ean: 4006633309578
- Peso: 11.83kg
Specification of ATE 24.0222-8037.1 / 240222-80371 / 24022280371:
| OE Number | Reference info |
| FIAT 55701380 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 55703043 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51901443 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51901444 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 55704058 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 68 270 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 568270 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 55701380 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 13423796 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 68 003 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 568003 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 68 000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 568000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 55704058 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 13423796 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 55701380 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 55704058 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 68 000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 568000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 68 003 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 568003 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 68 270 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 568270 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT GRANDE PUNTO (199_) Fitting Position Rear Axle | 2005-10 - 2007-07 | 55 | 75 | 1368 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Rear Axle | 2005-06 - 2015-12 | 57 | 77 | 1368 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year from 201009 Construction Year to 201101 Rims for steel rims Fitting Position Rear Axle | 2005-06 - 2015-12 | 57 | 77 | 1368 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Rear Axle | 2008-12 - | 57 | 78 | 1368 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Rear Axle | 2008-07 - | 57 | 78 | 1368 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Rear Axle | 2005-10 - 2011-08 | 70 | 95 | 1368 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Rear Axle | 2008-07 - | 51 | 69 | 1248 | Hatchback |
| FIAT GRANDE PUNTO (199_) Fitting Position Rear Axle | 2005-10 - 2013-06 | 55 | 75 | 1248 | Hatchback |
| FIAT GRANDE PUNTO (199_) Construction Year from 201009 Construction Year to 201101 Rims for steel rims Fitting Position Rear Axle | 2010-04 - | 62 | 84 | 1248 | Hatchback |
| FIAT GRANDE PUNTO (199_) Fitting Position Rear Axle | 2005-10 - 2010-12 | 66 | 90 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 55 | 75 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 77 | 105 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 99 | 135 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 55 | 75 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2013-12 - | 59 | 80 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 62 | 84 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2018-05 - | 66 | 90 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Rear Axle | 2012-03 - | 70 | 95 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 200910 Fitting Position Rear Axle | 2009-07 - 2012-02 | 55 | 75 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 57 | 77 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 77 | 105 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 99 | 135 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2008-07 - 2012-02 | 51 | 69 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 55 | 75 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 62 | 84 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 66 | 90 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Rear Axle | 2009-10 - 2012-02 | 70 | 95 | 1248 | Hatchback |
| FIAT GRANDE PUNTO Van (199_) Construction Year to 201101 Fitting Position Rear Axle | 2006-02 - 2013-06 | 57 | 77 | 1368 | Hatchback Van |
| FIAT GRANDE PUNTO Van (199_) Construction Year from 201009 Construction Year to 201101 Rims for steel rims Fitting Position Rear Axle | 2006-02 - 2013-06 | 57 | 77 | 1368 | Hatchback Van |
| FIAT GRANDE PUNTO Van (199_) Construction Year to 201101 Fitting Position Rear Axle | 2009-03 - 2012-12 | 57 | 77 | 1368 | Hatchback Van |
| FIAT GRANDE PUNTO Van (199_) Construction Year to 201101 Fitting Position Rear Axle | 2009-03 - 2012-12 | 57 | 77 | 1368 | Hatchback Van |
| FIAT GRANDE PUNTO Van (199_) Construction Year to 201101 Fitting Position Rear Axle | 2006-02 - 2013-06 | 55 | 75 | 1248 | Hatchback Van |
| FIAT GRANDE PUNTO Van (199_) Fitting Position Rear Axle | 2006-02 - 2010-08 | 66 | 90 | 1248 | Hatchback Van |
| FIAT PUNTO Hatchback Van (199_) Construction Year to 201101 Fitting Position Rear Axle | 2008-04 - | 55 | 75 | 1248 | Hatchback Van |
| FIAT PUNTO Hatchback Van (199_) Construction Year from 200910 Fitting Position Rear Axle | 2009-03 - | 70 | 95 | 1248 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Fitting Position Rear Axle | 2009-03 - 2012-02 | 57 | 78 | 1368 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Fitting Position Rear Axle | 2009-03 - 2012-02 | 55 | 75 | 1248 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Fitting Position Rear Axle | 2009-03 - 2012-02 | 66 | 90 | 1248 | Hatchback Van |
| OPEL ADAM (M13) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-07 - 2018-11 | 66 | 90 | 999 | Hatchback |
| OPEL ADAM (M13) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-07 - 2018-11 | 85 | 115 | 999 | Hatchback |
| OPEL ADAM (M13) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-10 - 2019-05 | 51 | 69 | 1229 | Hatchback |
| OPEL ADAM (M13) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-10 - 2019-05 | 64 | 87 | 1398 | Hatchback |
| OPEL ADAM (M13) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2013-07 - 2018-11 | 64 | 87 | 1398 | Hatchback |
| OPEL ADAM (M13) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-10 - 2019-05 | 74 | 101 | 1398 | Hatchback |
| OPEL ADAM (M13) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-11 - 2019-05 | 110 | 150 | 1364 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Rear Axle | 2006-07 - 2010-12 | 44 | 60 | 998 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle | 2009-12 - 2014-08 | 48 | 65 | 998 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle | 2009-12 - 2014-08 | 51 | 69 | 1229 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Rear Axle | 2006-07 - 2014-08 | 59 | 80 | 1229 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle | 2006-08 - 2014-08 | 59 | 80 | 1229 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle | 2011-06 - 2014-08 | 61 | 83 | 1229 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle | 2009-12 - 2014-08 | 63 | 86 | 1229 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle | 2011-06 - 2014-08 | 63 | 86 | 1229 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Rear Axle | 2006-07 - 2014-08 | 66 | 90 | 1364 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Rear Axle | 2006-08 - 2011-12 | 66 | 90 | 1364 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle | 2009-09 - 2014-08 | 64 | 87 | 1398 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle | 2009-09 - 2014-08 | 64 | 87 | 1398 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle | 2009-12 - 2014-08 | 74 | 100 | 1398 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Rear Axle not for vehicle equipment line/trim level ecoFLEX | 2006-07 - 2014-08 | 55 | 75 | 1248 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Rear Axle | 2006-07 - 2011-06 | 66 | 90 | 1248 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Rear Axle | 2009-06 - 2014-08 | 70 | 95 | 1248 | Hatchback |
| OPEL CORSA E (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-09 - | 66 | 90 | 999 | Hatchback |
| OPEL CORSA E (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-09 - | 85 | 115 | 999 | Hatchback |
| OPEL CORSA E (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-09 - | 51 | 69 | 1229 | Hatchback |
| OPEL CORSA E (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-09 - | 55 | 75 | 1398 | Hatchback |
| OPEL CORSA E (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-09 - | 66 | 90 | 1398 | Hatchback |
| OPEL CORSA E (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-11 - | 64 | 87 | 1398 | Hatchback |
| OPEL CORSA E (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-03 - | 66 | 90 | 1398 | Hatchback |
| OPEL CORSA E (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-09 - 2019-06 | 74 | 101 | 1364 | Hatchback |
| OPEL CORSA E (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-03 - | 110 | 150 | 1364 | Hatchback |
| OPEL CORSA E (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-03 - | 152 | 207 | 1598 | Hatchback |
| OPEL CORSA E (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-09 - | 55 | 75 | 1248 | Hatchback |
| OPEL CORSA E (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-09 - | 70 | 95 | 1248 | Hatchback |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 Fitting Position Rear Axle | 2006-08 - 2014-08 | 44 | 60 | 998 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Rear Axle | 2010-01 - 2014-08 | 48 | 65 | 998 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Rear Axle | 2010-01 - 2014-08 | 51 | 69 | 1229 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Rear Axle | 2006-08 - 2014-08 | 59 | 80 | 1229 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Rear Axle | 2010-06 - 2014-08 | 63 | 86 | 1229 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Rear Axle | 2012-07 - 2014-08 | 74 | 101 | 1398 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 Fitting Position Rear Axle not for vehicle equipment line/trim level ecoFLEX | 2006-07 - 2014-08 | 55 | 75 | 1248 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 Fitting Position Rear Axle | 2006-07 - 2010-06 | 66 | 90 | 1248 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Rear Axle | 2009-11 - 2014-08 | 70 | 95 | 1248 | Hatchback Van |
| OPEL CORSA E Hatchback Van (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-01 - | 51 | 69 | 1229 | Hatchback Van |
| OPEL CORSA E Hatchback Van (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-09 - | 55 | 75 | 1398 | Hatchback Van |
| OPEL CORSA E Hatchback Van (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-09 - | 66 | 90 | 1398 | Hatchback Van |
| OPEL CORSA E Hatchback Van (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-01 - | 55 | 75 | 1248 | Hatchback Van |
| OPEL CORSA E Hatchback Van (X15) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-09 - | 70 | 95 | 1248 | Hatchback Van |
24.0222-8037.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Fiat
Opel - Número de Comercio
- 480302
- País de origen
- China
- Altura
- 61,0
- Diámetro exterior [mm]
- 269,0
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de la placa de soporte [mm]
- 60,0
- Diámetro interior [mm]
- 228
- Diámetro del diámetro del diámetro [mm]
- 14,0
- Max. Dimensión de perforación [mm]
- 230,0
- Altura interior del tambor de freno [mm]
- 48,0
Referencias específicas
- ean13
- 4006633309578
- MPN
- 2402228037102
ATE 24.0222-8037.1
(240222-80371)
- Diámetro exterior [mm]: 269,0
- Diámetro interior [mm]: 228
- Diámetro de la placa de soporte [mm]: 60,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480302
