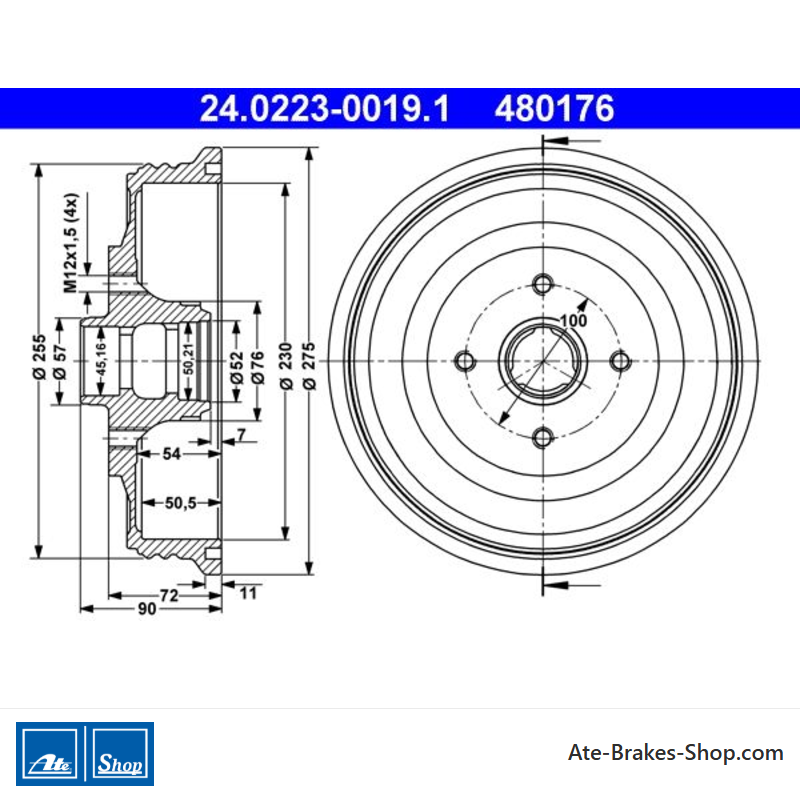

ATE Tambor de freno original de 2 piezas (24022300191) para asiento, Volkswagen (VW)
101,64 €
(impuestos inc.)
84,00 € fiscales excl.
Número de parte:
ATE 24.0223-0019.1
(240223-00191)
- Diámetro exterior [mm]: 275,0
- Diámetro interior [mm]: 230,0
- Diámetro de la placa de soporte [mm]: 50,2
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480176
- Código Ean: 4006633128124
- Peso: 16.98kg
Specification of ATE 24.0223-0019.1 / 240223-00191 / 24022300191:
| OE Number | Reference info |
| SEAT 6K9 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6K9501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6K9 501 615 D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6K9501615D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6K9 501 615 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6K9501615A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6K9 501 615 D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6K9501615D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles with ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1995-11 - 2003-06 | 44 | 60 | 1389 | Estate Van |
| SEAT INCA (6K9) Fitting Position Rear Axle | 2000-04 - 2003-06 | 55 | 75 | 1390 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles with ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1995-11 - 1998-05 | 55 | 75 | 1595 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles with ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1997-06 - 2000-09 | 55 | 75 | 1598 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles with ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1996-09 - 2003-06 | 42 | 57 | 1715 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles with ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1995-11 - 2003-06 | 47 | 64 | 1896 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles with ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1995-11 - 2003-06 | 47 | 64 | 1896 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles with ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1996-09 - 2003-06 | 66 | 90 | 1896 | Estate Van |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-11 - 2003-06 | 44 | 60 | 1390 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-08 - 2004-01 | 55 | 75 | 1390 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-11 - 1997-05 | 55 | 75 | 1595 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1997-06 - 2000-09 | 55 | 75 | 1598 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-10 - 2004-01 | 66 | 90 | 1896 | MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 44 | 60 | 1390 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-08 - 2004-01 | 55 | 75 | 1390 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-11 - 1997-05 | 55 | 75 | 1595 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-11 - 2000-09 | 55 | 75 | 1598 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-07 - 2000-09 | 42 | 57 | 1715 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1996-09 - 2004-01 | 66 | 90 | 1896 | Box Body/MPV |
24.0223-0019.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Escaño
Volkswagen (VW) - Número de Comercio
- 480176
- País de origen
- China
- Información adicional
- con anillo sensor ABS
sin rodamientos de rueda - Altura
- 51,0
- Diámetro exterior [mm]
- 275,0
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de la placa de soporte [mm]
- 50,2
- Diámetro interior [mm]
- 230,0
- Tamaño del hilo
- M12x1,5
- Max. Dimensión de perforación [mm]
- 231,0
- Altura interior del tambor de freno [mm]
- 50,5
Referencias específicas
- ean13
- 4006633128124
- MPN
- 2402230019102
ATE 24.0223-0019.1
(240223-00191)
- Diámetro exterior [mm]: 275,0
- Diámetro interior [mm]: 230,0
- Diámetro de la placa de soporte [mm]: 50,2
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480176
