ATE Disco de freno original de 2 piezas (24010901271) para Mazda
72,60 €
(impuestos inc.)
60,00 € fiscales excl.
Número de parte:
ATE 24.0109-0127.1
(240109-01271)
- Diámetro exterior [mm]: 231,0
- Diámetro interior [mm]: 125,0
- Grosor del disco de freno [mm]: 9,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 409127
Información logística:
- Código Ean: 4006633007764
- Peso: 5.37kg
Specification of ATE 24.0109-0127.1 / 240109-01271 / 24010901271:
| OE Number | Reference info |
| MAZDA B4Y2-26-251C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA NA01-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-26-251C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-26-251D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B4Y2-26-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B4Y2-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B4Y2-26-251B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 323 C IV (BG) Fitting Position Rear Axle | 1989-09 - 1991-06 | 62 | 84 | 1597 | Hatchback |
| MAZDA 323 C IV (BG) Fitting Position Rear Axle | 1991-03 - 1994-10 | 65 | 88 | 1597 | Hatchback |
| MAZDA 323 C IV (BG) Fitting Position Rear Axle | 1991-11 - 1993-12 | 76 | 103 | 1840 | Hatchback |
| MAZDA 323 C IV (BG) Fitting Position Rear Axle | 1989-09 - 1993-03 | 94 | 128 | 1840 | Hatchback |
| MAZDA 323 C IV (BG) Fitting Position Rear Axle | 1989-09 - 1993-03 | 103 | 140 | 1840 | Hatchback |
| MAZDA 323 F IV (BG) Fitting Position Rear Axle | 1989-09 - 1991-06 | 62 | 84 | 1597 | Hatchback |
| MAZDA 323 F IV (BG) Fitting Position Rear Axle | 1991-03 - 1994-10 | 65 | 88 | 1597 | Hatchback |
| MAZDA 323 F IV (BG) Construction Year from 198909 Fitting Position Rear Axle | 1989-08 - 1994-07 | 76 | 103 | 1840 | Hatchback |
| MAZDA 323 F IV (BG) Fitting Position Rear Axle | 1991-01 - 1994-04 | 76 | 103 | 1840 | Hatchback |
| MAZDA 323 F IV (BG) Construction Year from 198909 Fitting Position Rear Axle | 1989-08 - 1994-07 | 94 | 128 | 1840 | Hatchback |
| MAZDA 323 F IV (BG) Fitting Position Rear Axle | 1989-09 - 1993-03 | 103 | 140 | 1840 | Hatchback |
| MAZDA 323 S IV (BG) Fitting Position Rear Axle | 1989-09 - 1991-06 | 62 | 84 | 1597 | Saloon |
| MAZDA 323 S IV (BG) Construction Year from 198909 Fitting Position Rear Axle | 1989-08 - 1996-10 | 65 | 88 | 1597 | Saloon |
| MAZDA 323 S IV (BG) Construction Year from 198909 Fitting Position Rear Axle | 1989-08 - 1994-07 | 76 | 103 | 1840 | Saloon |
| MAZDA 323 S IV (BG) Construction Year from 198909 Fitting Position Rear Axle | 1989-06 - 1994-07 | 94 | 128 | 1840 | Saloon |
| MAZDA MX-5 I (NA) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-01 - 1998-04 | 66 | 90 | 1598 | Convertible |
| MAZDA MX-5 I (NA) Construction Year to 199308 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-05 - 1994-01 | 85 | 115 | 1597 | Convertible |
24.0109-0127.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Mazda
- Número de Comercio
- 409127
- País de origen
- Chequia
- Altura
- 34,5

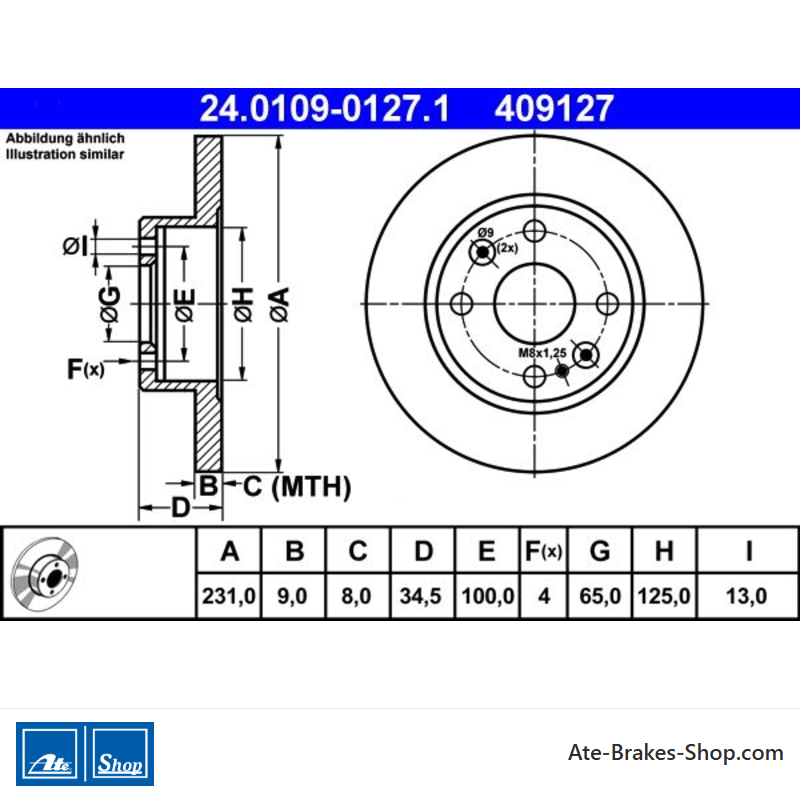

- Diámetro exterior [mm]
- 231,0
- Grosor del disco de freno [mm]
- 9,0
- Tipo de disco de freno
- sólido
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de centrado [mm]
- 65,0
- Diámetro interior [mm]
- 125,0
- Diámetro del diámetro del diámetro [mm]
- 13,0
- Espesor mínimo [mm]
- 8,0
Referencias específicas
- ean13
- 4006633007764
- MPN
- 2401090127102
ATE 24.0109-0127.1
(240109-01271)
- Diámetro exterior [mm]: 231,0
- Diámetro interior [mm]: 125,0
- Grosor del disco de freno [mm]: 9,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 409127
