ATE Disco de freno original de 2 piezas (24011001111) para asiento, Volkswagen (VW)
65,34 €
(impuestos inc.)
54,00 € fiscales excl.
Número de parte:
ATE 24.0110-0111.1
(240110-01111)
- Diámetro exterior [mm]: 226,0
- Diámetro interior [mm]: 121,4
- Grosor del disco de freno [mm]: 10,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 410111
Información logística:
- Código Ean: 4006633103312
- Peso: 8.97kg
Specification of ATE 24.0110-0111.1 / 240110-01111 / 24011001111:
| OE Number | Reference info |
| SEAT 357 615 601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 357615601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 191 615 601 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 191615601A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 1HM 615 601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 1HM615601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6N0 615 601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6N0615601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 357 615 601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 357615601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 191 615 601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 191615601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 191 615 601 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 191615601B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6N0 615 601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6N0615601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 191 615 601 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 191615601A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 1HM 615 601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 1HM615601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199402 Vehicle Identification Number (VIN) to 6K-X-289999 Fitting Position Rear Axle | 1993-10 - 1996-08 | 95 | 129 | 1781 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199311 Vehicle Identification Number (VIN) to 6K-X-289999 Fitting Position Rear Axle | 1993-02 - 1999-06 | 85 | 115 | 1984 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Vehicle Identification Number (VIN) to 6K-X-289999 Fitting Position Rear Axle | 1996-08 - 1999-06 | 110 | 150 | 1984 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Vehicle Identification Number (VIN) to 6K-X-289999 Fitting Position Rear Axle | 1997-03 - 2002-10 | 81 | 110 | 1896 | Saloon |
| SEAT CORDOBA Vario (6K5) Vehicle Identification Number (VIN) to 6K-X-289999 Fitting Position Rear Axle | 1997-07 - 2002-12 | 81 | 110 | 1896 | Estate |
| SEAT IBIZA II (6K1) Construction Year from 199402 Fitting Position Rear Axle | 1993-11 - 1996-08 | 95 | 129 | 1781 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 Fitting Position Rear Axle | 1993-03 - 1999-08 | 85 | 115 | 1984 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year from 199703 Construction Year to 199907 Fitting Position Rear Axle | 1997-02 - 2002-02 | 81 | 110 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KD Fitting Position Rear Axle | 1991-05 - 1999-03 | 54 | 73 | 1595 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KD Fitting Position Rear Axle | 1993-01 - 1999-03 | 55 | 75 | 1595 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year to 199809 for PR number 1KD Fitting Position Rear Axle | 1996-11 - 1999-03 | 74 | 101 | 1595 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 for PR number 1KD Fitting Position Rear Axle | 1991-05 - 1996-12 | 65 | 88 | 1781 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 for PR number 1KD Fitting Position Rear Axle | 1993-11 - 1996-12 | 66 | 90 | 1781 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199109 Construction Year to 199403 Fitting Position Rear Axle | 1991-05 - 1999-03 | 92 | 125 | 1781 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199109 Construction Year to 199403 Fitting Position Rear Axle | 1991-05 - 1999-03 | 98 | 133 | 1781 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199109 Construction Year to 199608 Fitting Position Rear Axle | 1991-05 - 1999-03 | 85 | 115 | 1984 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KD Fitting Position Rear Axle | 1991-05 - 1999-03 | 85 | 115 | 1984 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KD Fitting Position Rear Axle | 1993-11 - 1999-03 | 110 | 150 | 1984 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KD Fitting Position Rear Axle | 1995-12 - 1999-03 | 47 | 64 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KD Fitting Position Rear Axle | 1991-05 - 1999-03 | 50 | 68 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KD Fitting Position Rear Axle | 1991-05 - 1999-03 | 55 | 75 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199511 Construction Year to 199608 Fitting Position Rear Axle | 1995-08 - 1999-03 | 66 | 90 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KD Fitting Position Rear Axle | 1995-08 - 1999-03 | 66 | 90 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year to 199809 for PR number 1KD Fitting Position Rear Axle | 1996-11 - 1999-03 | 81 | 110 | 1896 | Hatchback |
| SEAT CORDOBA VARIO Estate Van (6K5) Vehicle Identification Number (VIN) to 6K-X-289999 Fitting Position Rear Axle | 2000-08 - 2002-12 | 81 | 110 | 1896 | Estate Van |
| VW CORRADO (53I) Fitting Position Rear Axle | 1989-04 - 1992-07 | 100 | 136 | 1781 | Coupe |
| VW CORRADO (53I) Construction Year from 198810 Fitting Position Rear Axle | 1988-09 - 1993-09 | 118 | 160 | 1781 | Coupe |
| VW CORRADO (53I) Construction Year to 199507 Fitting Position Rear Axle | 1993-04 - 1995-12 | 85 | 115 | 1984 | Coupe |
| VW CORRADO (53I) Construction Year to 199507 Fitting Position Rear Axle | 1991-08 - 1995-12 | 100 | 136 | 1984 | Coupe |
| VW GOLF II (19E, 1G1) Vehicle Identification Number (VIN) from 19-JH480001 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1986-08 - 1990-01 | 62 | 84 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Vehicle Identification Number (VIN) from 19-JH480001 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1984-08 - 1991-10 | 66 | 90 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year from 198508 Fitting Position Rear Axle | 1984-08 - 1991-10 | 66 | 90 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1987-08 - 1991-10 | 66 | 90 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Vehicle Identification Number (VIN) from 19-JH480001 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1987-08 - 1991-10 | 66 | 90 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1985-01 - 1985-07 | 77 | 105 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1985-08 - 1987-10 | 79 | 107 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1987-01 - 1991-10 | 79 | 107 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year from 198401 Fitting Position Rear Axle | 1983-08 - 1991-10 | 82 | 112 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1986-02 - 1991-10 | 95 | 129 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1986-02 - 1990-06 | 102 | 139 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Fitting Position Rear Axle | 1990-04 - 1991-07 | 118 | 160 | 1781 | Hatchback |
| VW GOLF III (1H1) Rim Hole Number 4 -Hole Fitting Position Rear Axle | 1995-07 - 1997-08 | 74 | 101 | 1595 | Hatchback |
| VW GOLF III (1H1) Rim Hole Number 4 -Hole Fitting Position Rear Axle | 1991-11 - 1997-08 | 55 | 75 | 1781 | Hatchback |
| VW GOLF III (1H1) Rim Hole Number 4 -Hole Fitting Position Rear Axle | 1991-11 - 1997-08 | 66 | 90 | 1781 | Hatchback |
| VW GOLF III (1H1) not for brake caliper colour red Rim Hole Number 4 -Hole Fitting Position Rear Axle | 1996-04 - 1997-08 | 81 | 110 | 1896 | Hatchback |
| VW GOLF III Cabriolet (1E7) Construction Year from 199804 Fitting Position Rear Axle | 1993-07 - 1998-05 | 55 | 75 | 1781 | Convertible |
| VW GOLF III Cabriolet (1E7) Construction Year from 199804 Fitting Position Rear Axle | 1993-07 - 1998-05 | 66 | 90 | 1781 | Convertible |
| VW GOLF III Cabriolet (1E7) Construction Year from 199804 Fitting Position Rear Axle | 1993-07 - 1998-05 | 85 | 115 | 1984 | Convertible |
| VW GOLF III Cabriolet (1E7) Construction Year from 199804 Fitting Position Rear Axle | 1995-08 - 1998-05 | 66 | 90 | 1896 | Convertible |
| VW GOLF III Cabriolet (1E7) Construction Year from 199609 Fitting Position Rear Axle | 1996-07 - 1998-05 | 81 | 110 | 1896 | Convertible |
| VW GOLF IV Cabriolet (1E7) Construction Year to 200202 Fitting Position Rear Axle | 1998-06 - 2002-06 | 74 | 100 | 1595 | Convertible |
| VW GOLF IV Cabriolet (1E7) Construction Year to 200202 Fitting Position Rear Axle | 1998-06 - 2002-06 | 55 | 75 | 1781 | Convertible |
| VW GOLF IV Cabriolet (1E7) Construction Year to 200202 Fitting Position Rear Axle | 1998-06 - 2002-06 | 66 | 90 | 1781 | Convertible |
| VW GOLF IV Cabriolet (1E7) Construction Year to 200202 Fitting Position Rear Axle | 1998-06 - 2002-06 | 85 | 115 | 1984 | Convertible |
| VW GOLF IV Cabriolet (1E7) Construction Year to 200202 Fitting Position Rear Axle | 1998-06 - 2002-06 | 66 | 90 | 1896 | Convertible |
| VW GOLF IV Cabriolet (1E7) Construction Year to 200202 Fitting Position Rear Axle | 1998-06 - 2002-06 | 81 | 110 | 1896 | Convertible |
| VW JETTA II (19E, 1G2, 165) Vehicle Identification Number (VIN) from 16-JH480001 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1986-08 - 1990-01 | 62 | 84 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Vehicle Identification Number (VIN) from 16-JH480001 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1984-08 - 1991-10 | 66 | 90 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Construction Year from 198508 Fitting Position Rear Axle | 1984-08 - 1991-10 | 66 | 90 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle | 1987-08 - 1991-10 | 66 | 90 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Vehicle Identification Number (VIN) from 16-JH480001 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1987-08 - 1991-10 | 66 | 90 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle | 1985-08 - 1987-10 | 79 | 107 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle | 1987-01 - 1991-10 | 79 | 107 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle | 1984-01 - 1991-10 | 82 | 112 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Construction Year from 198508 Fitting Position Rear Axle | 1984-01 - 1991-10 | 82 | 112 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle | 1986-08 - 1991-10 | 95 | 129 | 1781 | Saloon |
| VW JETTA II (19E, 1G2, 165) Fitting Position Rear Axle | 1987-06 - 1989-12 | 102 | 140 | 1781 | Saloon |
| VW PASSAT B2 (32B) Fitting Position Rear Axle | 1985-01 - 1988-03 | 100 | 136 | 2226 | Hatchback |
| VW PASSAT B2 Variant (33B) Fitting Position Rear Axle | 1985-01 - 1988-03 | 100 | 136 | 2226 | Estate |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year to 199007 Fitting Position Rear Axle | 1988-04 - 1993-07 | 79 | 107 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year to 199007 Fitting Position Rear Axle | 1988-04 - 1992-07 | 82 | 112 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Rear Axle | 1988-04 - 1989-12 | 100 | 136 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Rear Axle | 1995-03 - 1996-08 | 79 | 107 | 1984 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199003 Construction Year to 199310 Fitting Position Rear Axle | 1990-02 - 1996-08 | 85 | 115 | 1984 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199310 Fitting Position Rear Axle | 1990-02 - 1996-08 | 85 | 115 | 1984 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Rear Axle | 1988-08 - 1993-09 | 100 | 136 | 1984 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Vehicle Identification Number (VIN) from 3A-T-000001 Fitting Position Rear Axle | 1993-10 - 1996-08 | 66 | 90 | 1896 | Saloon |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Rear Axle | 1988-04 - 1990-07 | 79 | 107 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year to 199007 Fitting Position Rear Axle | 1988-04 - 1992-07 | 82 | 112 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Rear Axle | 1988-04 - 1989-12 | 100 | 136 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Rear Axle | 1995-03 - 1996-08 | 79 | 107 | 1984 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199310 Construction Year to 199612 Fitting Position Rear Axle | 1990-02 - 1997-05 | 85 | 115 | 1984 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199003 Construction Year to 199310 Fitting Position Rear Axle | 1990-02 - 1997-05 | 85 | 115 | 1984 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Rear Axle | 1993-10 - 1996-10 | 85 | 116 | 1984 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Rear Axle | 1988-08 - 1993-09 | 100 | 136 | 1984 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Vehicle Identification Number (VIN) from 3A-T-000001 Construction Year to 199612 Fitting Position Rear Axle | 1993-10 - 1997-05 | 66 | 90 | 1896 | Estate |
| VW POLO III (6N1) Construction Year to 199909 Fitting Position Rear Axle Country Specific Design Germany | 1996-04 - 1999-10 | 74 | 100 | 1390 | Hatchback |
| VW POLO III (6N1) Construction Year to 199909 Fitting Position Rear Axle | 1998-09 - 1999-10 | 88 | 120 | 1598 | Hatchback |
| VW POLO III CLASSIC (6V2) Construction Year to 199909 Fitting Position Rear Axle | 1998-06 - 2002-01 | 81 | 110 | 1896 | Saloon |
| VW SCIROCCO (53B) Fitting Position Rear Axle | 1986-03 - 1992-07 | 95 | 129 | 1781 | Coupe |
| VW SCIROCCO (53B) Fitting Position Rear Axle | 1985-10 - 1989-07 | 102 | 139 | 1781 | Coupe |
| VW VENTO (1H2) Rim Hole Number 4 -Hole Fitting Position Rear Axle | 1994-10 - 1998-09 | 74 | 101 | 1595 | Saloon |
| VW VENTO (1H2) Construction Year from 199201 Rim Hole Number 4 -Hole Fitting Position Rear Axle | 1991-11 - 1998-09 | 66 | 90 | 1781 | Saloon |
| VW VENTO (1H2) Rim Hole Number 4 -Hole Fitting Position Rear Axle | 1991-11 - 1998-09 | 85 | 115 | 1984 | Saloon |
| VW VENTO (1H2) Rim Hole Number 4 -Hole Fitting Position Rear Axle | 1996-05 - 1997-12 | 79 | 107 | 1984 | Saloon |
| VW VENTO (1H2) Rim Hole Number 4 -Hole Fitting Position Rear Axle | 1993-09 - 1998-09 | 66 | 90 | 1896 | Saloon |
| VW VENTO (1H2) Rim Hole Number 4 -Hole Fitting Position Rear Axle | 1996-04 - 1998-09 | 81 | 110 | 1896 | Saloon |
| VW GOLF II Van (19E, 1G1) Vehicle Identification Number (VIN) from 19-JH480001 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1987-08 - 1991-07 | 66 | 90 | 1781 | Hatchback Van |

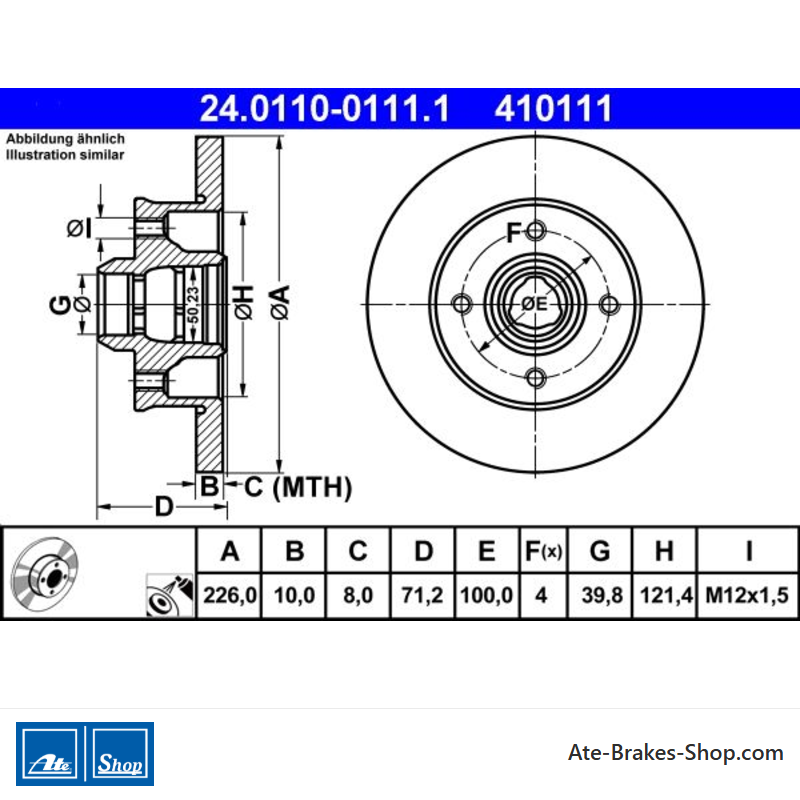

24.0110-0111.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Escaño
Volkswagen (VW) - Número de Comercio
- 410111
- País de origen
- Italia
- Información adicional
- sin anillo sensor ABS
sin rodamientos de rueda - Altura
- 71,2
- Diámetro exterior [mm]
- 226,0
- Grosor del disco de freno [mm]
- 10,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de la placa de soporte [mm]
- 50,2
- Diámetro de centrado [mm]
- 39,8
- Diámetro interior [mm]
- 121,4
- Tamaño del hilo
- M12x1,5
- Espesor mínimo [mm]
- 8,0
Referencias específicas
- ean13
- 4006633103312
- MPN
- 2401100111102
ATE 24.0110-0111.1
(240110-01111)
- Diámetro exterior [mm]: 226,0
- Diámetro interior [mm]: 121,4
- Grosor del disco de freno [mm]: 10,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 410111
