ATE Disco de freno original de 2 piezas (24011002711) para Mini
72,60 €
(impuestos inc.)
60,00 € fiscales excl.
Número de parte:
ATE 24.0110-0271.1
(240110-02711)
- Diámetro exterior [mm]: 259,0
- Diámetro interior [mm]: 163,0
- Grosor del disco de freno [mm]: 10,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 410271
Información logística:
- Código Ean: 4006633090452
- Peso: 6.98kg
Specification of ATE 24.0110-0271.1 / 240110-02711 / 24011002711:
| OE Number | Reference info |
| MINI 34 21 1 503 070 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34211503070 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34 21 6 774 987 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34216774987 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MINI MINI (R50, R53) Fitting Position Rear Axle | 2003-04 - 2006-09 | 55 | 75 | 1398 | Hatchback |
| MINI MINI (R50, R53) Fitting Position Rear Axle | 2001-06 - 2006-09 | 66 | 90 | 1598 | Hatchback |
| MINI MINI (R50, R53) Fitting Position Rear Axle | 2001-06 - 2006-09 | 85 | 116 | 1598 | Hatchback |
| MINI MINI (R50, R53) Construction Year from 200207 Fitting Position Rear Axle | 2002-03 - 2006-09 | 120 | 163 | 1598 | Hatchback |
| MINI MINI (R50, R53) Fitting Position Rear Axle | 2004-07 - 2006-09 | 125 | 170 | 1598 | Hatchback |
| MINI MINI (R50, R53) Fitting Position Rear Axle | 2003-11 - 2005-06 | 149 | 203 | 1598 | Hatchback |
| MINI MINI (R50, R53) Fitting Position Rear Axle | 2003-11 - 2006-09 | 155 | 210 | 1598 | Hatchback |
| MINI MINI (R50, R53) Fitting Position Rear Axle | 2006-03 - 2006-09 | 160 | 218 | 1598 | Hatchback |
| MINI MINI (R50, R53) Fitting Position Rear Axle | 2003-06 - 2006-09 | 55 | 75 | 1364 | Hatchback |
| MINI MINI (R50, R53) Fitting Position Rear Axle | 2003-06 - 2006-09 | 65 | 88 | 1364 | Hatchback |
| MINI MINI Convertible (R52) Fitting Position Rear Axle | 2004-07 - 2007-11 | 66 | 90 | 1598 | Convertible |
| MINI MINI Convertible (R52) Fitting Position Rear Axle | 2004-04 - 2008-07 | 85 | 116 | 1598 | Convertible |
| MINI MINI Convertible (R52) Fitting Position Rear Axle | 2004-07 - 2007-11 | 120 | 163 | 1598 | Convertible |
| MINI MINI Convertible (R52) Fitting Position Rear Axle | 2004-07 - 2008-07 | 125 | 170 | 1598 | Convertible |
| MINI MINI Convertible (R52) Fitting Position Rear Axle | 2004-07 - 2007-11 | 155 | 210 | 1598 | Convertible |
| MINI MINI (R56) Fitting Position Rear Axle | 2009-03 - 2010-03 | 55 | 75 | 1397 | Hatchback |
| MINI MINI (R56) Construction Year from 200704 Fitting Position Rear Axle | 2006-11 - 2010-03 | 70 | 95 | 1397 | Hatchback |
| MINI MINI (R56) Fitting Position Rear Axle | 2010-03 - 2013-11 | 55 | 75 | 1598 | Hatchback |
| MINI MINI (R56) Fitting Position Rear Axle | 2010-03 - 2013-11 | 72 | 98 | 1598 | Hatchback |
| MINI MINI (R56) Construction Year from 201003 Fitting Position Rear Axle | 2006-09 - 2013-11 | 85 | 115 | 1598 | Hatchback |
| MINI MINI (R56) Construction Year from 200611 Fitting Position Rear Axle | 2006-10 - 2012-02 | 88 | 120 | 1598 | Hatchback |
| MINI MINI (R56) Construction Year from 201003 Fitting Position Rear Axle | 2009-09 - 2013-11 | 90 | 122 | 1598 | Hatchback |
| MINI MINI (R56) Fitting Position Rear Axle | 2010-03 - 2013-11 | 120 | 163 | 1598 | Hatchback |
| MINI MINI (R56) Construction Year from 200611 Fitting Position Rear Axle | 2006-10 - 2010-02 | 128 | 174 | 1598 | Hatchback |
| MINI MINI (R56) Fitting Position Rear Axle | 2010-03 - 2013-11 | 135 | 184 | 1598 | Hatchback |
| MINI MINI (R56) Fitting Position Rear Axle | 2011-10 - 2013-11 | 147 | 200 | 1598 | Hatchback |
| MINI MINI (R56) Construction Year from 201003 Fitting Position Rear Axle | 2009-06 - 2010-07 | 66 | 90 | 1560 | Hatchback |
| MINI MINI (R56) Fitting Position Rear Axle | 2010-07 - 2013-11 | 66 | 90 | 1598 | Hatchback |
| MINI MINI (R56) Construction Year from 200704 Fitting Position Rear Axle | 2006-11 - 2010-09 | 80 | 109 | 1560 | Hatchback |
| MINI MINI (R56) Fitting Position Rear Axle | 2010-06 - 2013-11 | 82 | 112 | 1598 | Hatchback |
| MINI MINI (R56) Fitting Position Rear Axle | 2011-02 - 2013-11 | 82 | 112 | 1995 | Hatchback |
| MINI MINI (R56) Fitting Position Rear Axle | 2011-02 - 2013-11 | 100 | 136 | 1995 | Hatchback |
| MINI MINI (R56) Fitting Position Rear Axle | 2011-02 - 2013-11 | 105 | 143 | 1995 | Hatchback |
| MINI MINI Convertible (R57) Construction Year from 201003 Construction Year to 201406 Fitting Position Rear Axle | 2009-09 - 2015-06 | 72 | 98 | 1598 | Convertible |
| MINI MINI Convertible (R57) Construction Year from 200901 Fitting Position Rear Axle | 2008-12 - 2015-06 | 85 | 116 | 1598 | Convertible |
| MINI MINI Convertible (R57) Fitting Position Rear Axle | 2008-12 - 2010-07 | 88 | 120 | 1598 | Convertible |
| MINI MINI Convertible (R57) Fitting Position Rear Axle | 2010-03 - 2015-06 | 90 | 122 | 1598 | Convertible |
| MINI MINI Convertible (R57) Construction Year from 200901 Construction Year to 201406 Fitting Position Rear Axle | 2007-10 - 2015-06 | 120 | 163 | 1598 | Convertible |
| MINI MINI Convertible (R57) Construction Year from 200901 Fitting Position Rear Axle | 2008-12 - 2010-07 | 128 | 174 | 1598 | Convertible |
| MINI MINI Convertible (R57) Construction Year from 201003 Construction Year to 201406 Fitting Position Rear Axle | 2010-02 - 2015-06 | 135 | 184 | 1598 | Convertible |
| MINI MINI Convertible (R57) Fitting Position Rear Axle | 2008-04 - 2010-07 | 141 | 192 | 1598 | Convertible |
| MINI MINI Convertible (R57) Construction Year from 201003 Construction Year to 201406 Fitting Position Rear Axle | 2010-02 - 2015-06 | 147 | 200 | 1598 | Convertible |
| MINI MINI Convertible (R57) Construction Year from 201006 Fitting Position Rear Axle | 2009-05 - 2013-11 | 82 | 112 | 1598 | Convertible |
| MINI MINI Convertible (R57) Construction Year to 201406 Fitting Position Rear Axle | 2011-02 - 2015-05 | 82 | 112 | 1995 | Convertible |
| MINI MINI Convertible (R57) Construction Year from 201102 Construction Year to 201406 Fitting Position Rear Axle | 2011-01 - 2015-05 | 100 | 136 | 1995 | Convertible |
| MINI MINI Convertible (R57) Construction Year from 201102 Construction Year to 201406 Fitting Position Rear Axle | 2009-06 - 2015-05 | 105 | 143 | 1995 | Convertible |
| MINI MINI Roadster (R59) Construction Year from 201202 Fitting Position Rear Axle | 2011-11 - 2015-04 | 85 | 115 | 1598 | Convertible |
| MINI MINI Roadster (R59) Construction Year from 201202 Fitting Position Rear Axle | 2011-11 - 2015-04 | 90 | 122 | 1598 | Convertible |
| MINI MINI Roadster (R59) Construction Year from 201202 Fitting Position Rear Axle | 2011-11 - 2015-04 | 120 | 163 | 1598 | Convertible |
| MINI MINI Roadster (R59) Construction Year from 201202 Fitting Position Rear Axle | 2011-11 - 2015-04 | 135 | 184 | 1598 | Convertible |
| MINI MINI Roadster (R59) Construction Year from 201202 Fitting Position Rear Axle | 2011-11 - 2015-04 | 147 | 200 | 1598 | Convertible |
| MINI MINI Roadster (R59) Construction Year from 201202 Fitting Position Rear Axle | 2011-11 - 2015-04 | 100 | 136 | 1995 | Convertible |
| MINI MINI Roadster (R59) Construction Year from 201202 Fitting Position Rear Axle | 2011-11 - 2015-04 | 105 | 143 | 1995 | Convertible |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2009-03 - 2010-02 | 70 | 95 | 1397 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2010-03 - 2014-06 | 72 | 98 | 1598 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2010-03 - 2014-06 | 85 | 115 | 1598 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2007-10 - 2013-12 | 88 | 120 | 1598 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2010-03 - 2014-06 | 90 | 122 | 1598 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2007-10 - 2014-06 | 120 | 163 | 1598 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2007-08 - 2010-07 | 128 | 174 | 1598 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2010-03 - 2014-06 | 135 | 184 | 1598 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2010-03 - 2014-06 | 147 | 200 | 1598 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2010-03 - 2014-06 | 66 | 90 | 1598 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2007-10 - 2010-02 | 80 | 109 | 1560 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2010-03 - 2014-06 | 82 | 112 | 1598 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2011-02 - 2014-06 | 82 | 112 | 1995 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2011-02 - 2014-06 | 105 | 143 | 1995 | Estate |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2011-02 - 2014-06 | 100 | 136 | 1995 | Estate |
| MINI MINI CLUBVAN (R55) Fitting Position Rear Axle | 2012-12 - 2014-06 | 72 | 98 | 1598 | Estate Van |
| MINI MINI CLUBVAN (R55) Fitting Position Rear Axle | 2012-12 - 2014-06 | 90 | 122 | 1598 | Estate Van |
| MINI MINI CLUBVAN (R55) Fitting Position Rear Axle | 2012-12 - 2014-06 | 82 | 112 | 1598 | Estate Van |
| MINI MINI CLUBVAN (R55) Fitting Position Rear Axle | 2012-12 - 2014-06 | 82 | 112 | 1995 | Estate Van |
| MINI MINI Coupe (R58) Construction Year from 201110 Fitting Position Rear Axle | 2010-12 - 2015-04 | 85 | 115 | 1598 | Coupe |
| MINI MINI Coupe (R58) Fitting Position Rear Axle | 2014-10 - 2015-05 | 88 | 120 | 1598 | Coupe |
| MINI MINI Coupe (R58) Construction Year from 201110 Fitting Position Rear Axle | 2010-12 - 2015-04 | 90 | 122 | 1598 | Coupe |
| MINI MINI Coupe (R58) Construction Year from 201110 Fitting Position Rear Axle | 2010-12 - 2015-04 | 120 | 163 | 1598 | Coupe |
| MINI MINI Coupe (R58) Construction Year from 201110 Fitting Position Rear Axle | 2010-12 - 2015-04 | 135 | 184 | 1598 | Coupe |
| MINI MINI Coupe (R58) Construction Year from 201110 Fitting Position Rear Axle | 2010-12 - 2015-04 | 147 | 200 | 1598 | Coupe |
| MINI MINI Coupe (R58) Construction Year from 201110 Fitting Position Rear Axle | 2010-12 - 2015-05 | 100 | 136 | 1995 | Coupe |
| MINI MINI Coupe (R58) Construction Year from 201110 Fitting Position Rear Axle | 2010-12 - 2015-05 | 105 | 143 | 1995 | Coupe |

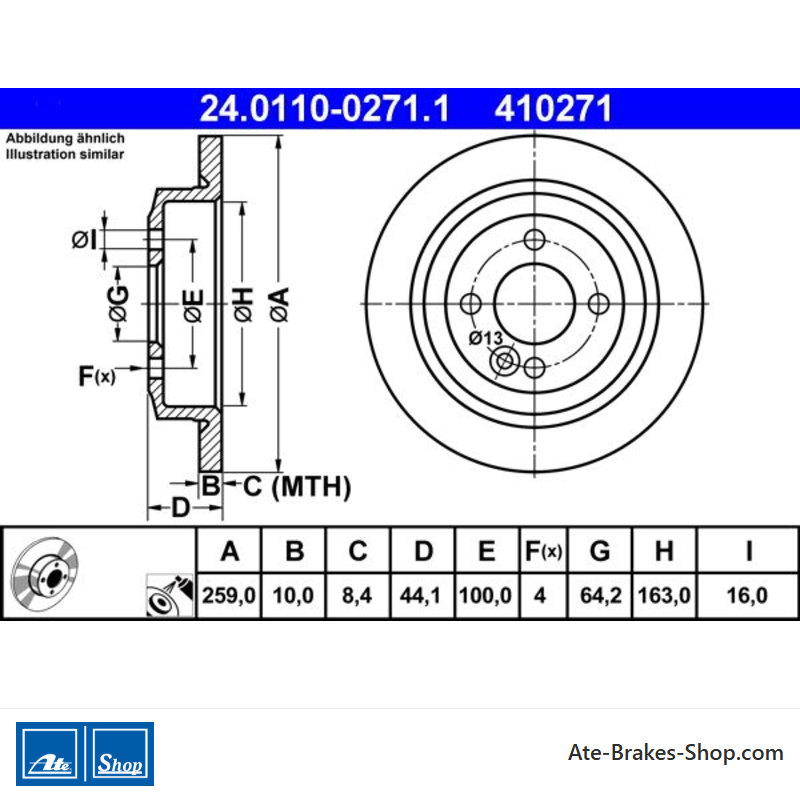

24.0110-0271.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Mini
- Número de Comercio
- 410271
- País de origen
- QU
- Altura
- 44,1
- Diámetro exterior [mm]
- 259,0
- Grosor del disco de freno [mm]
- 10,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de centrado [mm]
- 64,2
- Diámetro interior [mm]
- 163,0
- Diámetro del diámetro del diámetro [mm]
- 16,0
- Espesor mínimo [mm]
- 8,4
Referencias específicas
- ean13
- 4006633090452
- MPN
- 2401100271102
ATE 24.0110-0271.1
(240110-02711)
- Diámetro exterior [mm]: 259,0
- Diámetro interior [mm]: 163,0
- Grosor del disco de freno [mm]: 10,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 410271
