ATE Disco de freno original de 2 piezas (24011003391) para Opel
94,38 €
(impuestos inc.)
78,00 € fiscales excl.
Número de parte:
ATE 24.0110-0339.1
(240110-03391)
- Diámetro exterior [mm]: 278,0
- Diámetro interior [mm]: 149,0
- Grosor del disco de freno [mm]: 10,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 410339
Información logística:
- Código Ean: 4006633328098
- Peso: 8.13kg
Specification of ATE 24.0110-0339.1 / 240110-03391 / 24011003391:
| OE Number | Reference info |
| OPEL 5 69 122 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 569122 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 93184247 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 93184247 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 69 122 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 569122 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| OPEL ASTRA H GTC (A04) Fitting Position Rear Axle | 2005-08 - 2010-10 | 177 | 240 | 1998 | Hatchback |
| OPEL ASTRA H (A04) Fitting Position Rear Axle | 2005-03 - 2010-10 | 177 | 240 | 1998 | Hatchback |
| OPEL ZAFIRA / ZAFIRA FAMILY B (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2013-06 - 2015-04 | 88 | 120 | 1796 | MPV |
| OPEL ZAFIRA / ZAFIRA FAMILY B (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2009-07 - 2015-04 | 103 | 140 | 1796 | MPV |
| OPEL ZAFIRA / ZAFIRA FAMILY B (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2005-07 - 2015-04 | 103 | 140 | 1796 | MPV |
| OPEL ZAFIRA / ZAFIRA FAMILY B (A05) Vehicle Identification Number (VIN) from 62000001 Fitting Position Rear Axle | 2005-07 - 2010-12 | 147 | 200 | 1998 | MPV |
| OPEL ZAFIRA / ZAFIRA FAMILY B (A05) Fitting Position Rear Axle | 2006-01 - 2010-12 | 177 | 241 | 1998 | MPV |
| OPEL ZAFIRA / ZAFIRA FAMILY B (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2005-07 - 2012-12 | 110 | 150 | 2198 | MPV |
| OPEL ZAFIRA / ZAFIRA FAMILY B (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2008-01 - 2015-04 | 81 | 110 | 1686 | MPV |
| OPEL ZAFIRA / ZAFIRA FAMILY B (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2007-03 - 2015-04 | 92 | 125 | 1686 | MPV |
| OPEL ZAFIRA / ZAFIRA FAMILY B (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2005-07 - 2010-12 | 74 | 100 | 1910 | MPV |
| OPEL ZAFIRA / ZAFIRA FAMILY B (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2005-07 - 2015-04 | 88 | 120 | 1910 | MPV |
| OPEL ZAFIRA / ZAFIRA FAMILY B (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2005-07 - 2015-04 | 110 | 150 | 1910 | MPV |
| OPEL ZAFIRA B Box Body/MPV (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2005-07 - 2015-04 | 69 | 94 | 1598 | Box Body/MPV |
| OPEL ZAFIRA B Box Body/MPV (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2005-07 - 2015-04 | 103 | 140 | 1796 | Box Body/MPV |
| OPEL ZAFIRA B Box Body/MPV (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2005-07 - 2010-12 | 147 | 200 | 1998 | Box Body/MPV |
| OPEL ZAFIRA B Box Body/MPV (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2005-07 - 2011-12 | 110 | 150 | 2198 | Box Body/MPV |
| OPEL ZAFIRA B Box Body/MPV (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2008-01 - 2015-04 | 81 | 110 | 1686 | Box Body/MPV |
| OPEL ZAFIRA B Box Body/MPV (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2008-01 - 2015-04 | 92 | 125 | 1686 | Box Body/MPV |
| OPEL ZAFIRA B Box Body/MPV (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2005-07 - 2015-04 | 88 | 120 | 1910 | Box Body/MPV |
| OPEL ZAFIRA B Box Body/MPV (A05) Braking System for vehicles with reinforced brakes Fitting Position Rear Axle | 2005-07 - 2015-04 | 110 | 150 | 1910 | Box Body/MPV |

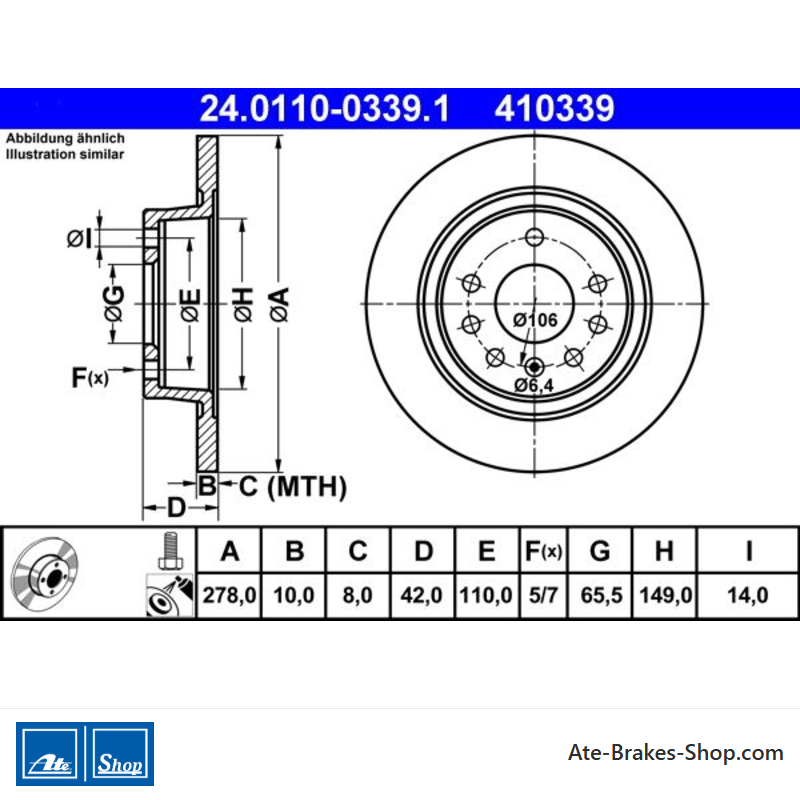

24.0110-0339.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Opel
- Número de Comercio
- 410339
- País de origen
- Chequia
- Información adicional
- con tornillos/tornillos
- Altura
- 42,0
- Diámetro exterior [mm]
- 278,0
- Grosor del disco de freno [mm]
- 10,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 110,0
- Diámetro de centrado [mm]
- 65,5
- Diámetro interior [mm]
- 149,0
- Diámetro del diámetro del diámetro [mm]
- 14,0
- Espesor mínimo [mm]
- 8,0
Referencias específicas
- ean13
- 4006633328098
- MPN
- 2401100339102
ATE 24.0110-0339.1
(240110-03391)
- Diámetro exterior [mm]: 278,0
- Diámetro interior [mm]: 149,0
- Grosor del disco de freno [mm]: 10,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 410339
