ATE Disco de freno original de 2 piezas (24011201711) para Dacia, Renault y Smart
65,34 €
(impuestos inc.)
54,00 € fiscales excl.
Número de parte:
ATE 24.0112-0171.1
(240112-01711)
- Diámetro exterior [mm]: 259,0
- Diámetro interior [mm]: 130,0
- Grosor del disco de freno [mm]: 12,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 412171
Información logística:
- Código Ean: 4006633269636
- Peso: 8.75kg
Specification of ATE 24.0112-0171.1 / 240112-01711 / 24011201711:
| OE Number | Reference info |
| RENAULT 77 01 208 252 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7701208252 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 60 01 547 683 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 6001547683 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 40 20 652 36R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 402065236R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 40 20 653 45R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 402065345R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DACIA 77 01 208 252 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DACIA 7701208252 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DACIA 60 01 547 683 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DACIA 6001547683 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DACIA 40 20 653 45R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DACIA 402065345R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SMART 453 420 00 00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SMART 4534200000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Construction Year to 201304 Fitting Position Front Axle | 2006-02 - | 55 | 75 | 1149 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Construction Year to 201304 Fitting Position Front Axle | 2006-02 - | 55 | 75 | 1149 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Construction Year to 201304 Fitting Position Front Axle | 2004-09 - | 55 | 75 | 1390 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2006-02 - 2012-12 | 55 | 75 | 1390 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Construction Year to 201304 Fitting Position Front Axle | 2010-05 - | 62 | 84 | 1598 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Construction Year to 201304 Fitting Position Front Axle | 2010-05 - | 62 | 84 | 1598 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2004-09 - | 64 | 87 | 1598 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2004-08 - 2011-03 | 64 | 87 | 1598 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Construction Year to 201304 Fitting Position Front Axle | 2006-02 - | 77 | 105 | 1598 | Saloon |
| DACIA LOGAN (LS_) Construction Year from 201101 Braking/Driving Dynamics for vehicles with ABS Construction Year to 201304 Fitting Position Front Axle | 2010-07 - | 77 | 105 | 1598 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Construction Year to 201304 Fitting Position Front Axle | 2005-09 - | 48 | 65 | 1461 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2006-01 - 2012-12 | 50 | 68 | 1461 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2010-05 - 2012-12 | 55 | 75 | 1461 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2007-09 - 2011-12 | 63 | 86 | 1461 | Saloon |
| DACIA LOGAN (LS_) Braking/Driving Dynamics for vehicles with ABS Construction Year to 201304 Fitting Position Front Axle | 2010-05 - | 65 | 88 | 1461 | Saloon |
| DACIA LOGAN II Fitting Position Front Axle | 2015-05 - | 54 | 73 | 1149 | Saloon |
| DACIA LOGAN II Fitting Position Front Axle | 2012-10 - | 55 | 75 | 1149 | Saloon |
| DACIA LOGAN II Fitting Position Front Axle | 2012-10 - | 55 | 75 | 1149 | Saloon |
| DACIA SANDERO (BS_) Construction Year to 201302 Fitting Position Front Axle | 2008-11 - 2013-06 | 55 | 75 | 1149 | Hatchback |
| DACIA SANDERO (BS_) Construction Year to 201302 Fitting Position Front Axle | 2008-11 - 2013-06 | 55 | 75 | 1149 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Front Axle | 2009-01 - 2012-12 | 53 | 72 | 1390 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Front Axle | 2008-06 - 2012-12 | 55 | 75 | 1390 | Hatchback |
| DACIA SANDERO (BS_) Construction Year to 201210 Fitting Position Front Axle | 2011-01 - 2012-12 | 60 | 82 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Construction Year to 201302 Fitting Position Front Axle | 2010-05 - 2013-06 | 62 | 84 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Front Axle | 2010-05 - 2012-10 | 62 | 84 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Front Axle | 2008-06 - 2012-12 | 64 | 87 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Front Axle | 2008-06 - 2012-12 | 64 | 87 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Front Axle | 2008-06 - 2012-12 | 64 | 87 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Front Axle | 2011-07 - 2012-12 | 77 | 105 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Front Axle | 2011-01 - 2012-12 | 77 | 105 | 1598 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Front Axle | 2008-11 - 2012-12 | 48 | 65 | 1461 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Front Axle | 2008-11 - 2012-12 | 50 | 68 | 1461 | Hatchback |
| DACIA SANDERO (BS_) Construction Year to 201302 Fitting Position Front Axle | 2010-05 - 2013-06 | 55 | 75 | 1461 | Hatchback |
| DACIA SANDERO (BS_) Fitting Position Front Axle | 2008-11 - 2012-12 | 63 | 86 | 1461 | Hatchback |
| DACIA SANDERO (BS_) Construction Year to 201302 Fitting Position Front Axle | 2010-05 - 2013-06 | 65 | 88 | 1461 | Hatchback |
| DACIA SANDERO II (B8_) Fitting Position Front Axle | 2016-12 - 2020-09 | 54 | 73 | 999 | Hatchback |
| DACIA SANDERO II (B8_) Fitting Position Front Axle | 2015-05 - | 54 | 73 | 1149 | Hatchback |
| DACIA SANDERO II (B8_) Fitting Position Front Axle | 2012-10 - | 55 | 75 | 1149 | Hatchback |
| DACIA SANDERO II (B8_) Fitting Position Front Axle | 2012-10 - | 55 | 75 | 1149 | Hatchback |
| RENAULT LOGAN I (LS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2004-09 - | 55 | 75 | 1390 | Saloon |
| RENAULT LOGAN I (LS_) Construction Year to 201304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2004-09 - | 64 | 87 | 1598 | Saloon |
| RENAULT LOGAN I Estate (KS_) Construction Year to 201304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2007-10 - | 55 | 75 | 1390 | Estate |
| RENAULT LOGAN I Estate (KS_) Construction Year to 201304 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2007-04 - | 64 | 87 | 1598 | Estate |
| RENAULT LOGAN/STEPWAY II (L8_) Fitting Position Front Axle | 2013-11 - | 55 | 75 | 1149 | Saloon |
| RENAULT LOGAN/STEPWAY II (L8_) Fitting Position Front Axle | 2014-04 - | 60 | 82 | 1598 | Saloon |
| RENAULT SANDERO/STEPWAY I (BS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2009-02 - 2013-07 | 55 | 75 | 1390 | Hatchback |
| RENAULT SANDERO/STEPWAY I (BS_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2009-02 - 2012-10 | 64 | 87 | 1598 | Hatchback |
| RENAULT TWINGO I (C06_) Construction Year from 200311 Fitting Position Front Axle | 1996-05 - 2007-06 | 43 | 58 | 1149 | Hatchback |
| RENAULT TWINGO I (C06_) Construction Year from 200311 Fitting Position Front Axle | 2000-09 - 2007-06 | 43 | 58 | 1149 | Hatchback |
| RENAULT TWINGO I (C06_) Construction Year from 200311 Fitting Position Front Axle | 2001-01 - 2007-06 | 55 | 75 | 1149 | Hatchback |
| RENAULT TWINGO II (CN0_) Construction Year to 201407 Fitting Position Front Axle | 2007-03 - 2014-09 | 43 | 58 | 1149 | Hatchback |
| RENAULT TWINGO II (CN0_) Construction Year to 201407 Fitting Position Front Axle | 2007-03 - 2014-09 | 47 | 64 | 1461 | Hatchback |
| RENAULT TWINGO III (BCM_, BCA_) Fitting Position Front Axle | 2020-05 - 2024-07 | 60 | 82 | CC | Hatchback |
| RENAULT TWINGO III (BCM_, BCA_) Fitting Position Front Axle | 2014-09 - 2019-04 | 66 | 90 | 898 | Hatchback |
| RENAULT TWINGO III (BCM_, BCA_) Fitting Position Front Axle | 2018-08 - 2019-04 | 66 | 90 | 898 | Hatchback |
| RENAULT TWINGO III (BCM_, BCA_) Fitting Position Front Axle | 2019-03 - 2021-01 | 68 | 92 | 898 | Hatchback |
| RENAULT TWINGO III (BCM_, BCA_) Fitting Position Front Axle | 2016-11 - 2019-04 | 80 | 109 | 898 | Hatchback |
| RENAULT TWINGO III (BCM_, BCA_) Fitting Position Front Axle | 2019-03 - 2024-07 | 48 | 65 | 999 | Hatchback |
| RENAULT TWINGO III (BCM_, BCA_) Fitting Position Front Axle | 2015-09 - 2019-04 | 51 | 69 | 999 | Hatchback |
| RENAULT TWINGO III (BCM_, BCA_) Fitting Position Front Axle | 2014-09 - 2019-04 | 52 | 71 | 999 | Hatchback |
| RENAULT TWINGO III (BCM_, BCA_) Fitting Position Front Axle | 2019-03 - 2021-01 | 54 | 73 | 999 | Hatchback |
| RENAULT TWINGO I Hatchback Van (S06_) Construction Year from 200311 Fitting Position Front Axle | 2001-01 - 2012-06 | 55 | 75 | 1149 | Hatchback Van |
| SMART FORFOUR Hatchback (453) Fitting Position Front Axle | 2014-11 - | 66 | 90 | 898 | Hatchback |
| SMART FORFOUR Hatchback (453) Fitting Position Front Axle | 2016-07 - | 80 | 109 | 898 | Hatchback |
| SMART FORFOUR Hatchback (453) Construction Year from 201501 Fitting Position Front Axle | 2014-11 - | 45 | 60 | 999 | Hatchback |
| SMART FORFOUR Hatchback (453) Construction Year from 201411 Fitting Position Front Axle | 2014-07 - | 52 | 71 | 999 | Hatchback |
| SMART FORTWO Coupe (453) Construction Year from 201411 Fitting Position Front Axle | 2014-09 - | 66 | 90 | 898 | Coupe |
| SMART FORTWO Coupe (453) Fitting Position Front Axle | 2016-07 - | 80 | 109 | 898 | Coupe |
| SMART FORTWO Coupe (453) Construction Year from 201501 Fitting Position Front Axle | 2014-11 - | 45 | 60 | 999 | Coupe |
| SMART FORTWO Coupe (453) Construction Year from 201411 Fitting Position Front Axle | 2014-07 - | 52 | 71 | 999 | Coupe |
| SMART FORTWO Convertible (453) Fitting Position Front Axle | 2015-09 - | 66 | 90 | 898 | Convertible |
| SMART FORTWO Convertible (453) Fitting Position Front Axle | 2016-07 - | 80 | 109 | 898 | Convertible |
| SMART FORTWO Convertible (453) Fitting Position Front Axle | 2015-09 - | 52 | 71 | 999 | Convertible |
24.0112-0171.1

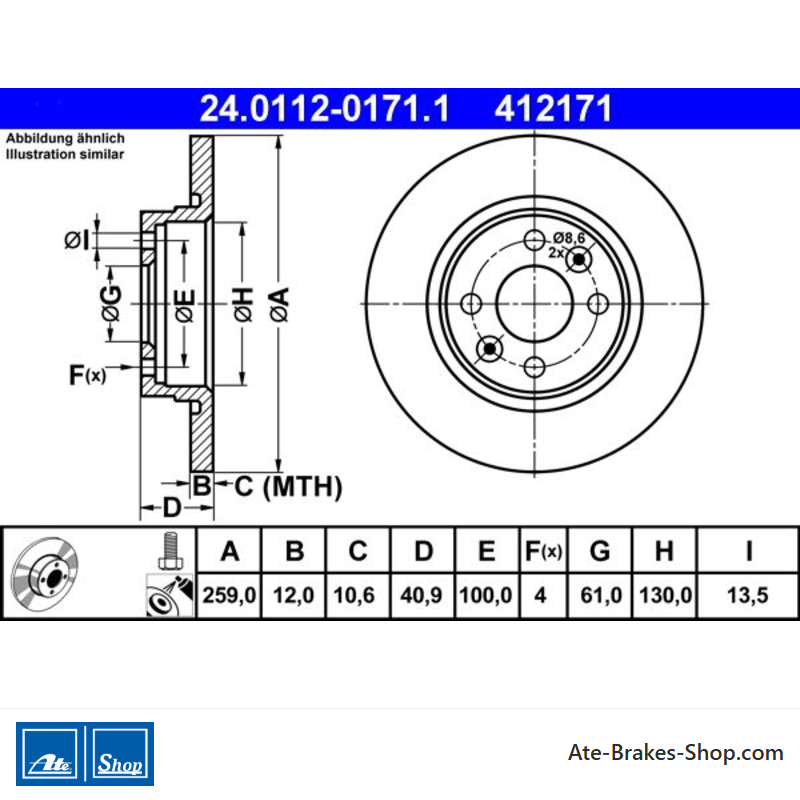

Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Dacia
Inteligente
Renault - Número de Comercio
- 412171
- País de origen
- QU
- Información adicional
- con tornillos/tornillos
- Altura
- 40,9
- Diámetro exterior [mm]
- 259,0
- Grosor del disco de freno [mm]
- 12,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de centrado [mm]
- 61,0
- Diámetro interior [mm]
- 130,0
- Diámetro del diámetro del diámetro [mm]
- 13,5
- Espesor mínimo [mm]
- 10,6
Referencias específicas
- ean13
- 4006633269636
- MPN
- 2401120171102
ATE 24.0112-0171.1
(240112-01711)
- Diámetro exterior [mm]: 259,0
- Diámetro interior [mm]: 130,0
- Grosor del disco de freno [mm]: 12,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 412171
