ATE Disco de freno original de 2 piezas (24011601261) para Ford
112,53 €
(impuestos inc.)
93,00 € fiscales excl.
Número de parte:
ATE 24.0116-0126.1
(240116-01261)
- Diámetro exterior [mm]: 280,0
- Diámetro interior [mm]: 144,5
- Grosor del disco de freno [mm]: 16,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 416126
Información logística:
- Código Ean: 4006633314671
- Peso: 11.60kg
Specification of ATE 24.0116-0126.1 / 240116-01261 / 24011601261:
| OE Number | Reference info |
| FORD 1371420 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1464031 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2262937 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Tyres for single tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 100 | 136 | 2261 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for single tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for single tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for single tyres | 2011-10 - 2014-08 | 74 | 100 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2011-09 - 2014-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 114 | 155 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 74 | 100 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 85 | 115 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 103 | 140 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-11 - 2014-08 | 103 | 140 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2007-09 - 2014-08 | 147 | 200 | 3199 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for single tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 100 | 136 | 2261 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for single tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for single tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 74 | 100 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 85 | 115 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 103 | 140 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2006-11 - 2014-08 | 103 | 140 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2007-09 - 2014-08 | 147 | 200 | 3199 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2011-09 - 2014-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2011-09 - 2014-08 | 100 | 135 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 74 | 100 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 85 | 115 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Construction Year from 200605 Construction Year to 201404 Fitting Position Rear Axle | 2006-04 - 2014-08 | 103 | 140 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2006-11 - 2014-08 | 103 | 140 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2008-02 - 2014-08 | 147 | 200 | 3199 | Bus |

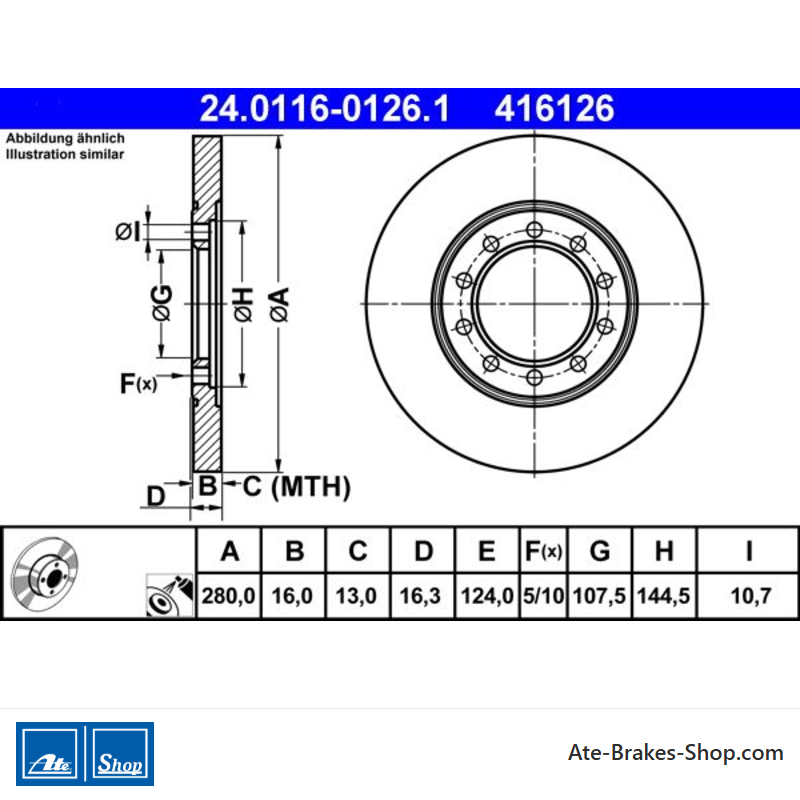

24.0116-0126.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Ford
- Número de Comercio
- 416126
- País de origen
- China
- Altura
- 16,3
- Diámetro exterior [mm]
- 280,0
- Grosor del disco de freno [mm]
- 16,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 124,0
- Diámetro de centrado [mm]
- 107,5
- Diámetro interior [mm]
- 144,5
- Diámetro del diámetro del diámetro [mm]
- 10,7
- Espesor mínimo [mm]
- 13,0
Referencias específicas
- ean13
- 4006633314671
- MPN
- 2401160126102
ATE 24.0116-0126.1
(240116-01261)
- Diámetro exterior [mm]: 280,0
- Diámetro interior [mm]: 144,5
- Grosor del disco de freno [mm]: 16,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 416126
