ATE Disco de freno original de 2 piezas (24011601371) para Ford
123,42 €
(impuestos inc.)
102,00 € fiscales excl.
Número de parte:
ATE 24.0116-0137.1
(240116-01371)
- Diámetro exterior [mm]: 308,0
- Diámetro interior [mm]: 200,0
- Grosor del disco de freno [mm]: 16,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 416137
Información logística:
- Código Ean: 4006633474597
- Peso: 13.51kg

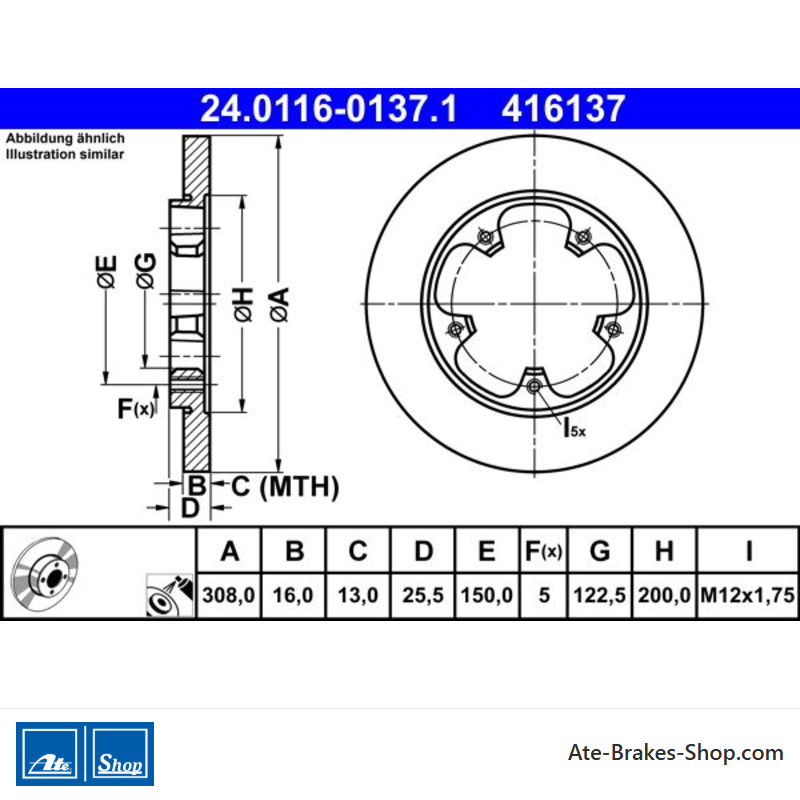

Specification of ATE 24.0116-0137.1 / 240116-01371 / 24011601371:
| OE Number | Reference info |
| FORD 1815599 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD BK31-2A315-AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2226519 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD KK31-2A315AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2022-03 - 2025-06 | 135 | 184 | CC | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2022-03 - 2025-06 | 198 | 269 | CC | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - | 77 | 105 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - | 77 | 105 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2017-01 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Tyres for vehicles with rear single tyres | 2022-05 - | 114 | 155 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Tyres for vehicles with rear single tyres | 2021-01 - | 118 | 160 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Tyres for vehicles with rear single tyres | 2023-07 - | 121 | 165 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Tyres for vehicles with rear single tyres | 2022-05 - | 121 | 165 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Tyres for vehicles with rear single tyres | 2023-07 - | 121 | 165 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2017-01 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - | 136 | 185 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - | 136 | 185 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for single tyres Fitting Position Rear Axle | 2015-08 - 2018-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2022-03 - 2025-06 | 135 | 184 | CC | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2022-03 - 2025-06 | 198 | 269 | CC | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - | 77 | 105 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - | 77 | 105 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2017-01 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Tyres for single tyres | 2021-01 - | 118 | 160 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Tyres for single tyres | 2023-07 - | 121 | 165 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Tyres for single tyres | 2022-05 - | 121 | 165 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Tyres for single tyres | 2023-07 - | 121 | 165 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2017-01 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - | 136 | 185 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - | 136 | 185 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Construction Year from 201405 Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Rear Axle Tyres for single tyres | 2022-05 - | 114 | 155 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - | 77 | 105 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - | 96 | 130 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - | 96 | 130 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - | 96 | 130 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2021-10 - | 110 | 150 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2021-10 - | 110 | 150 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2023-07 - | 121 | 165 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2022-05 - | 121 | 165 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for single tyres Fitting Position Rear Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - 2024-06 | 125 | 170 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Rear Axle Wheelbase for extended wheelbase | 2019-05 - 2024-06 | 125 | 170 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for single tyres Fitting Position Rear Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for single tyres Fitting Position Rear Axle | 2014-12 - 2018-12 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for single tyres Fitting Position Rear Axle | 2015-08 - 2018-12 | 114 | 155 | 2198 | Bus |
24.0116-0137.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Ford
- Número de Comercio
- 416137
- País de origen
- Alemania
- Altura
- 25,5
- Diámetro exterior [mm]
- 308,0
- Grosor del disco de freno [mm]
- 16,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 150,0
- Diámetro de centrado [mm]
- 122,5
- Diámetro interior [mm]
- 200,0
- Tamaño del hilo
- M12x1,75
- Espesor mínimo [mm]
- 13,0
Referencias específicas
- ean13
- 4006633474597
- MPN
- 2401160137102
ATE 24.0116-0137.1
(240116-01371)
- Diámetro exterior [mm]: 308,0
- Diámetro interior [mm]: 200,0
- Grosor del disco de freno [mm]: 16,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 416137
