ATE Disco de freno original de 2 piezas (24011701071) para Daihatsu, Subaru
65,34 €
(impuestos inc.)
54,00 € fiscales excl.
Número de parte:
ATE 24.0117-0107.1
(240117-01071)
- Diámetro exterior [mm]: 246,0
- Diámetro interior [mm]: 137,0
- Grosor del disco de freno [mm]: 17,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 417107
Información logística:
- Código Ean: 4006633301664
- Peso: 8.12kg
Specification of ATE 24.0117-0107.1 / 240117-01071 / 24011701071:
| OE Number | Reference info |
| DAIHATSU 43512-97402-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DAIHATSU COPEN (L880_, L881_) Construction Year to 201207 Fitting Position Front Axle | 2003-09 - 2012-09 | 47 | 64 | 659 | Convertible |
| DAIHATSU COPEN (L880_, L881_) Fitting Position Front Axle | 2003-09 - 2007-12 | 50 | 68 | 659 | Convertible |
| DAIHATSU COPEN (L880_, L881_) Construction Year to 201207 Fitting Position Front Axle | 2006-03 - 2012-09 | 64 | 87 | 1298 | Convertible |
| DAIHATSU CUORE VII (L275_, L285_, L276_) Construction Year from 200709 Construction Year to 201301 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2007-04 - | 51 | 70 | 998 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2005-01 - 2013-06 | 51 | 70 | 998 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Front Axle | 2005-01 - | 64 | 87 | 1298 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year from 200701 Construction Year to 201301 Fitting Position Front Axle | 2005-04 - | 64 | 87 | 1298 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Front Axle | 2008-03 - | 67 | 91 | 1298 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Front Axle | 2008-03 - | 67 | 91 | 1298 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Front Axle | 2008-03 - | 76 | 103 | 1495 | Hatchback |
| DAIHATSU YRV (M2) Construction Year to 200608 Fitting Position Front Axle | 2002-07 - | 95 | 129 | 1298 | MPV |
| SUBARU JUSTY IV Construction Year from 200709 Construction Year to 201105 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2007-01 - | 51 | 69 | 998 | Hatchback |
| SUBARU JUSTY IV Construction Year to 201105 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2007-09 - 2012-03 | 51 | 69 | 998 | Hatchback |
| SUBARU JUSTY IV Construction Year to 201105 Fitting Position Front Axle Rim Size [inch] 14.0 Inch Country Specific Design Switzerland | 2008-03 - | 67 | 91 | 1298 | Hatchback |

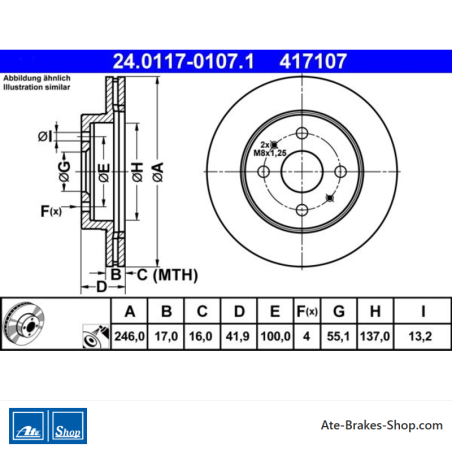

24.0117-0107.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Daihatsu
Subaru - Número de Comercio
- 417107
- País de origen
- China
- Altura
- 41,9
- Diámetro exterior [mm]
- 246,0
- Grosor del disco de freno [mm]
- 17,0
- Tipo de disco de freno
- Ventilado
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de centrado [mm]
- 55,1
- Diámetro interior [mm]
- 137,0
- Diámetro del diámetro del diámetro [mm]
- 13,2
- Espesor mínimo [mm]
- 16,0
Referencias específicas
- ean13
- 4006633301664
- MPN
- 2401170107102
ATE 24.0117-0107.1
(240117-01071)
- Diámetro exterior [mm]: 246,0
- Diámetro interior [mm]: 137,0
- Grosor del disco de freno [mm]: 17,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 417107
