ATE Disco de freno original de 2 piezas (24012201301) para Alfa Romeo, Fiat, Lancia
112,53 €
(impuestos inc.)
93,00 € fiscales excl.
Número de parte:
ATE 24.0122-0130.1
(240122-01301)
- Diámetro exterior [mm]: 257,2
- Diámetro interior [mm]: 127,0
- Grosor del disco de freno [mm]: 22,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número comercial: 422130
Información logística:
- Código Ean: 4006633112758
- Peso: 11.01kg
Specification of ATE 24.0122-0130.1 / 240122-01301 / 24012201301:
| OE Number | Reference info |
| FIAT 82433789 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 82451441 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60807625 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60805172 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 82451747 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 46445005 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60801751 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60812685 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO 164 (164_) Construction Year from 199109 Fitting Position Front Axle | 1987-06 - 1992-08 | 105 | 143 | 1962 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year to 199108 Vehicle Identification Number (VIN) from 6.142.574 Fitting Position Front Axle | 1987-06 - 1992-08 | 105 | 143 | 1962 | Saloon |
| ALFA ROMEO 164 (164_) Fitting Position Front Axle | 1992-09 - 1998-09 | 106 | 144 | 1995 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year to 199108 Vehicle Identification Number (VIN) from 6.142.574 Fitting Position Front Axle | 1987-06 - 1992-09 | 109 | 148 | 1962 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year from 199109 Fitting Position Front Axle | 1987-06 - 1992-09 | 109 | 148 | 1962 | Saloon |
| FIAT CROMA (154_) Vehicle Identification Number (VIN) from 0182985 Braking/Driving Dynamics for vehicles with ABS Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1986-03 - 1990-09 | 83 | 113 | 1995 | Hatchback |
| FIAT CROMA (154_) Construction Year from 199011 Braking/Driving Dynamics for vehicles with ABS Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1987-10 - 1996-08 | 85 | 116 | 1995 | Hatchback |
| FIAT CROMA (154_) Construction Year from 199011 Braking/Driving Dynamics for vehicles with ABS Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1987-03 - 1992-09 | 88 | 120 | 1995 | Hatchback |
| FIAT CROMA (154_) Construction Year to 199010 Vehicle Identification Number (VIN) from 0182985 Braking/Driving Dynamics for vehicles with ABS Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1987-03 - 1992-09 | 88 | 120 | 1995 | Hatchback |
| FIAT CROMA (154_) Construction Year from 199212 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1992-08 - 1996-08 | 101 | 137 | 1995 | Hatchback |
| FIAT CROMA (154_) Construction Year from 199011 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1987-06 - 1996-08 | 110 | 150 | 1995 | Hatchback |
| FIAT CROMA (154_) Vehicle Identification Number (VIN) from 0182985 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1986-11 - 1988-11 | 111 | 151 | 1995 | Hatchback |
| FIAT CROMA (154_) Vehicle Identification Number (VIN) from 0182985 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1985-12 - 1990-06 | 114 | 155 | 1995 | Hatchback |
| FIAT CROMA (154_) Construction Year from 198812 Construction Year to 199010 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1987-08 - 1992-10 | 66 | 90 | 1929 | Hatchback |
| FIAT CROMA (154_) Construction Year from 199011 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1987-08 - 1992-10 | 66 | 90 | 1929 | Hatchback |
| FIAT CROMA (154_) Construction Year to 199610 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1992-11 - 1996-12 | 69 | 94 | 1929 | Hatchback |
| FIAT CROMA (154_) Vehicle Identification Number (VIN) from 0182985 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1985-12 - 1989-12 | 55 | 75 | 2499 | Hatchback |
| FIAT CROMA (154_) Vehicle Identification Number (VIN) from 0182985 Fitting Position Front Axle | 1985-12 - 1989-08 | 74 | 101 | 2445 | Hatchback |
| FIAT CROMA (154_) Fitting Position Front Axle | 1991-12 - 1996-08 | 77 | 105 | 2500 | Hatchback |
| FIAT CROMA (154_) Construction Year from 199011 Fitting Position Front Axle | 1989-05 - 1996-08 | 85 | 115 | 2500 | Hatchback |
| LANCIA THEMA (834_) Construction Year from 198902 Braking/Driving Dynamics for vehicles with ABS Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1987-09 - 1992-05 | 85 | 115 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198902 Braking/Driving Dynamics for vehicles with ABS Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1988-09 - 1992-05 | 86 | 117 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198910 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1989-02 - 1992-05 | 104 | 141 | 1995 | Saloon |
| LANCIA THEMA (834_) Braking/Driving Dynamics for vehicles with ABS Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1989-02 - 1992-05 | 104 | 141 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198910 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1988-05 - 1992-08 | 108 | 147 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 199210 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1992-08 - 1993-12 | 112 | 152 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198902 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1988-06 - 1992-05 | 108 | 147 | 2849 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198902 Fitting Position Front Axle | 1988-06 - 1992-05 | 85 | 115 | 2499 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198902 Fitting Position Front Axle | 1988-05 - 1992-07 | 77 | 105 | 2500 | Saloon |
| LANCIA THEMA (834_) Construction Year from 199210 Fitting Position Front Axle | 1992-05 - 1994-07 | 85 | 116 | 2500 | Saloon |
| LANCIA THEMA SW (834_) Construction Year from 198910 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1989-05 - 1992-08 | 108 | 147 | 1995 | Estate |
| LANCIA THEMA SW (834_) Construction Year from 199210 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1992-05 - 1994-07 | 112 | 152 | 1995 | Estate |
| LANCIA THEMA SW (834_) Construction Year to 199209 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1992-05 - 1994-07 | 112 | 152 | 1995 | Estate |
| LANCIA THEMA SW (834_) Construction Year to 199209 Braking/Driving Dynamics for vehicles with ABS Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1992-05 - 1994-07 | 112 | 152 | 1995 | Estate |
| LANCIA THEMA SW (834_) Construction Year from 198902 Fitting Position Front Axle | 1987-03 - 1990-09 | 74 | 101 | 2445 | Estate |
| LANCIA THEMA SW (834_) Construction Year from 198902 Fitting Position Front Axle | 1988-06 - 1992-05 | 85 | 115 | 2499 | Estate |
| LANCIA THEMA SW (834_) Construction Year from 198902 Fitting Position Front Axle | 1988-05 - 1992-07 | 77 | 105 | 2500 | Estate |
| LANCIA THEMA SW (834_) Construction Year to 199209 Fitting Position Front Axle | 1992-09 - 1994-07 | 85 | 116 | 2500 | Estate |
| LANCIA THEMA SW (834_) Construction Year from 199210 Fitting Position Front Axle | 1992-09 - 1994-07 | 85 | 116 | 2500 | Estate |

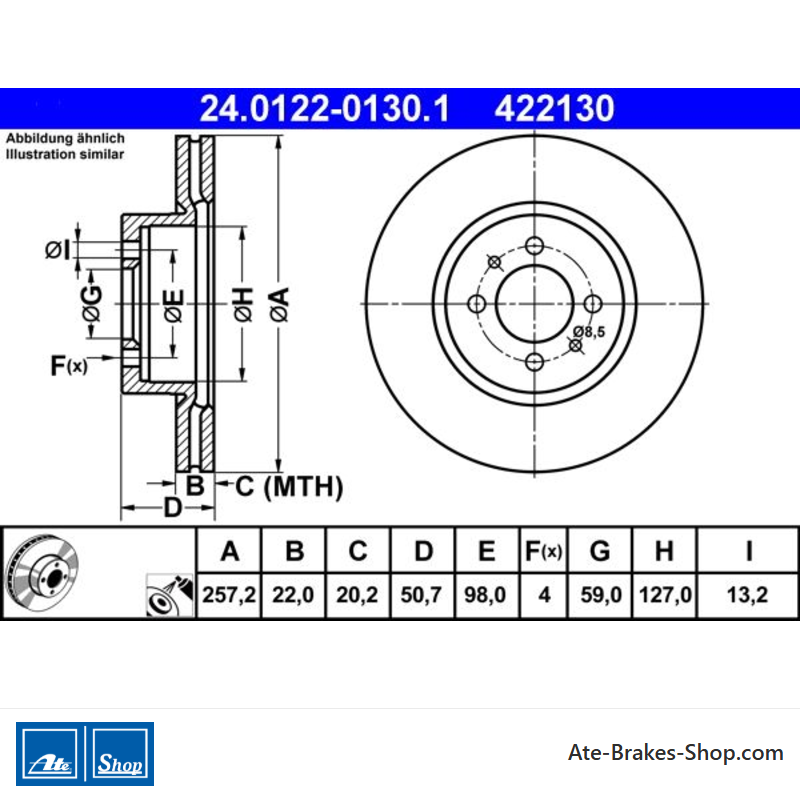

24.0122-0130.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Alfa Romeo
Fiat
Lancia - Número de Comercio
- 422130
- País de origen
- Italia
- Altura
- 50,7
- Diámetro exterior [mm]
- 257,2
- Grosor del disco de freno [mm]
- 22,0
- Tipo de disco de freno
- Ventilado
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 98,0
- Diámetro de centrado [mm]
- 59,0
- Diámetro interior [mm]
- 127,0
- Diámetro del diámetro del diámetro [mm]
- 13,2
- Espesor mínimo [mm]
- 20,2
Referencias específicas
- ean13
- 4006633112758
- MPN
- 2401220130101
ATE 24.0122-0130.1
(240122-01301)
- Diámetro exterior [mm]: 257,2
- Diámetro interior [mm]: 127,0
- Grosor del disco de freno [mm]: 22,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número comercial: 422130
