ATE Disco de freno original de 2 piezas (24012202671) para Renault
163,35 €
(impuestos inc.)
135,00 € fiscales excl.
Número de parte:
ATE 24.0122-0267.1
(240122-02671)
- Diámetro exterior [mm]: 290,0
- Diámetro interior [mm]: 172,0
- Grosor del disco de freno [mm]: 22,0
- Número de agujeros de perno: 8
- 2 piezas de disco de freno
- Número de intercambio: 422267
Información logística:
- Código Ean: 4006633339148
- Peso: 16.06kg
Specification of ATE 24.0122-0267.1 / 240122-02671 / 24012202671:
| OE Number | Reference info |
| RENAULT 50 10 260 609 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 5010260609 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT MASCOTT Van (FH_) Fitting Position Rear Axle | 1999-01 - 2004-06 | 78 | 106 | 2798 | Van |
| RENAULT MASCOTT Van (FH_) Fitting Position Rear Axle | 1999-01 - 2004-06 | 107 | 145 | 2798 | Van |
| RENAULT MASCOTT Platform/Chassis (UH_, HH_) Fitting Position Rear Axle | 1999-01 - 2005-06 | 78 | 106 | 2798 | Platform/Chassis |
| RENAULT MASTER PRO Van (FH__) Fitting Position Rear Axle | 2005-06 - 2010-04 | 85 | 116 | 2953 | Van |
| RENAULT MASTER PRO Van (FH__) Fitting Position Rear Axle | 2004-05 - 2010-04 | 115 | 156 | 2953 | Van |
| RENAULT MASTER PRO Platform/Chassis (HH__, UH__) Fitting Position Rear Axle | 2005-06 - 2010-04 | 96 | 131 | 2953 | Platform/Chassis |
| RENAULT MASTER PRO Platform/Chassis (HH__, UH__) Fitting Position Rear Axle | 2005-06 - 2010-04 | 110 | 150 | 2953 | Platform/Chassis |
| RENAULT TRUCKS MASCOTT Van Construction Year to 200106 Fitting Position Rear Axle | 1999-01 - 2001-12 | 63 | 86 | 2800 | Van |
| RENAULT TRUCKS MASCOTT Van Fitting Position Rear Axle | 1999-01 - 2004-06 | 78 | 106 | 2800 | Van |
| RENAULT TRUCKS MASCOTT Van Fitting Position Rear Axle | 1999-01 - 2004-06 | 78 | 106 | 2800 | Van |
| RENAULT TRUCKS MASCOTT Van Fitting Position Rear Axle | 1999-01 - 2004-06 | 78 | 106 | 2800 | Van |
| RENAULT TRUCKS MASCOTT Van Fitting Position Rear Axle | 1999-01 - 2004-06 | 92 | 125 | 2800 | Van |
| RENAULT TRUCKS MASCOTT Van Fitting Position Rear Axle | 1999-01 - 2004-06 | 92 | 125 | 2800 | Van |
| RENAULT TRUCKS MASCOTT Van Fitting Position Rear Axle | 2001-01 - 2004-06 | 103 | 140 | 2800 | Van |
| RENAULT TRUCKS MASCOTT Van Fitting Position Rear Axle | 2001-01 - 2004-06 | 103 | 140 | 2800 | Van |
| RENAULT TRUCKS MASCOTT Van Fitting Position Rear Axle | 2001-10 - 2004-06 | 107 | 146 | 2798 | Van |
| RENAULT TRUCKS MASCOTT Van Fitting Position Rear Axle | 2001-10 - 2004-06 | 107 | 146 | 2798 | Van |
| RENAULT TRUCKS MASCOTT Van Fitting Position Rear Axle | 2001-10 - 2004-06 | 107 | 146 | 2798 | Van |
| RENAULT TRUCKS MASCOTT Platform/Chassis Construction Year to 200106 Fitting Position Rear Axle | 1999-01 - 2001-12 | 63 | 86 | 2800 | Platform/Chassis |
| RENAULT TRUCKS MASCOTT Platform/Chassis Fitting Position Rear Axle | 1999-01 - 2004-06 | 78 | 106 | 2800 | Platform/Chassis |
| RENAULT TRUCKS MASCOTT Platform/Chassis Fitting Position Rear Axle | 2001-01 - 2004-06 | 103 | 140 | 2800 | Platform/Chassis |
| RENAULT TRUCKS MASCOTT Platform/Chassis Fitting Position Rear Axle | 2001-10 - 2004-06 | 107 | 146 | 2798 | Platform/Chassis |
| RENAULT TRUCKS MASCOTT Platform/Chassis Fitting Position Rear Axle | 2001-10 - 2004-06 | 107 | 146 | 2798 | Platform/Chassis |
24.0122-0267.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Renault
- Número de Comercio
- 422267
- País de origen
- EU
- Información adicional
- sin anillo sensor ABS

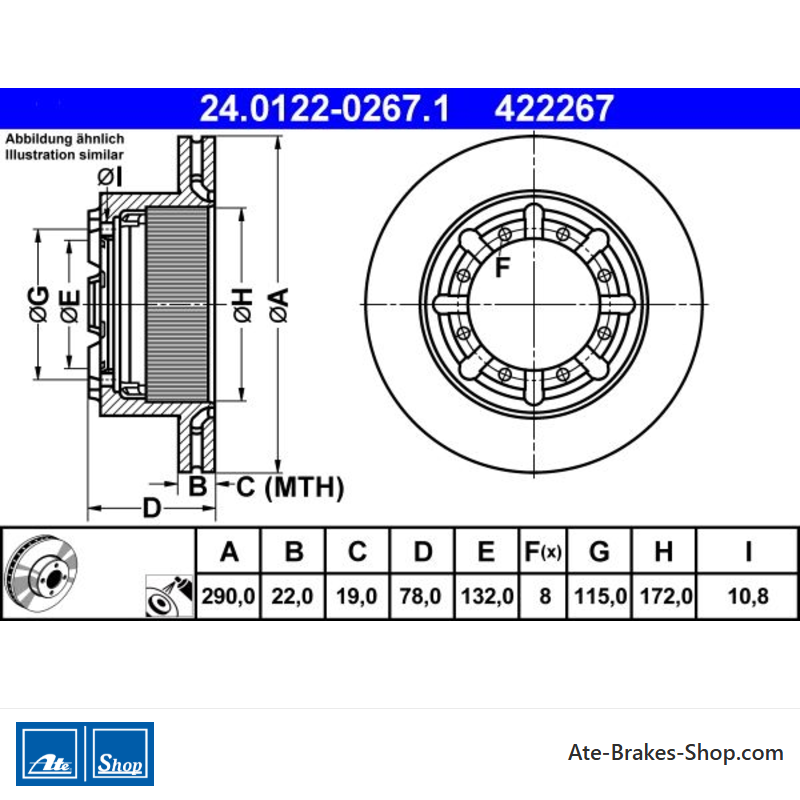

- Altura
- 78,0
- Diámetro exterior [mm]
- 290,0
- Grosor del disco de freno [mm]
- 22,0
- Tipo de disco de freno
- Ventilado
- Procesamiento
- Aleados/de alto contenido de carbono
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 8
- Diámetro del agujero del perno [mm]
- 132,0
- Diámetro de centrado [mm]
- 115,0
- Diámetro interior [mm]
- 172,0
- Diámetro del diámetro del diámetro [mm]
- 10,8
- Espesor mínimo [mm]
- 19,0
Referencias específicas
- ean13
- 4006633339148
- MPN
- 2401220267102
ATE 24.0122-0267.1
(240122-02671)
- Diámetro exterior [mm]: 290,0
- Diámetro interior [mm]: 172,0
- Grosor del disco de freno [mm]: 22,0
- Número de agujeros de perno: 8
- 2 piezas de disco de freno
- Número de intercambio: 422267
