ATE Disco de freno original de 2 piezas (24012401781) para Chrysler
search
  • ATE Disco de freno original de 2 piezas (24012401781) para Chrysler
  • ATE Disco de freno original de 2 piezas (24012401781) para Chrysler
  • ATE Disco de freno original de 2 piezas (24012401781) para Chrysler

ATE Disco de freno original de 2 piezas (24012401781) para Chrysler

90,75 € (impuestos inc.)

75,00 € fiscales excl.

Número de parte:

ATE 24.0124-0178.1
(240124-01781)

  • Diámetro exterior [mm]: 282,5
  • Diámetro interior [mm]: 159,8
  • Grosor del disco de freno [mm]: 24,0
  • Número de agujeros de perno: 5
  • 2 piezas de disco de freno
  • Número de intercambio: 424178
Información logística:
73,5Haz clic aquí para obtener información detallada.
  • Código Ean: 4006633246101
  • Peso: 12.77kg
Cantidad

Specification of ATE 24.0124-0178.1 / 240124-01781 / 24012401781:

OE NumberReference info
CHRYSLER 4683 260Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 4683260Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 4683 432Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 4683432Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 4721 820Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 4721820Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 4721 820AEPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 4721820AEPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 4721 821Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 4721821Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 0 4683 260Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 04683260Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 0 4683 432Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 04683432Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 0 4721 820Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 04721820Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 0 4721 820AEPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 04721820AEPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 0 4721 821Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
CHRYSLER 04721821Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_)

Fitting Position Front Axle

Rim Size [inch] 15.0 Inch		1995-01 - 2001-03981331995MPV
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_)

Fitting Position Front Axle

Rim Size [inch] 15.0 Inch		1995-01 - 2001-031111512429MPV
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_)

Fitting Position Front Axle

Rim Size [inch] 15.0 Inch		1997-02 - 2001-031111512429MPV
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_)

Fitting Position Front Axle

Rim Size [inch] 15.0 Inch		1995-01 - 2001-031121522972MPV
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_)

Fitting Position Front Axle

Rim Size [inch] 15.0 Inch		1995-01 - 2001-031161583301MPV
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_)

Fitting Position Front Axle

Rim Size [inch] 15.0 Inch		1995-01 - 2001-031221663778MPV
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_)

Fitting Position Front Axle

Rim Size [inch] 15.0 Inch		1995-01 - 2001-031311783778MPV
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_)

Fitting Position Front Axle

Rim Size [inch] 15.0 Inch		1995-01 - 2001-03851162499MPV
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_)

Fitting Position Front Axle

Rim Size [inch] 15.0 Inch		1995-10 - 2001-03851162499MPV

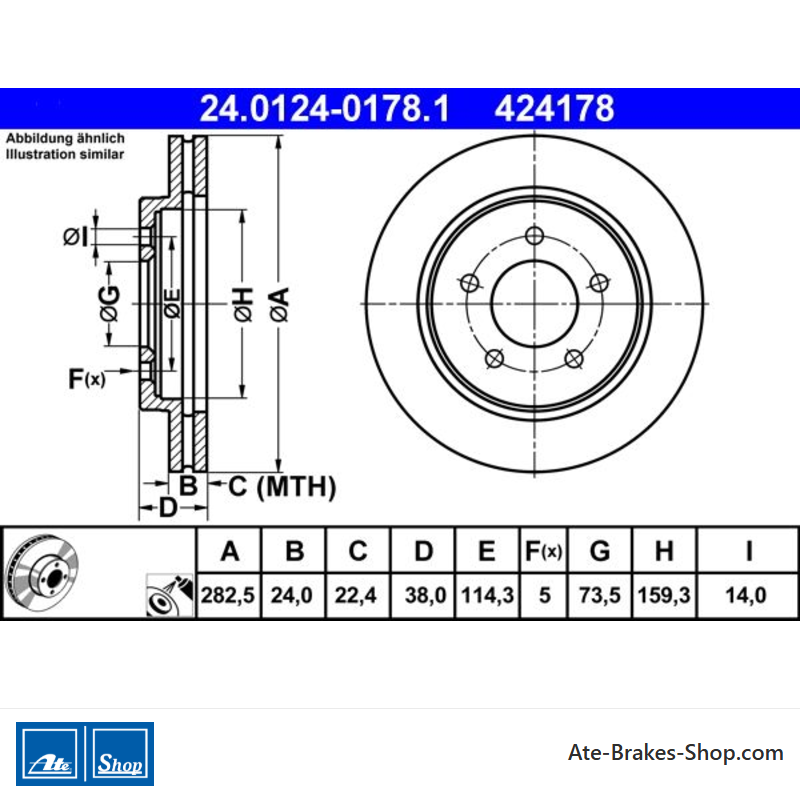

24.0124-0178.1

Hoja técnica

Estado del artículo
Ordenable
Marca de automóviles
Chrysler
Número de Comercio
424178
País de origen
QU
Altura
38,0
Diámetro exterior [mm]
282,5
Grosor del disco de freno [mm]
24,0
Tipo de disco de freno
Ventilado
Superficie
Revestido
Número de agujeros para los tornillos
5
Diámetro del agujero del perno [mm]
114,3
Diámetro de centrado [mm]
73,5
Diámetro interior [mm]
159,8
Diámetro del diámetro del diámetro [mm]
14,0
Espesor mínimo [mm]
22,4

Referencias específicas

ean13
4006633246101
MPN
2401240178102
