ATE Disco de freno original de 2 piezas (24012401841) para Hyundai y Kia
101,64 €
(impuestos inc.)
84,00 € fiscales excl.
Número de parte:
ATE 24.0124-0184.1
(240124-01841)
- Diámetro exterior [mm]: 257,0
- Diámetro interior [mm]: 141,5
- Grosor del disco de freno [mm]: 24,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 424184
Información logística:
- Código Ean: 4006633275286
- Peso: 11.95kg
Specification of ATE 24.0124-0184.1 / 240124-01841 / 24012401841:
| OE Number | Reference info |
| HYUNDAI 51712-2D310 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 51712-2D300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 51712-17000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-17000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-2D300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-2D310 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI ELANTRA III Saloon (XD) Construction Year to 200307 Fitting Position Front Axle | 2000-06 - 2006-07 | 66 | 90 | 1599 | Saloon |
| HYUNDAI ELANTRA III Saloon (XD) Construction Year from 200308 Fitting Position Front Axle | 2003-05 - 2006-05 | 77 | 105 | 1599 | Saloon |
| HYUNDAI ELANTRA III Saloon (XD) Construction Year to 200307 Fitting Position Front Axle | 2000-06 - 2006-07 | 79 | 107 | 1599 | Saloon |
| HYUNDAI ELANTRA III Saloon (XD) Construction Year to 200605 Fitting Position Front Axle | 2000-06 - 2006-07 | 97 | 132 | 1795 | Saloon |
| HYUNDAI ELANTRA III Saloon (XD) Construction Year to 200605 Fitting Position Front Axle | 2000-06 - 2006-07 | 102 | 139 | 1975 | Saloon |
| HYUNDAI ELANTRA III Saloon (XD) Construction Year to 200605 Fitting Position Front Axle | 2000-06 - 2006-07 | 104 | 141 | 1975 | Saloon |
| HYUNDAI ELANTRA III Saloon (XD) Construction Year to 200605 Fitting Position Front Axle | 2003-10 - 2006-07 | 105 | 143 | 1975 | Saloon |
| HYUNDAI ELANTRA III Saloon (XD) Construction Year to 200306 Fitting Position Front Axle | 2001-04 - 2006-07 | 83 | 113 | 1991 | Saloon |
| HYUNDAI ELANTRA III (XD) Fitting Position Front Axle | 2000-06 - 2006-07 | 66 | 90 | 1599 | Hatchback |
| HYUNDAI ELANTRA III (XD) Construction Year from 200308 Construction Year to 200605 Fitting Position Front Axle | 2003-05 - 2006-07 | 77 | 105 | 1599 | Hatchback |
| HYUNDAI ELANTRA III (XD) Construction Year to 200307 Fitting Position Front Axle | 2000-06 - 2006-07 | 79 | 107 | 1599 | Hatchback |
| HYUNDAI ELANTRA III (XD) Construction Year to 200605 Fitting Position Front Axle | 2000-06 - 2006-07 | 97 | 132 | 1795 | Hatchback |
| HYUNDAI ELANTRA III (XD) Construction Year to 200605 Fitting Position Front Axle | 2000-06 - 2006-07 | 102 | 139 | 1975 | Hatchback |
| HYUNDAI ELANTRA III (XD) Construction Year to 200605 Fitting Position Front Axle | 2000-06 - 2006-07 | 104 | 141 | 1975 | Hatchback |
| HYUNDAI ELANTRA III (XD) Construction Year to 200605 Fitting Position Front Axle | 2003-10 - 2006-07 | 105 | 143 | 1975 | Hatchback |
| HYUNDAI ELANTRA III (XD) Construction Year to 200306 Fitting Position Front Axle | 2001-04 - 2006-07 | 83 | 113 | 1991 | Hatchback |
| HYUNDAI MATRIX (FC) Fitting Position Front Axle | 2002-01 - 2005-12 | 66 | 90 | 1599 | MPV |
| HYUNDAI MATRIX (FC) Fitting Position Front Axle | 2001-06 - 2010-08 | 76 | 103 | 1599 | MPV |
| HYUNDAI MATRIX (FC) Fitting Position Front Axle | 2001-06 - 2010-08 | 90 | 122 | 1795 | MPV |
| HYUNDAI MATRIX (FC) Fitting Position Front Axle | 2001-10 - 2010-08 | 60 | 82 | 1493 | MPV |
| HYUNDAI MATRIX (FC) Fitting Position Front Axle | 2005-08 - 2010-08 | 81 | 110 | 1493 | MPV |
| HYUNDAI MATRIX (FC) Fitting Position Front Axle | 2004-12 - 2010-08 | 75 | 102 | 1493 | MPV |
| KIA CERATO I Saloon (LD) Fitting Position Front Axle Braking/Driving Dynamics for vehicles without ABS | 2006-05 - 2009-12 | 90 | 122 | 1591 | Saloon |
| KIA CERATO I Saloon (LD) Fitting Position Front Axle Braking/Driving Dynamics for vehicles without ABS | 2004-04 - 2009-12 | 77 | 105 | 1599 | Saloon |
| KIA CERATO I Saloon (LD) Fitting Position Front Axle Braking/Driving Dynamics for vehicles without ABS | 2005-07 - 2006-08 | 54 | 73 | 1493 | Saloon |
| KIA CERATO I Saloon (LD) Fitting Position Front Axle Braking/Driving Dynamics for vehicles without ABS | 2005-07 - 2009-12 | 66 | 90 | 1493 | Saloon |
| KIA CERATO I Saloon (LD) Fitting Position Front Axle Braking/Driving Dynamics for vehicles without ABS | 2005-07 - 2006-08 | 75 | 102 | 1493 | Saloon |
| KIA CERATO I Saloon (LD) Fitting Position Front Axle Braking/Driving Dynamics for vehicles without ABS | 2005-06 - 2009-12 | 85 | 115 | 1582 | Saloon |

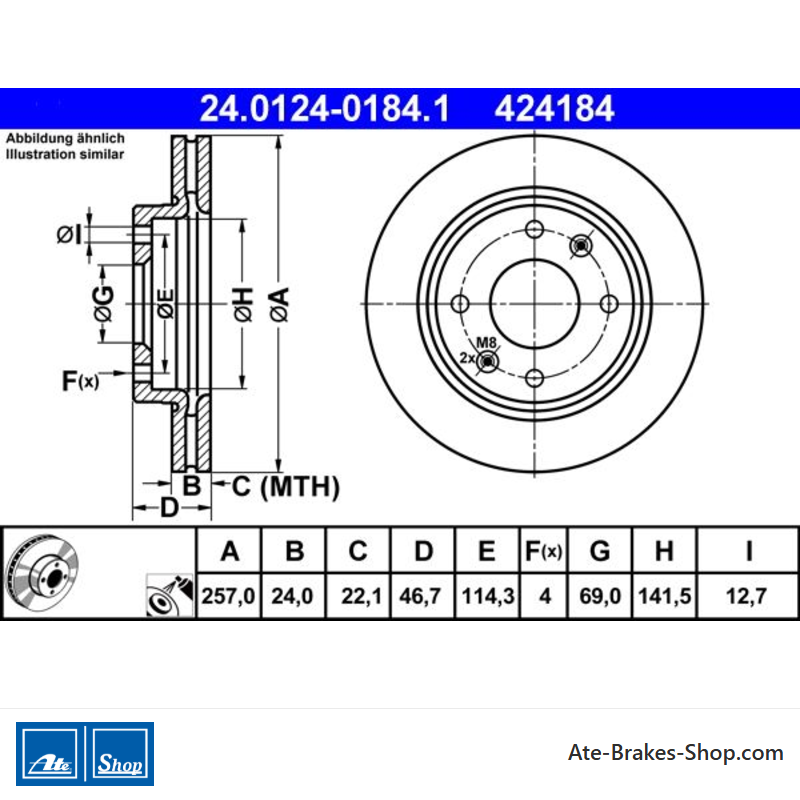

24.0124-0184.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Hyundai
Kia - Número de Comercio
- 424184
- País de origen
- China
- Altura
- 46,7
- Diámetro exterior [mm]
- 257,0
- Grosor del disco de freno [mm]
- 24,0
- Tipo de disco de freno
- Ventilado
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 114,3
- Diámetro de centrado [mm]
- 69,0
- Diámetro interior [mm]
- 141,5
- Diámetro del diámetro del diámetro [mm]
- 12,7
- Espesor mínimo [mm]
- 22,1
Referencias específicas
- ean13
- 4006633275286
- MPN
- 2401240184102
ATE 24.0124-0184.1
(240124-01841)
- Diámetro exterior [mm]: 257,0
- Diámetro interior [mm]: 141,5
- Grosor del disco de freno [mm]: 24,0
- Número de agujeros de perno: 4
- 2 piezas de disco de freno
- Número de intercambio: 424184
