ATE Disco de freno original de 2 piezas (24012802141) para Citroën, Fiat, Peugeot, Toyota
141,57 €
(impuestos inc.)
117,00 € fiscales excl.
Número de parte:
ATE 24.0128-0214.1
(240128-02141)
- Diámetro exterior [mm]: 280,0
- Diámetro interior [mm]: 152,0
- Grosor del disco de freno [mm]: 28,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 428214
Información logística:
- Código Ean: 4006633313100
- Peso: 16.23kg
Specification of ATE 24.0128-0214.1 / 240128-02141 / 24012802141:
| OE Number | Reference info |
| CITROËN 4249 21 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424921 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 J9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249J9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9467548387 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9404249878 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 1401416880 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 20 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424920 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 87 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424987 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 J9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249J9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA SU001-A1063 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN JUMPY II Platform/Chassis Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-06 - 2016-03 | 66 | 90 | 1560 | Platform/Chassis |
| CITROËN JUMPY II Platform/Chassis Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-06 - 2016-03 | 66 | 90 | 1560 | Platform/Chassis |
| CITROËN JUMPY II Van Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Van |
| CITROËN JUMPY II Van Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Van |
| CITROËN JUMPY II (VF7) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| CITROËN JUMPY II (VF7) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| FIAT SCUDO Van (270_, 272_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2011-02 - 2016-03 | 66 | 90 | 1560 | Van |
| FIAT SCUDO Van (270_, 272_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Van |
| FIAT SCUDO Platform/Chassis (270_, 272_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Platform/Chassis |
| FIAT SCUDO Bus (270_, 272_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2011-02 - 2016-03 | 66 | 90 | 1560 | Bus |
| FIAT SCUDO Bus (270_, 272_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - | 66 | 90 | 1560 | Van |
| PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - | 66 | 90 | 1560 | Van |
| PEUGEOT EXPERT Platform/Chassis Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - | 66 | 90 | 1560 | Platform/Chassis |
| PEUGEOT EXPERT Platform/Chassis Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - | 66 | 90 | 1560 | Platform/Chassis |
| PEUGEOT EXPERT TEPEE (VF3X_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| PEUGEOT EXPERT TEPEE (VF3X_) Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2007-01 - 2016-03 | 66 | 90 | 1560 | Bus |
| TOYOTA PROACE Van (MDX_) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2013-06 - 2016-03 | 66 | 90 | 1560 | Van |
| TOYOTA PROACE Van (MDX_) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2013-06 - 2016-03 | 94 | 128 | 1997 | Van |
| TOYOTA PROACE Van (MDX_) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 2013-06 - 2016-03 | 120 | 163 | 1997 | Van |
24.0128-0214.1

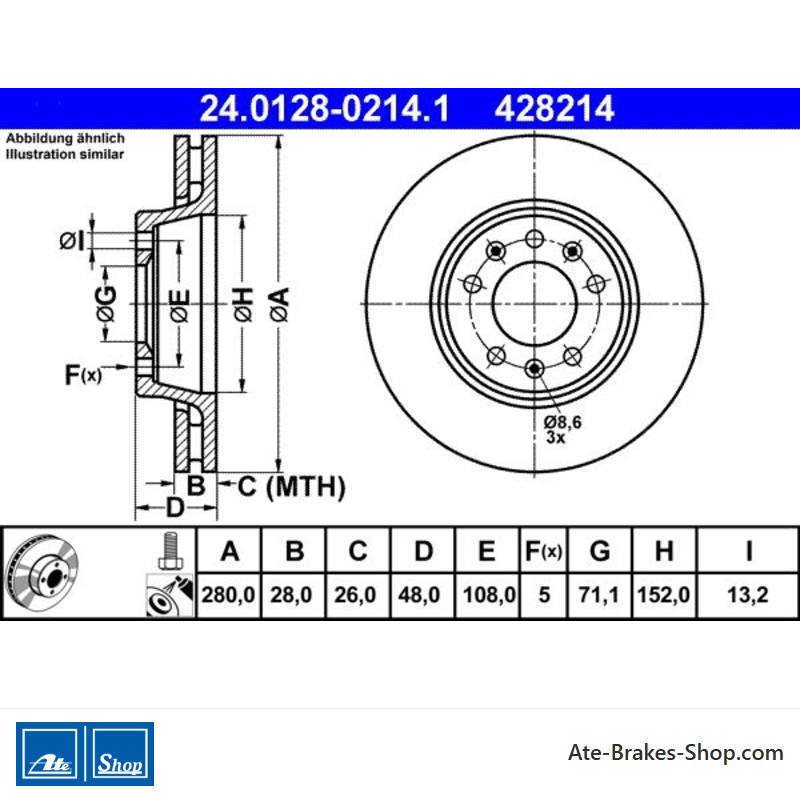

Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Citroën
Fiat
Peugeot
Toyota - Número de Comercio
- 428214
- País de origen
- China
- Información adicional
- con tornillos/tornillos
- Altura
- 48,0
- Diámetro exterior [mm]
- 280,0
- Grosor del disco de freno [mm]
- 28,0
- Tipo de disco de freno
- Ventilado
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 108,0
- Diámetro de centrado [mm]
- 71,1
- Diámetro interior [mm]
- 152,0
- Diámetro del diámetro del diámetro [mm]
- 13,2
- Espesor mínimo [mm]
- 26,0
Referencias específicas
- ean13
- 4006633313100
- MPN
- 2401280214102
ATE 24.0128-0214.1
(240128-02141)
- Diámetro exterior [mm]: 280,0
- Diámetro interior [mm]: 152,0
- Grosor del disco de freno [mm]: 28,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 428214
