ATE Disco de freno original (24012803151) para Citroën, Peugeot
246,84 €
(impuestos inc.)
204,00 € fiscales excl.
Número de parte:
ATE 24.0128-0315.1
(240128-03151)
- Diámetro exterior [mm]: 323,2
- Diámetro interior [mm]: 146,0
- Grosor del disco de freno [mm]: 28,0
- Número de agujeros de perno: 4
- Número de intercambio: 428315
Información logística:
- Código Ean: 4006633459884
- Peso: 9.19kg
Specification of ATE 24.0128-0315.1 / 240128-03151 / 24012803151:
| OE Number | Reference info |
| CITROËN 4249 L6 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249L6 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 L6 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249L6 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN DS3 (SA_) Fitting Position Front Axle | 2014-10 - 2015-06 | 121 | 165 | 1598 | Hatchback |
| CITROËN DS3 (SA_) Fitting Position Front Axle | 2011-02 - 2015-07 | 149 | 203 | 1598 | Hatchback |
| CITROËN DS3 (SA_) Fitting Position Front Axle | 2011-02 - 2015-07 | 152 | 207 | 1598 | Hatchback |
| CITROËN DS3 Convertible Fitting Position Front Axle | 2014-03 - 2015-07 | 149 | 203 | 1598 | Convertible |
| CITROËN DS3 Convertible Fitting Position Front Axle | 2014-03 - 2015-07 | 152 | 207 | 1598 | Convertible |
| DS DS 3 (SA_) Fitting Position Front Axle | 2015-04 - 2019-07 | 60 | 82 | 1199 | Hatchback |
| DS DS 3 (SA_) Fitting Position Front Axle | 2015-04 - 2019-07 | 81 | 110 | 1199 | Hatchback |
| DS DS 3 (SA_) Fitting Position Front Axle | 2015-09 - 2019-07 | 96 | 130 | 1199 | Hatchback |
| DS DS 3 (SA_) Fitting Position Front Axle | 2015-07 - 2019-07 | 120 | 163 | 1598 | Hatchback |
| DS DS 3 (SA_) Fitting Position Front Axle | 2015-07 - 2019-07 | 121 | 165 | 1598 | Hatchback |
| DS DS 3 (SA_) Fitting Position Front Axle | 2015-09 - 2019-07 | 153 | 208 | 1598 | Hatchback |
| DS DS 3 (SA_) Fitting Position Front Axle | 2015-07 - 2016-12 | 50 | 68 | 1398 | Hatchback |
| DS DS 3 (SA_) Fitting Position Front Axle | 2015-07 - 2019-07 | 55 | 75 | 1560 | Hatchback |
| DS DS 3 (SA_) Fitting Position Front Axle | 2015-04 - 2019-07 | 73 | 99 | 1560 | Hatchback |
| DS DS 3 (SA_) Fitting Position Front Axle | 2015-07 - 2019-07 | 88 | 120 | 1560 | Hatchback |
| DS DS 3 Convertible (SB_) Fitting Position Front Axle | 2015-07 - 2019-07 | 60 | 82 | 1199 | Convertible |
| DS DS 3 Convertible (SB_) Fitting Position Front Axle | 2015-07 - 2019-07 | 81 | 110 | 1199 | Convertible |
| DS DS 3 Convertible (SB_) Fitting Position Front Axle | 2015-09 - 2019-07 | 96 | 130 | 1199 | Convertible |
| DS DS 3 Convertible (SB_) Fitting Position Front Axle | 2015-07 - 2019-07 | 121 | 165 | 1598 | Convertible |
| DS DS 3 Convertible (SB_) Fitting Position Front Axle | 2015-09 - 2019-07 | 153 | 208 | 1598 | Convertible |
| DS DS 3 Convertible (SB_) Fitting Position Front Axle | 2015-07 - 2019-07 | 73 | 99 | 1560 | Convertible |
| DS DS 3 Convertible (SB_) Fitting Position Front Axle | 2015-07 - 2019-07 | 88 | 120 | 1560 | Convertible |
| PEUGEOT 208 I (CA_, CC_) Fitting Position Front Axle | 2012-03 - 2019-12 | 115 | 156 | 1598 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Fitting Position Front Axle | 2015-03 - 2019-12 | 121 | 165 | 1598 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Fitting Position Front Axle | 2014-10 - 2019-12 | 153 | 208 | 1598 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Fitting Position Front Axle | 2015-01 - 2019-12 | 73 | 100 | 1560 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Fitting Position Front Axle | 2015-01 - 2019-12 | 85 | 116 | 1560 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Fitting Position Front Axle | 2015-01 - 2019-12 | 88 | 120 | 1560 | Hatchback |
24.0128-0315.1

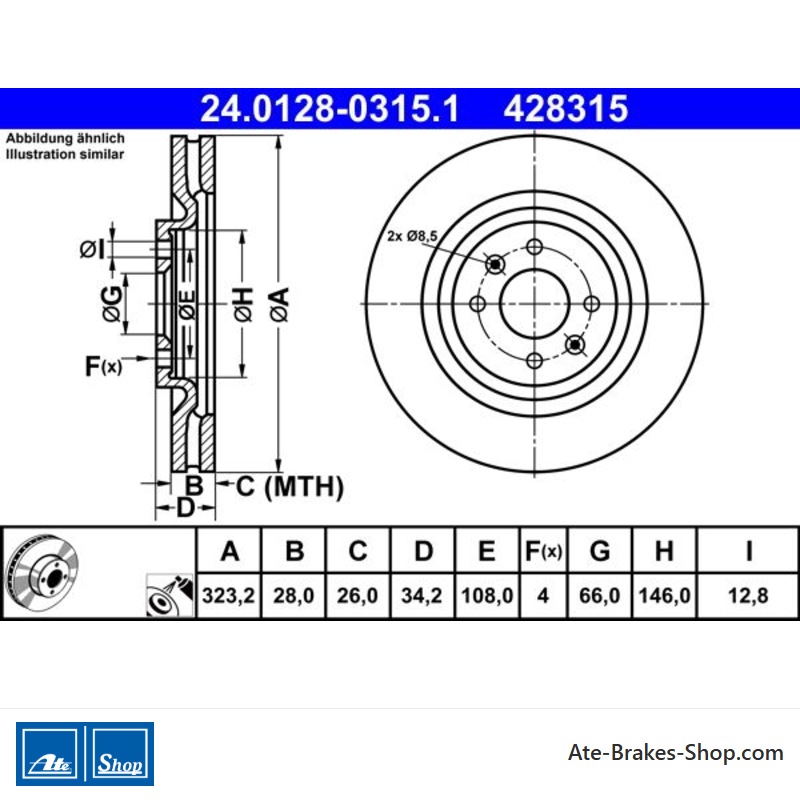

Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Citroën
Peugeot - Número de Comercio
- 428315
- País de origen
- QU
- Altura
- 34,2
- Diámetro exterior [mm]
- 323,2
- Grosor del disco de freno [mm]
- 28,0
- Tipo de disco de freno
- Ventilado
- Procesamiento
- Aleados/de alto contenido de carbono
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 108,0
- Diámetro de centrado [mm]
- 66,0
- Diámetro interior [mm]
- 146,0
- Diámetro del diámetro del diámetro [mm]
- 12,8
- Espesor mínimo [mm]
- 26,0
Referencias específicas
- ean13
- 4006633459884
- MPN
- 2401280315102
ATE 24.0128-0315.1
(240128-03151)
- Diámetro exterior [mm]: 323,2
- Diámetro interior [mm]: 146,0
- Grosor del disco de freno [mm]: 28,0
- Número de agujeros de perno: 4
- Número de intercambio: 428315
