ATE Disco de freno original (24013201161) para Volkswagen (VW)
199,65 €
(impuestos inc.)
165,00 € fiscales excl.
Número de parte:
ATE 24.0132-0116.1
(240132-01161)
- Diámetro exterior [mm]: 333,0
- Diámetro interior [mm]: 154,6
- Grosor del disco de freno [mm]: 32,5
- Número de agujeros de perno: 5
- Número de intercambio: 432116
Información logística:
- Código Ean: 4006633113670
- Peso: 11.91kg
Specification of ATE 24.0132-0116.1 / 240132-01161 / 24013201161:
| OE Number | Reference info |
| VAG 7H0 615 301 E | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 7H0615301E | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 7H0 615 301 F | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 7H0615301F | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2007-05 - 2009-12 | 62 | 84 | 1896 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2007-05 - 2009-11 | 63 | 85 | 1896 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2007-05 - 2009-11 | 75 | 102 | 1896 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2007-05 - 2009-11 | 77 | 105 | 1896 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 62 | 84 | 1968 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 75 | 102 | 1968 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 103 | 140 | 1968 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-10 - 2015-08 | 103 | 140 | 1968 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 132 | 180 | 1968 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2010-01 - 2015-08 | 132 | 180 | 1968 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2007-05 - 2009-11 | 96 | 130 | 2461 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2007-05 - 2009-11 | 96 | 130 | 2461 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2007-05 - 2009-11 | 120 | 163 | 2461 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2007-05 - 2009-11 | 128 | 174 | 2461 | Bus |
| VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2007-05 - 2009-11 | 128 | 174 | 2461 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-11 - 2015-08 | 85 | 115 | 1984 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2004-02 - 2009-12 | 173 | 235 | 3189 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2004-07 - 2009-12 | 173 | 235 | 3189 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2006-01 - 2009-11 | 62 | 84 | 1896 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 63 | 85 | 1896 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2006-01 - 2009-11 | 75 | 102 | 1896 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 77 | 105 | 1896 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 62 | 84 | 1968 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 75 | 102 | 1968 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 103 | 140 | 1968 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 103 | 140 | 1968 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 132 | 180 | 1968 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 132 | 180 | 1968 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 96 | 130 | 2461 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2004-07 - 2009-11 | 96 | 130 | 2461 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-11 - 2009-11 | 120 | 163 | 2461 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 128 | 174 | 2461 | Bus |
| VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2004-07 - 2009-11 | 128 | 174 | 2461 | Bus |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-11 - 2015-08 | 85 | 115 | 1984 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2007-06 - 2015-08 | 85 | 115 | 1984 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2004-02 - 2009-11 | 173 | 235 | 3189 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-11 - 2009-11 | 173 | 235 | 3189 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2006-01 - 2009-11 | 62 | 84 | 1896 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 63 | 85 | 1896 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2006-01 - 2009-11 | 75 | 102 | 1896 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 77 | 105 | 1896 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 62 | 84 | 1968 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 75 | 102 | 1968 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 103 | 140 | 1968 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 103 | 140 | 1968 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 132 | 180 | 1968 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 132 | 180 | 1968 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 96 | 130 | 2461 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2004-07 - 2009-11 | 96 | 130 | 2461 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 128 | 174 | 2461 | Van |
| VW TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2004-07 - 2009-11 | 128 | 174 | 2461 | Van |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2003-11 - 2013-05 | 85 | 115 | 1984 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2003-11 - 2011-05 | 85 | 115 | 1984 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2003-08 - 2009-11 | 173 | 235 | 3189 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2006-01 - 2009-11 | 62 | 84 | 1896 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 63 | 85 | 1896 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2006-01 - 2009-11 | 75 | 102 | 1896 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 77 | 105 | 1896 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 62 | 84 | 1968 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 75 | 102 | 1968 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 103 | 140 | 1968 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 103 | 140 | 1968 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 132 | 180 | 1968 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 132 | 180 | 1968 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 96 | 130 | 2461 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2004-07 - 2009-11 | 96 | 130 | 2461 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 128 | 174 | 2461 | Platform/Chassis |
| VW TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F Vehicle Identification Number (VIN) to 7J-A-010000 for PR number 2E4 Fitting Position Front Axle | 2004-04 - 2009-11 | 128 | 174 | 2461 | Platform/Chassis |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-11 - 2015-08 | 85 | 115 | 1984 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2006-01 - 2015-08 | 85 | 115 | 1984 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2004-02 - 2009-11 | 173 | 235 | 3189 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-11 - 2009-12 | 173 | 235 | 3189 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2006-01 - 2009-11 | 62 | 84 | 1896 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 63 | 85 | 1896 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2006-01 - 2009-11 | 75 | 102 | 1896 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 77 | 105 | 1896 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 62 | 84 | 1968 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 75 | 102 | 1968 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 103 | 140 | 1968 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 103 | 140 | 1968 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 132 | 180 | 1968 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2009-09 - 2015-08 | 132 | 180 | 1968 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 96 | 130 | 2461 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2004-07 - 2009-11 | 96 | 130 | 2461 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-11 - 2009-11 | 120 | 163 | 2461 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2003-04 - 2009-11 | 128 | 174 | 2461 | Bus |
| VW TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) Vehicle Identification Number (VIN) to 7H-A-050000 for PR number 2E4 Fitting Position Front Axle | 2004-07 - 2009-11 | 128 | 174 | 2461 | Bus |

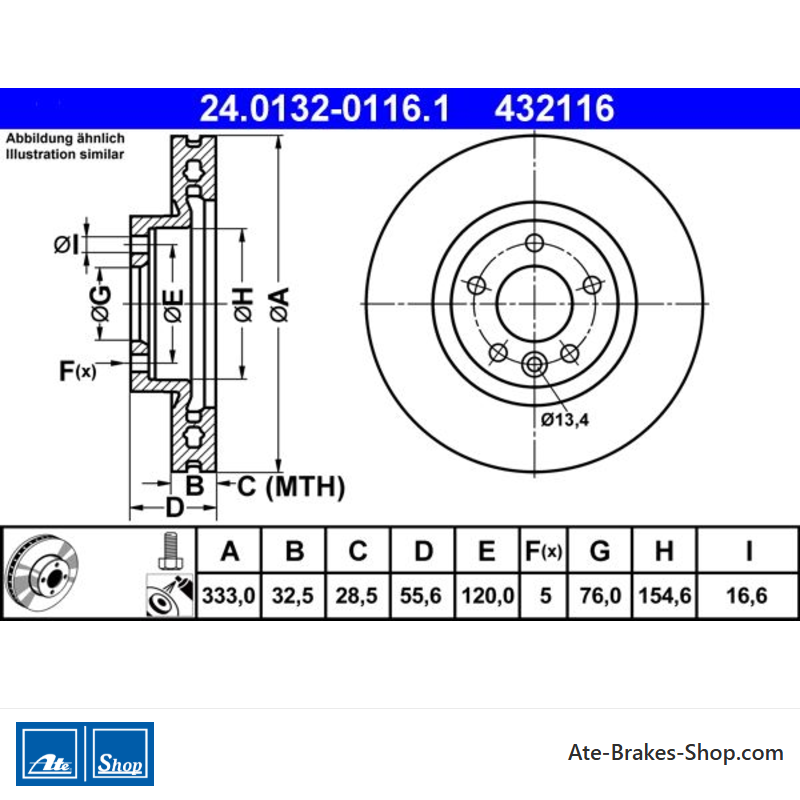

24.0132-0116.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Volkswagen (VW)
- Número de Comercio
- 432116
- País de origen
- Italia
- Información adicional
- con tornillos/tornillos
- Altura
- 55,6
- Diámetro exterior [mm]
- 333,0
- Grosor del disco de freno [mm]
- 32,5
- Tipo de disco de freno
- Ventilado
- Procesamiento
- Alto en carbono
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 120,0
- Diámetro de centrado [mm]
- 76,0
- Diámetro interior [mm]
- 154,6
- Diámetro del diámetro del diámetro [mm]
- 16,6
- Espesor mínimo [mm]
- 28,5
Referencias específicas
- ean13
- 4006633113670
- MPN
- 2401320116102
ATE 24.0132-0116.1
(240132-01161)
- Diámetro exterior [mm]: 333,0
- Diámetro interior [mm]: 154,6
- Grosor del disco de freno [mm]: 32,5
- Número de agujeros de perno: 5
- Número de intercambio: 432116
