ATE Disque de frein original en 2 pièces (24012801561) pour Ford
98,01 €
TTC
81,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0128-0156.1
(240128-01561)
- Diamètre extérieur [mm] : 280,0
- Diamètre intérieur [mm] : 136,0
- Épaisseur du disque de frein [mm] : 28,0
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro d’échange : 428156
Informations logistiques :
- Code Ean : 4006633311311
- Poids : 15.87kg
Specification of ATE 24.0128-0156.1 / 240128-01561 / 24012801561:
| OE Number | Reference info |
| FORD 1371394 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1503290 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6C11-1125-B1B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1547061 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6C11-1125-BB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Construction Year from 200605 Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2006-07 - 2014-08 | 81 | 110 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2006-07 - 2014-08 | 96 | 131 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Bus |

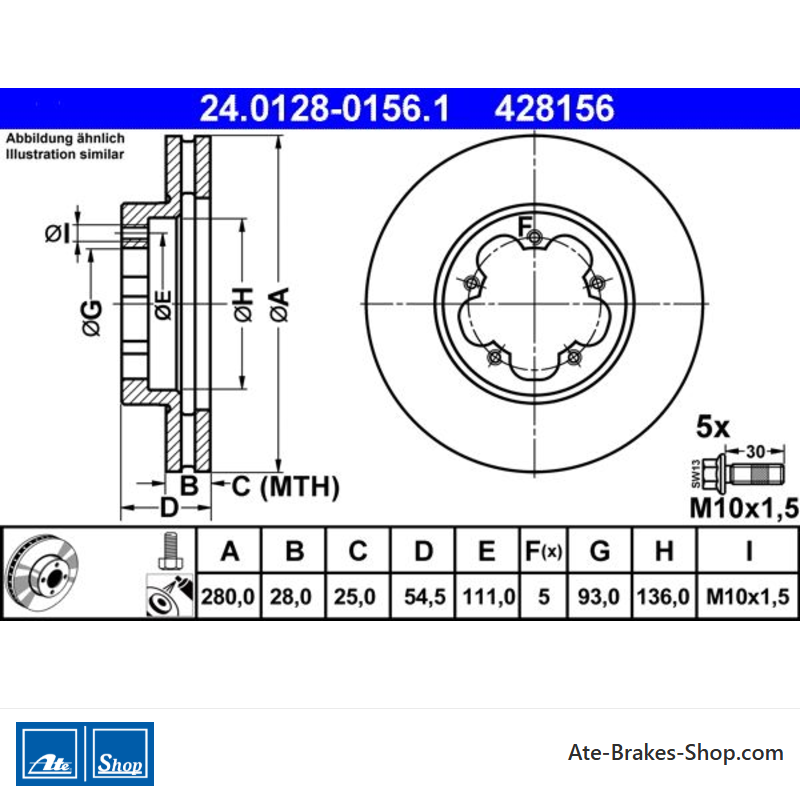

24.0128-0156.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Ford
- Numéro de trade
- 428156
- Pays d’origine
- QU
- Informations supplémentaires
- avec des boulons/vis
- Hauteur
- 54,5
- Diamètre extérieur [mm]
- 280,0
- Épaisseur du disque de frein [mm]
- 28,0
- Type à disque de frein
- Ventilé
- Surface
- Enduit
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 111,0
- Diamètre de centrage [mm]
- 93,0
- Diamètre intérieur [mm]
- 136,0
- Taille du filetage
- M10x1,5
- Épaisseur minimale [mm]
- 25,0
Références spécifiques
- EAN-13
- 4006633311311
- MPN
- 2401280156102
ATE 24.0128-0156.1
(240128-01561)
- Diamètre extérieur [mm] : 280,0
- Diamètre intérieur [mm] : 136,0
- Épaisseur du disque de frein [mm] : 28,0
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro d’échange : 428156
