ATE Originele 2-delige remschijf (24012801561) voor Ford
€ 98,01
(incl. btw)
€ 81,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0156.1
(240128-01561)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 136,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 428156
Logistieke informatie:
- Ean Code: 4006633311311
- Gewicht: 15.87kg
Specification of ATE 24.0128-0156.1 / 240128-01561 / 24012801561:
| OE Number | Reference info |
| FORD 1371394 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1503290 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6C11-1125-B1B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1547061 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6C11-1125-BB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Construction Year from 200605 Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2006-07 - 2014-08 | 81 | 110 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2006-07 - 2014-08 | 96 | 131 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Bus |

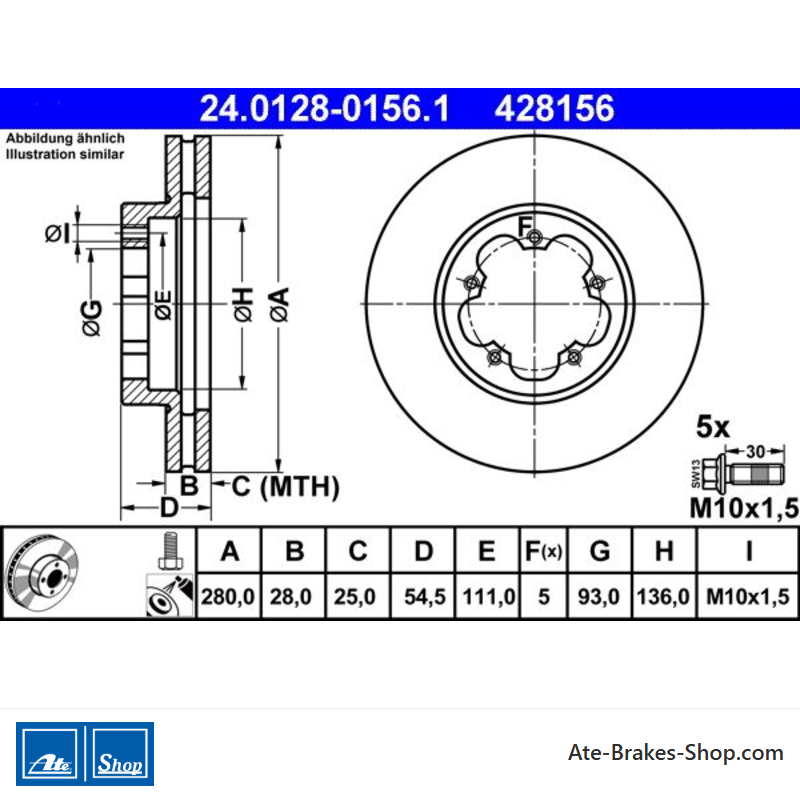

24.0128-0156.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Ford
- Handelsnummer
- 428156
- Land van Herkomst
- QU
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 54,5
- Buitendiameter [mm]
- 280,0
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 111,0
- Centreringsdiameter [mm]
- 93,0
- Binnendiameter [mm]
- 136,0
- Draadmaat
- M10x1,5
- Minimale dikte [mm]
- 25,0
Specifieke referenties
- ean13
- 4006633311311
- MPN
- 2401280156102
ATE 24.0128-0156.1
(240128-01561)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 136,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 428156
