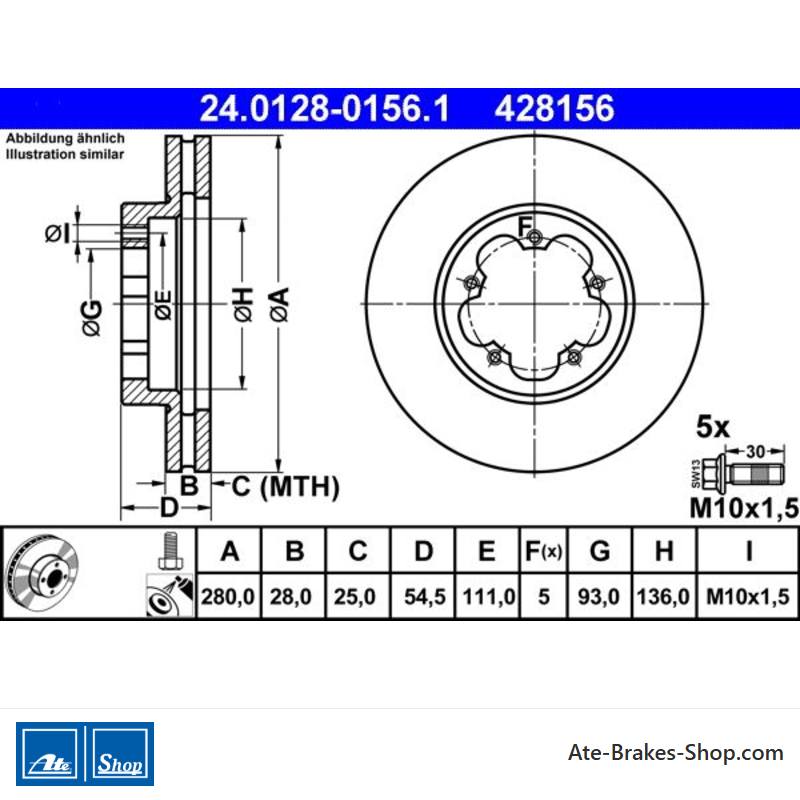

ATE Disco de freno original de 2 piezas (24012801561) para Ford
98,01 €
(impuestos inc.)
81,00 € fiscales excl.
Número de parte:
ATE 24.0128-0156.1
(240128-01561)
- Diámetro exterior [mm]: 280,0
- Diámetro interior [mm]: 136,0
- Grosor del disco de freno [mm]: 28,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 428156
Información logística:
- Código Ean: 4006633311311
- Peso: 15.87kg
Specification of ATE 24.0128-0156.1 / 240128-01561 / 24012801561:
| OE Number | Reference info |
| FORD 1371394 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1503290 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6C11-1125-B1B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1547061 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6C11-1125-BB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Construction Year from 200605 Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Front Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2006-07 - 2014-08 | 81 | 110 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2006-07 - 2014-08 | 96 | 131 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Vehicle type 260/280/300 Fitting Position Front Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Bus |
24.0128-0156.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Ford
- Número de Comercio
- 428156
- País de origen
- QU
- Información adicional
- con tornillos/tornillos
- Altura
- 54,5
- Diámetro exterior [mm]
- 280,0
- Grosor del disco de freno [mm]
- 28,0
- Tipo de disco de freno
- Ventilado
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 111,0
- Diámetro de centrado [mm]
- 93,0
- Diámetro interior [mm]
- 136,0
- Tamaño del hilo
- M10x1,5
- Espesor mínimo [mm]
- 25,0
Referencias específicas
- ean13
- 4006633311311
- MPN
- 2401280156102
ATE 24.0128-0156.1
(240128-01561)
- Diámetro exterior [mm]: 280,0
- Diámetro interior [mm]: 136,0
- Grosor del disco de freno [mm]: 28,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 428156
