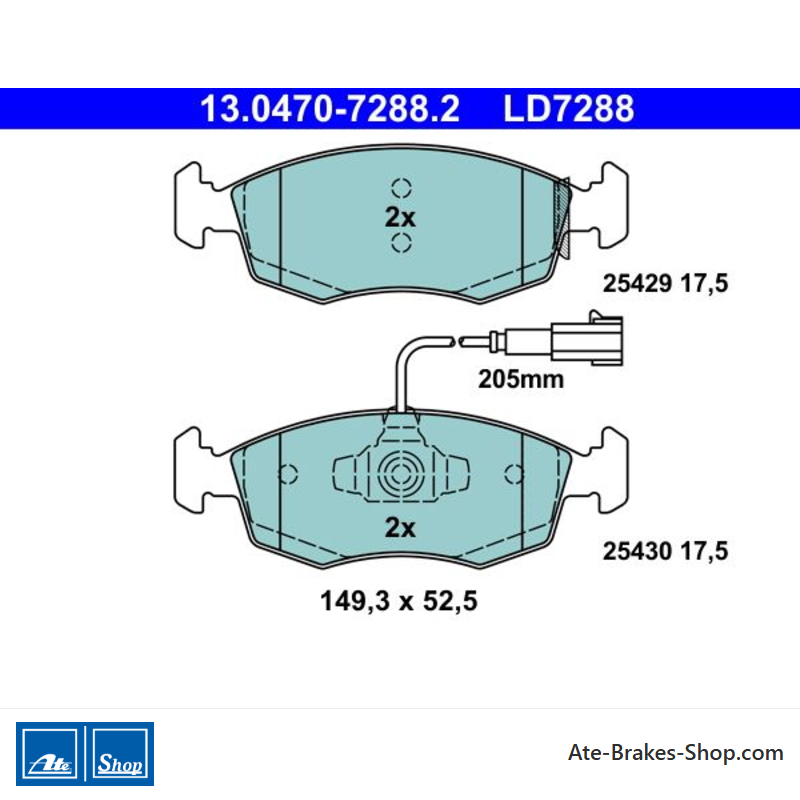

ATE originele keramische remblokken (13047072882) voor Fiat
€ 72,60
(incl. btw)
€ 60,00 belastingexcl.
Onderdeelnummer:
ATE 13.0470-7288.2
(130470-72882)
- Breedte [mm]: 149,3
- Hoogte [mm]: 52,5
- Dikte [mm]: 17,5
- Slijtagewaarschuwingscontact: inclusief slijtagewaarschuwingscontact
- Remsysteem: ATE
- Handelsnummer: LD7288
- Ean Code: 4006633424776
- Gewicht: 1.63kg
Specification of ATE 13.0470-7288.2 / 130470-72882 / 13047072882:
| OE Number | Reference info |
| FIAT 77366537 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365729 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365811 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77366270 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77366538 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT 500 C (312_) Fitting Position Front Axle | 2013-12 - | 44 | 60 | 964 | Convertible |
| FIAT 500 C (312_) Fitting Position Front Axle | 2012-09 - | 48 | 65 | 964 | Convertible |
| FIAT 500 C (312_) Fitting Position Front Axle | 2013-12 - | 59 | 80 | 875 | Convertible |
| FIAT 500 C (312_) Fitting Position Front Axle | 2009-09 - | 63 | 86 | 875 | Convertible |
| FIAT 500 C (312_) Fitting Position Front Axle Construction Year from 201506 | 2009-09 - | 51 | 69 | 1242 | Convertible |
| FIAT 500 (312_) Fitting Position Front Axle | 2013-12 - | 59 | 80 | 875 | Hatchback |
| FIAT 500 (312_) Fitting Position Front Axle | 2010-07 - | 63 | 86 | 875 | Hatchback |
| FIAT 500 (312_) Fitting Position Front Axle | 2013-12 - | 44 | 60 | 964 | Hatchback |
| FIAT 500 (312_) Fitting Position Front Axle | 2012-09 - | 48 | 65 | 964 | Hatchback |
| FIAT 500 (312_) Fitting Position Front Axle Construction Year from 201506 | 2007-07 - | 51 | 69 | 1242 | Hatchback |
| FIAT 500 (312_) Fitting Position Front Axle Construction Year from 201506 | 2010-12 - | 51 | 69 | 1242 | Hatchback |
| FIAT PUNTO (188_) Construction Year from 201005 Fitting Position Front Axle | 2007-08 - 2012-03 | 44 | 60 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 63 | 86 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 63 | 86 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2013-12 - | 74 | 101 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2013-07 - | 77 | 105 | 875 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2014-02 - | 49 | 67 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 51 | 69 | 1242 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 55 | 75 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 77 | 105 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 99 | 135 | 1368 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 55 | 75 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2013-12 - | 59 | 80 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 62 | 84 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 48 | 65 | 1242 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 51 | 69 | 1242 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-07 - 2012-02 | 55 | 75 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 57 | 77 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-06 - 2012-02 | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 57 | 78 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 77 | 105 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 99 | 135 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-10 - 2012-02 | 55 | 75 | 1248 | Hatchback |
| FIAT PUNTO Hatchback Van (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-03 - | 57 | 78 | 1368 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-03 - 2012-02 | 57 | 78 | 1368 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Construction Year from 201005 Fitting Position Front Axle | 2009-03 - 2012-02 | 55 | 75 | 1248 | Hatchback Van |
13.0470-7288.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Fiat
- Handelsnummer
- LD7288
- Remsysteem
- ATE
- Land van Herkomst
- Tsjechië
- Slijtage-indicator
- Elektronisch
Inbegrepen - Breedte
- 149,3
- Hoogte
- 52,5
- Dikte
- 17,5
- Lengte van de waarschuwingsindicator
- 205 mm
- Toegestaan tot voertuigcapaciteit
- 225 kW
Specifieke referenties
- ean13
- 4006633424776
- MPN
- 1304707288202
ATE 13.0470-7288.2
(130470-72882)
- Breedte [mm]: 149,3
- Hoogte [mm]: 52,5
- Dikte [mm]: 17,5
- Slijtagewaarschuwingscontact: inclusief slijtagewaarschuwingscontact
- Remsysteem: ATE
- Handelsnummer: LD7288
