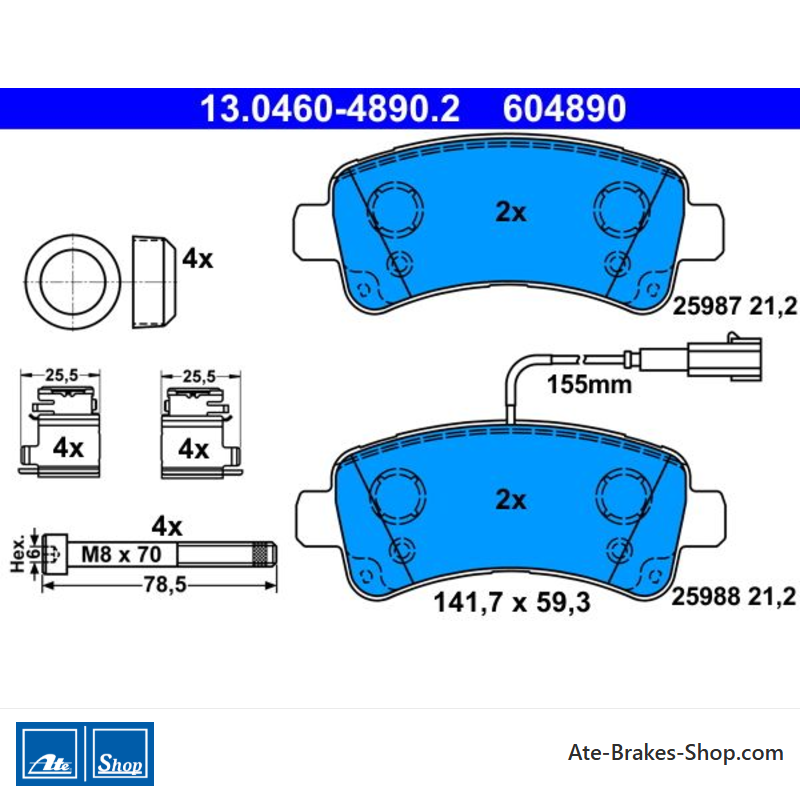

ATE originele remblokken (13046048902) voor Citroën, Fiat, Opel, Peugeot
€ 72,60
(incl. btw)
€ 60,00 belastingexcl.
Onderdeelnummer:
ATE 13.0460-4890.2
(130460-48902)
- Breedte [mm]: 141,7
- Hoogte [mm]: 59,3
- Dikte [mm]: 21,2
- Slijtagewaarschuwingscontact: met geïntegreerd slijtagewaarschuwingscontact
- Remsysteem: Brembo
- Handelsnummer: 604890
- Ean Code: 4006633447584
- Gewicht: 2.18kg
Specification of ATE 13.0460-4890.2 / 130460-48902 / 13046048902:
| OE Number | Reference info |
| CITROËN 16 124 340 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 1612434080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77367094 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 16 124 340 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 1612434080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 16 124 340 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 1612434080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 16 124 340 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 1612434080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2021-07 - 2023-10 | 100 | 136 | CC | Van |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 205 | 279 | CC | Van |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-11 - 2019-09 | 81 | 110 | 1997 | Van |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-11 - 2019-09 | 96 | 130 | 1997 | Van |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-11 - 2019-09 | 96 | 130 | 1997 | Van |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-11 - 2019-09 | 120 | 163 | 1997 | Van |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-11 - 2019-09 | 120 | 163 | 1997 | Van |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 88 | 120 | 2179 | Van |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 88 | 120 | 2184 | Van |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 103 | 140 | 2179 | Van |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 103 | 140 | 2184 | Van |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 121 | 165 | 2179 | Van |
| CITROËN JUMPER III Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 132 | 180 | 2184 | Van |
| CITROËN JUMPER III Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-07 - 2020-12 | 81 | 110 | 2198 | Van |
| CITROËN JUMPER III Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2016-12 | 88 | 120 | 2198 | Van |
| CITROËN JUMPER III Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-07 - 2016-05 | 96 | 130 | 2198 | Van |
| CITROËN JUMPER III Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2012-01 - 2016-05 | 96 | 130 | 2198 | Van |
| CITROËN JUMPER III Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-07 - 2016-12 | 110 | 150 | 2198 | Van |
| CITROËN JUMPER III Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2010-07 - 2013-12 | 107 | 146 | 2999 | Van |
| CITROËN JUMPER III Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-07 - 2015-12 | 115 | 156 | 2999 | Van |
| CITROËN JUMPER III Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-09 - 2015-12 | 116 | 157 | 2999 | Van |
| CITROËN JUMPER III Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-07 - 2016-12 | 130 | 177 | 2999 | Van |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2022-03 - 2023-10 | 100 | 136 | CC | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 205 | 279 | CC | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-11 - 2019-09 | 81 | 110 | 1997 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-11 - 2019-09 | 96 | 130 | 1997 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-11 - 2019-09 | 96 | 130 | 1997 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-11 - 2019-09 | 120 | 163 | 1997 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-11 - 2019-09 | 120 | 163 | 1997 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 88 | 120 | 2179 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 88 | 120 | 2184 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 103 | 140 | 2179 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 103 | 140 | 2184 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 121 | 165 | 2179 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 132 | 180 | 2184 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2013-06 | 74 | 101 | 2198 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-07 - 2020-12 | 81 | 110 | 2198 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2016-12 | 88 | 120 | 2198 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-07 - 2016-12 | 96 | 130 | 2198 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-07 - 2016-12 | 110 | 150 | 2198 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2010-07 - 2013-12 | 107 | 146 | 2999 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-09 - 2015-12 | 116 | 157 | 2999 | Platform/Chassis |
| CITROËN JUMPER III Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-07 - 2016-12 | 130 | 177 | 2999 | Platform/Chassis |
| CITROËN JUMPER III Bus Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-07 - 2019-09 | 81 | 110 | 1997 | Bus |
| CITROËN JUMPER III Bus Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-07 - 2019-09 | 96 | 130 | 1997 | Bus |
| CITROËN JUMPER III Bus Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-07 - 2019-09 | 120 | 163 | 1997 | Bus |
| CITROËN JUMPER III Bus Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 88 | 120 | 2179 | Bus |
| CITROËN JUMPER III Bus Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 103 | 140 | 2179 | Bus |
| CITROËN JUMPER III Bus Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 121 | 165 | 2179 | Bus |
| CITROËN JUMPER III Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2013-06 | 74 | 101 | 2198 | Bus |
| CITROËN JUMPER III Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-07 - 2020-12 | 81 | 110 | 2198 | Bus |
| CITROËN JUMPER III Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2016-12 | 88 | 120 | 2198 | Bus |
| CITROËN JUMPER III Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-07 - 2016-05 | 96 | 130 | 2198 | Bus |
| CITROËN JUMPER III Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-07 - 2016-12 | 110 | 150 | 2198 | Bus |
| CITROËN JUMPER III Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-07 - 2015-12 | 115 | 157 | 2999 | Bus |
| CITROËN JUMPER III Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-09 - | 116 | 157 | 2999 | Bus |
| CITROËN JUMPER III Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-07 - 2016-12 | 130 | 177 | 2999 | Bus |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2020-12 - 2023-10 | 90 | 122 | CC | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 205 | 279 | CC | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2009-04 - | 100 | 136 | 2999 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2011-06 - | 85 | 116 | 1956 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2021-07 - | 88 | 120 | 2184 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2021-07 - | 103 | 140 | 2184 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2021-07 - 2023-10 | 118 | 160 | 2184 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2021-07 - | 132 | 180 | 2184 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2006-07 - 2011-05 | 74 | 101 | 2198 | Van |
| FIAT DUCATO Van (250_) Construction Year from 201512 Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2014-05 - | 82 | 111 | 2287 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2011-10 - 2014-07 | 83 | 113 | 2287 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2006-07 - | 88 | 120 | 2287 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2010-03 - | 88 | 120 | 2287 | Van |
| FIAT DUCATO Van (250_) Construction Year from 201512 Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2006-08 - | 96 | 131 | 2287 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2011-06 - | 96 | 131 | 2287 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2019-05 - | 103 | 140 | 2287 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2011-06 - | 109 | 148 | 2287 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2015-12 - | 110 | 150 | 2287 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2015-12 - | 110 | 150 | 2287 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2019-05 - | 118 | 160 | 2287 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2015-12 - | 130 | 177 | 2287 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2010-04 - 2014-07 | 107 | 146 | 2999 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2006-07 - 2011-12 | 115 | 156 | 2999 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2006-07 - 2011-05 | 116 | 158 | 2999 | Van |
| FIAT DUCATO Van (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2011-06 - | 130 | 177 | 2999 | Van |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2021-02 - 2023-10 | 90 | 122 | CC | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 205 | 279 | CC | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2009-04 - | 100 | 136 | 2999 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2011-06 - | 85 | 116 | 1956 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2021-07 - | 88 | 120 | 2184 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2021-07 - | 103 | 140 | 2184 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2021-07 - 2023-10 | 118 | 160 | 2184 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2021-07 - | 132 | 180 | 2184 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2006-07 - 2011-05 | 74 | 101 | 2198 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Construction Year from 201106 Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2006-08 - | 82 | 111 | 2287 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2011-10 - 2014-07 | 83 | 113 | 2287 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2006-07 - | 88 | 120 | 2287 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2010-03 - | 88 | 120 | 2287 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Construction Year from 200701 Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2006-08 - | 96 | 131 | 2287 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2019-05 - | 103 | 140 | 2287 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2011-06 - | 109 | 148 | 2287 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2015-12 - | 110 | 150 | 2287 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2019-05 - | 118 | 160 | 2287 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2015-12 - | 130 | 177 | 2287 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2010-04 - 2014-07 | 107 | 146 | 2999 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2006-07 - 2011-05 | 115 | 156 | 2999 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2006-07 - 2014-05 | 116 | 158 | 2999 | Platform/Chassis |
| FIAT DUCATO Platform/Chassis (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2011-06 - | 130 | 177 | 2999 | Platform/Chassis |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2021-02 - 2023-10 | 90 | 122 | CC | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2009-04 - | 100 | 136 | 2999 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2011-06 - | 85 | 116 | 1956 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2021-07 - 2023-10 | 103 | 140 | 2184 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2006-07 - 2011-05 | 74 | 101 | 2198 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2011-10 - 2014-07 | 83 | 113 | 2287 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2014-05 - | 82 | 111 | 2287 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2006-07 - 2013-10 | 88 | 120 | 2287 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2007-01 - | 96 | 131 | 2287 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2011-06 - | 96 | 131 | 2287 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2019-05 - | 103 | 140 | 2287 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2011-06 - | 109 | 148 | 2287 | Bus |
| FIAT DUCATO Bus (250_) Construction Year from 201512 Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2015-04 - | 110 | 150 | 2287 | Bus |
| FIAT DUCATO Bus (250_) Construction Year from 201512 Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2015-04 - | 110 | 150 | 2287 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2019-05 - | 118 | 160 | 2287 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2019-05 - | 130 | 177 | 2287 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2010-04 - 2014-07 | 107 | 146 | 2999 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Vehicle type 40 Payload for increased payload Fitting Position Rear Axle Payload code 20Q | 2006-10 - 2011-05 | 115 | 156 | 2999 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2006-07 - 2011-05 | 116 | 158 | 2999 | Bus |
| FIAT DUCATO Bus (250_) Payload [kg] 2000 kg Payload for increased payload Vehicle type 40 Fitting Position Rear Axle Payload code 20Q | 2011-06 - | 130 | 177 | 2999 | Bus |
| OPEL MOVANO C Van (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2021-12 - 2023-10 | 100 | 136 | CC | Van |
| OPEL MOVANO C Van (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2021-12 - 2023-10 | 88 | 120 | 2179 | Van |
| OPEL MOVANO C Van (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2023-11 - | 88 | 120 | 2184 | Van |
| OPEL MOVANO C Van (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2021-12 - 2023-10 | 103 | 140 | 2179 | Van |
| OPEL MOVANO C Van (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2023-11 - | 103 | 140 | 2184 | Van |
| OPEL MOVANO C Van (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2021-12 - 2023-10 | 121 | 165 | 2179 | Van |
| OPEL MOVANO C Van (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2023-11 - | 132 | 180 | 2184 | Van |
| OPEL MOVANO C Platform/Chassis (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2021-12 - 2023-10 | 88 | 120 | 2179 | Platform/Chassis |
| OPEL MOVANO C Platform/Chassis (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2023-11 - | 88 | 120 | 2184 | Platform/Chassis |
| OPEL MOVANO C Platform/Chassis (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2021-12 - 2023-10 | 103 | 140 | 2179 | Platform/Chassis |
| OPEL MOVANO C Platform/Chassis (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2023-11 - | 103 | 140 | 2184 | Platform/Chassis |
| OPEL MOVANO C Platform/Chassis (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2021-12 - 2023-10 | 121 | 165 | 2179 | Platform/Chassis |
| OPEL MOVANO C Platform/Chassis (U9, X250) Fitting Position Rear Axle Payload code Payload heavy Payload code 20Q | 2023-11 - | 132 | 180 | 2184 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2021-11 - 2023-10 | 100 | 136 | CC | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 205 | 279 | CC | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2016-03 - 2019-09 | 81 | 110 | 1997 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2016-03 - 2019-09 | 96 | 130 | 1997 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2016-03 - 2023-12 | 120 | 163 | 1997 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 88 | 120 | 2179 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 103 | 140 | 2179 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 121 | 165 | 2179 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 88 | 120 | 2184 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 103 | 140 | 2184 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 132 | 180 | 2184 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2013-06 | 74 | 101 | 2198 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2020-12 | 81 | 110 | 2198 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2016-12 | 88 | 120 | 2198 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2016-05 | 96 | 131 | 2198 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2016-05 | 96 | 130 | 2198 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2016-12 | 110 | 150 | 2198 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2016-12 | 110 | 150 | 2198 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2010-04 - 2013-12 | 107 | 146 | 2999 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2015-12 | 115 | 156 | 2999 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2015-12 | 116 | 156 | 2999 | Platform/Chassis |
| PEUGEOT BOXER Platform/Chassis Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - | 130 | 177 | 2999 | Platform/Chassis |
| PEUGEOT BOXER Bus Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-07 - 2019-09 | 81 | 110 | 1997 | Bus |
| PEUGEOT BOXER Bus Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-07 - 2019-09 | 96 | 130 | 1997 | Bus |
| PEUGEOT BOXER Bus Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2015-07 - 2019-09 | 120 | 163 | 1997 | Bus |
| PEUGEOT BOXER Bus Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-07 - 2023-10 | 88 | 120 | 2179 | Bus |
| PEUGEOT BOXER Bus Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-07 - | 103 | 140 | 2179 | Bus |
| PEUGEOT BOXER Bus Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-08 - 2023-10 | 121 | 165 | 2179 | Bus |
| PEUGEOT BOXER Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2013-06 | 74 | 101 | 2198 | Bus |
| PEUGEOT BOXER Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2020-12 | 81 | 110 | 2198 | Bus |
| PEUGEOT BOXER Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2016-12 | 88 | 120 | 2198 | Bus |
| PEUGEOT BOXER Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2016-05 | 96 | 131 | 2198 | Bus |
| PEUGEOT BOXER Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2016-12 | 110 | 150 | 2198 | Bus |
| PEUGEOT BOXER Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2010-04 - 2013-12 | 107 | 146 | 2999 | Bus |
| PEUGEOT BOXER Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2015-12 | 115 | 156 | 2999 | Bus |
| PEUGEOT BOXER Bus Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2016-12 | 130 | 177 | 2999 | Bus |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2021-07 - 2023-10 | 100 | 136 | CC | Van |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 205 | 279 | CC | Van |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2016-03 - 2019-09 | 81 | 110 | 1997 | Van |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2016-03 - 2019-09 | 96 | 130 | 1997 | Van |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2016-03 - 2019-09 | 96 | 130 | 1997 | Van |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2016-03 - 2023-12 | 120 | 163 | 1997 | Van |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2016-03 - 2019-09 | 120 | 163 | 1997 | Van |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-07 - 2023-10 | 88 | 120 | 2179 | Van |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-07 - | 103 | 140 | 2179 | Van |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2019-07 - 2023-10 | 121 | 165 | 2179 | Van |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 88 | 120 | 2184 | Van |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 103 | 140 | 2184 | Van |
| PEUGEOT BOXER Van Payload [kg] 2000 kg Fitting Position Rear Axle Payload code 20Q | 2023-11 - | 132 | 180 | 2184 | Van |
| PEUGEOT BOXER Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2013-06 | 74 | 101 | 2198 | Van |
| PEUGEOT BOXER Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2020-12 | 81 | 110 | 2198 | Van |
| PEUGEOT BOXER Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2016-12 | 88 | 120 | 2198 | Van |
| PEUGEOT BOXER Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2016-05 | 96 | 131 | 2198 | Van |
| PEUGEOT BOXER Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2016-05 | 96 | 131 | 2198 | Van |
| PEUGEOT BOXER Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2016-12 | 110 | 150 | 2198 | Van |
| PEUGEOT BOXER Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2016-12 | 110 | 150 | 2198 | Van |
| PEUGEOT BOXER Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2010-04 - 2013-12 | 107 | 146 | 2999 | Van |
| PEUGEOT BOXER Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-07 - 2015-12 | 115 | 156 | 2999 | Van |
| PEUGEOT BOXER Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2006-04 - 2015-12 | 116 | 156 | 2999 | Van |
| PEUGEOT BOXER Van Fitting Position Rear Axle Payload [kg] 2000 kg for facelift Payload code 20Q | 2011-03 - 2016-12 | 130 | 177 | 2999 | Van |
13.0460-4890.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Citroën
Fiat
Opel
Peugeot - Handelsnummer
- 604890
- Remsysteem
- Brembo
- Land van Herkomst
- Tsjechië
- Slijtage-indicator
- Elektronisch
Geïntegreerd - Aanvullende informatie
- met accessoires
met remklauwschroeven - Breedte
- 141,7
- Hoogte
- 59,3
- Dikte
- 21,2
- Aantal bouten/schroeven
- 4
- Lengte van de waarschuwingsindicator
- 155 mm
Specifieke referenties
- ean13
- 4006633447584
- MPN
- 1304604890202
ATE 13.0460-4890.2
(130460-48902)
- Breedte [mm]: 141,7
- Hoogte [mm]: 59,3
- Dikte [mm]: 21,2
- Slijtagewaarschuwingscontact: met geïntegreerd slijtagewaarschuwingscontact
- Remsysteem: Brembo
- Handelsnummer: 604890
