ATE Originele 2-stuks remschijf (24031201411) voor Ford, Mazda
€ 61,71
(incl. btw)
€ 51,00 belastingexcl.
Onderdeelnummer:
ATE 24.0312-0141.1
(240312-01411)
- Buitendiameter [mm]: 239,5
- Binnendiameter [mm]: 136,0
- Remschijfdikte [mm]: 12,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 512141
Logistieke informatie:
- Ean Code: 4006633119351
- Gewicht: 7.40kg
Specification of ATE 24.0312-0141.1 / 240312-01411 / 24031201411:
| OE Number | Reference info |
| FORD 1013581 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1019598 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1112542 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA 1E03-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA 1E03-33-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA 1E04-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD FIESTA IV (JA_, JB_) Construction Year from 199601 Construction Year to 200001 Transmission Type Manual Transmission Fitting Position Front Axle | 1995-08 - 2002-01 | 55 | 75 | 1242 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Construction Year from 199601 Construction Year to 200001 Fitting Position Front Axle | 1995-08 - 2002-01 | 37 | 50 | 1299 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Construction Year from 199601 Construction Year to 200001 Fitting Position Front Axle | 1995-08 - 2002-01 | 44 | 60 | 1299 | Hatchback |
| FORD FIESTA IV (JA_, JB_) Construction Year from 199601 Construction Year to 200001 Fitting Position Front Axle | 1995-08 - 2000-04 | 44 | 60 | 1753 | Hatchback |
| FORD KA (RB_) Construction Year to 200001 Fitting Position Front Axle | 1998-06 - 2008-11 | 36 | 49 | 1299 | Hatchback |
| FORD KA (RB_) Construction Year from 199611 Construction Year to 200001 Fitting Position Front Axle | 1996-09 - 2002-10 | 37 | 50 | 1299 | Hatchback |
| FORD KA (RB_) Construction Year from 199611 Construction Year to 200001 Fitting Position Front Axle | 1996-09 - 2008-11 | 44 | 60 | 1299 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Construction Year to 200001 Transmission Type Manual Transmission Fitting Position Front Axle | 1996-03 - 2003-04 | 55 | 75 | 1242 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Construction Year to 200001 Fitting Position Front Axle | 1996-03 - 2003-04 | 37 | 50 | 1299 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Construction Year to 200001 Fitting Position Front Axle | 1996-03 - 2003-04 | 44 | 60 | 1299 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Construction Year to 200001 Fitting Position Front Axle | 1996-03 - 2003-04 | 44 | 60 | 1753 | Hatchback |
| MAZDA 121 III (JASM, JBSM) Fitting Position Front Axle Braking/Driving Dynamics for vehicles without ABS | 2000-02 - 2002-10 | 55 | 75 | 1753 | Hatchback |
24.0312-0141.1

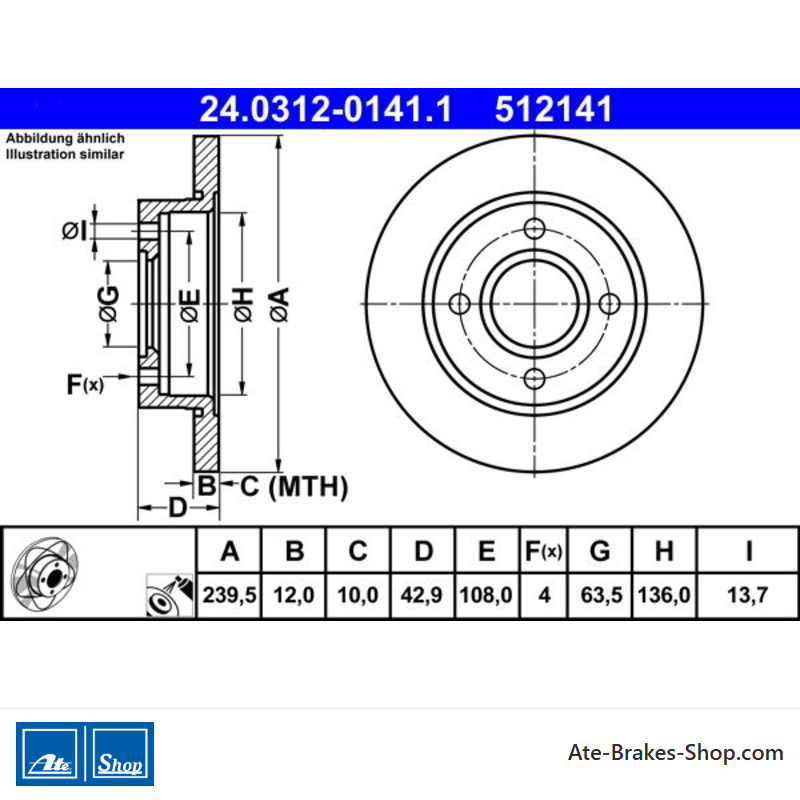

Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Ford
Mazda - Handelsnummer
- 512141
- Land van Herkomst
- Duitsland
- Hoogte
- 42,9
- Buitendiameter [mm]
- 239,5
- Remschijfdikte [mm]
- 12,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 108,0
- Centreringsdiameter [mm]
- 63,5
- Binnendiameter [mm]
- 136,0
- Bordiameter [mm]
- 13,7
- Minimale dikte [mm]
- 10,0
Specifieke referenties
- ean13
- 4006633119351
- MPN
- 2403120141102
ATE 24.0312-0141.1
(240312-01411)
- Buitendiameter [mm]: 239,5
- Binnendiameter [mm]: 136,0
- Remschijfdikte [mm]: 12,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 512141
