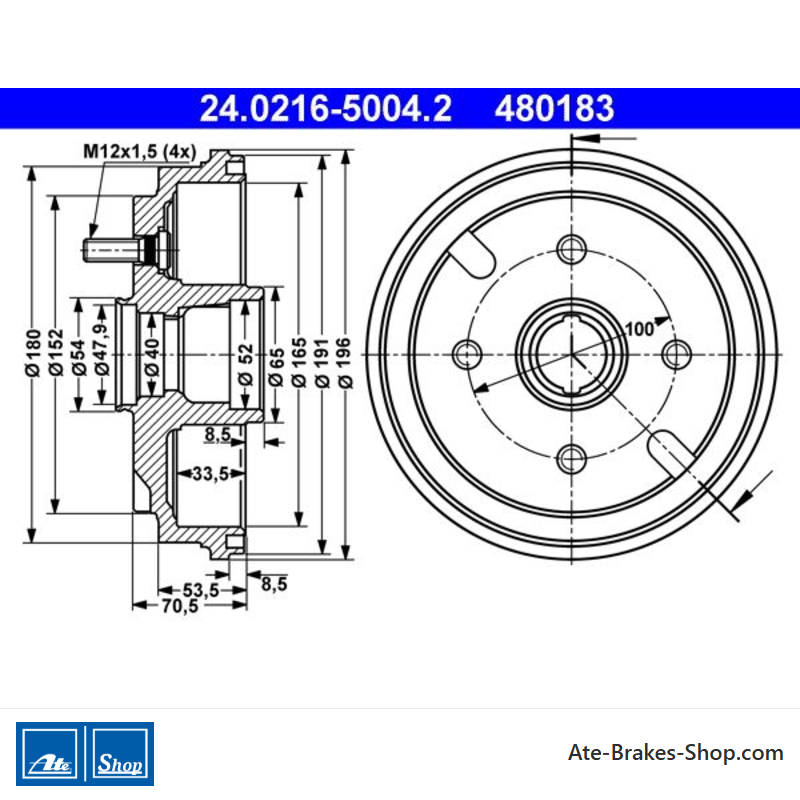

ATE Originele 2-delige remtrommel (24021650042) voor Daihatsu
€ 134,31
(incl. btw)
€ 111,00 belastingexcl.
Onderdeelnummer:
ATE 24.0216-5004.2
(240216-50042)
- Buitendiameter [mm]: 196,0
- Binnendiameter [mm]: 165,0
- Draagplaat diameter [mm]: 52,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480183
- Ean Code: 4006633219570
- Gewicht: 8.96kg
Specification of ATE 24.0216-5004.2 / 240216-50042 / 24021650042:
| OE Number | Reference info |
| DAIHATSU 42403-97205-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DAIHATSU CUORE VI (L251, L250_, L260_) Construction Year to 200708 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2003-05 - | 43 | 58 | 989 | Hatchback |
| DAIHATSU MOVE (L9_) Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS | 1998-10 - 2000-12 | 40 | 54 | 989 | MPV |
| DAIHATSU MOVE (L9_) Construction Year to 200011 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1998-10 - 2002-09 | 41 | 55 | 989 | MPV |
24.0216-5004.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Daihatsu
- Handelsnummer
- 480183
- Land van Herkomst
- Italië
- Aanvullende informatie
- met wielstijlen
zonder ABS-sensorring
zonder wiellager - Hoogte
- 70,5
- Buitendiameter [mm]
- 196,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 52,0
- Binnendiameter [mm]
- 165,0
- Draadmaat
- M12x1,5
- Max. Afborende Dimensie [mm]
- 166,0
- Binnenhoogte van de remtrommel [mm]
- 33,5
- Remtrommel binnendiameter [mm]
- 40,0
Specifieke referenties
- ean13
- 4006633219570
- MPN
- 2402165004202
