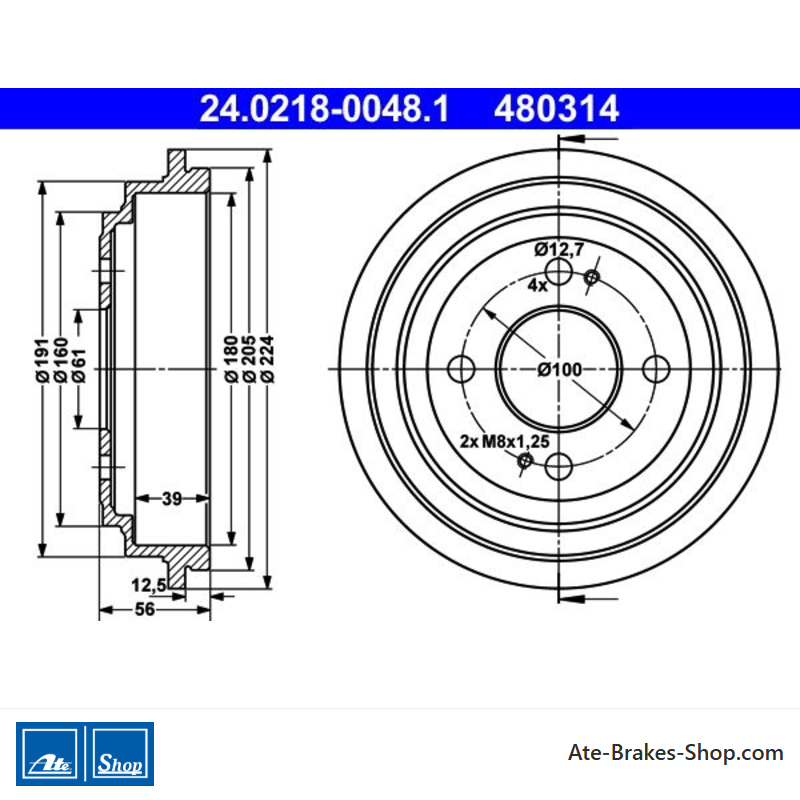

ATE Originele 2-delige remtrommel (24021800481) voor Honda
€ 123,42
(incl. btw)
€ 102,00 belastingexcl.
Onderdeelnummer:
ATE 24.0218-0048.1
(240218-00481)
- Buitendiameter [mm]: 224,0
- Binnendiameter [mm]: 180,0
- Draagplaat diameter [mm]: 61,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480314
- Ean Code: 4006633386487
- Gewicht: 6.41kg
Specification of ATE 24.0218-0048.1 / 240218-00481 / 24021800481:
| OE Number | Reference info |
| HONDA 42610-SAA-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA JAZZ II (GD_, GE3, GE2) Fitting Position Rear Axle | 2002-03 - 2008-07 | 57 | 78 | 1243 | Hatchback |
| HONDA JAZZ II (GD_, GE3, GE2) Construction Year to 200312 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2002-03 - 2008-07 | 61 | 83 | 1339 | Hatchback |
| HONDA JAZZ II (GD_, GE3, GE2) Fitting Position Rear Axle Braking/Driving Dynamics for vehicles without ABS | 2002-04 - 2008-07 | 81 | 110 | 1497 | Hatchback |
24.0218-0048.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Honda
- Handelsnummer
- 480314
- Land van Herkomst
- Italië
- Hoogte
- 56,0
- Buitendiameter [mm]
- 224,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 61,0
- Binnendiameter [mm]
- 180,0
- Bordiameter [mm]
- 12,7
- Max. Afborende Dimensie [mm]
- 181,0
- Binnenhoogte van de remtrommel [mm]
- 39,0
Specifieke referenties
- ean13
- 4006633386487
- MPN
- 2402180048102
ATE 24.0218-0048.1
(240218-00481)
- Buitendiameter [mm]: 224,0
- Binnendiameter [mm]: 180,0
- Draagplaat diameter [mm]: 61,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480314
