ATE Originele 2-delige remtrommel (24022000061) voor Kia
€ 90,75
(incl. btw)
€ 75,00 belastingexcl.
Onderdeelnummer:
ATE 24.0220-0006.1
(240220-00061)
- Buitendiameter [mm]: 230,0
- Binnendiameter [mm]: 200,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480309
- Ean Code: 4006633379342
- Gewicht: 9.99kg
Specification of ATE 24.0220-0006.1 / 240220-00061 / 24022000061:
| OE Number | Reference info |
| KIA 0K30A-26-250A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 0K30A-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 0K30C-26-250A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| KIA RIO I Saloon (DC_) Construction Year to 200206 Fitting Position Rear Axle | 2000-09 - 2005-02 | 55 | 75 | 1343 | Saloon |
| KIA RIO I Saloon (DC_) Construction Year to 200206 Fitting Position Rear Axle | 2000-09 - 2005-02 | 72 | 98 | 1493 | Saloon |
| KIA RIO I Hatchback (DC) Construction Year to 200206 Fitting Position Rear Axle | 2000-08 - 2005-02 | 55 | 75 | 1343 | Hatchback |
| KIA RIO I Hatchback (DC) Construction Year to 200206 Fitting Position Rear Axle | 2000-08 - 2005-02 | 60 | 82 | 1343 | Hatchback |
| KIA RIO I Hatchback (DC) Construction Year to 200206 Fitting Position Rear Axle | 2000-08 - 2005-02 | 72 | 98 | 1493 | Hatchback |

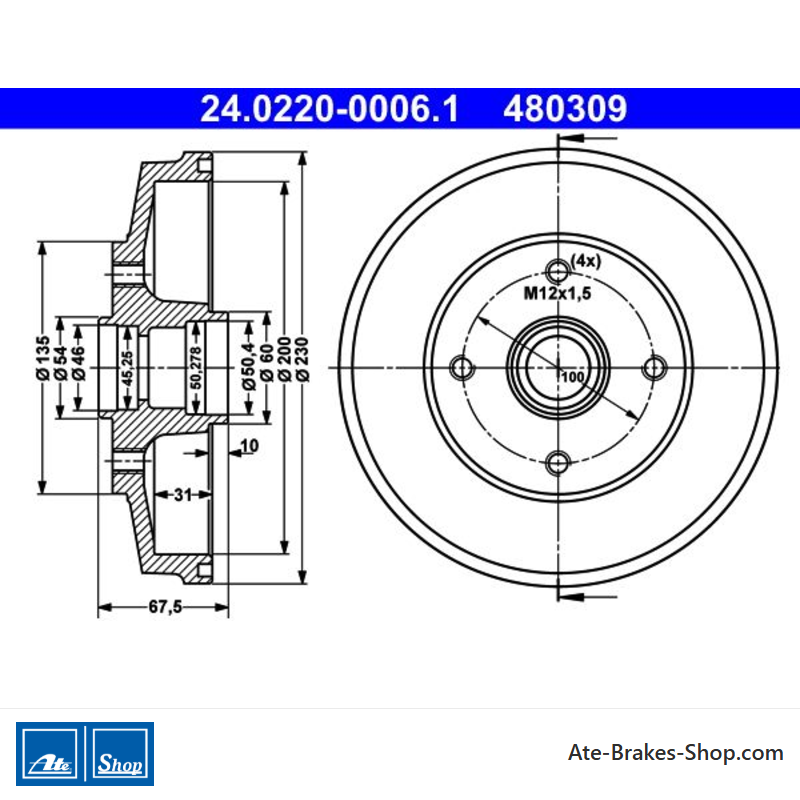

24.0220-0006.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Kia
- Handelsnummer
- 480309
- Land van Herkomst
- China
- Aanvullende informatie
- zonder ABS-sensorring
zonder wiellager - Hoogte
- 67,5
- Buitendiameter [mm]
- 230,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Binnendiameter [mm]
- 200,0
- Draadmaat
- M12x1,5
- Max. Afborende Dimensie [mm]
- 201,5
- Binnenhoogte van de remtrommel [mm]
- 31,0
- Remtrommel binnendiameter [mm]
- 45,3
50,3
Specifieke referenties
- ean13
- 4006633379342
- MPN
- 2402200006102
