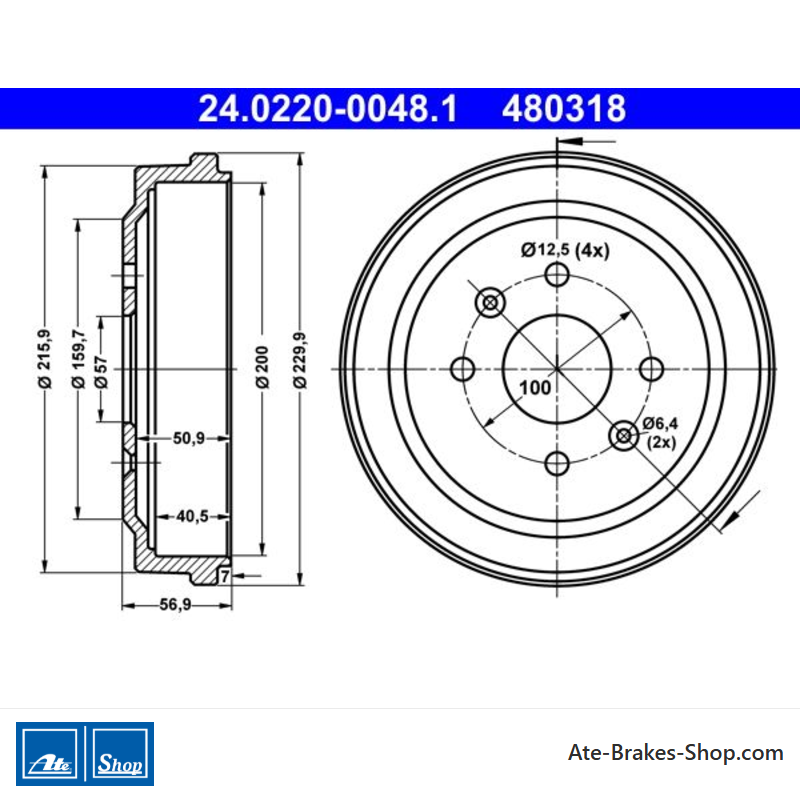

ATE Originele 2-delige remtrommel (24022000481) voor Chevrolet
€ 83,49
(incl. btw)
€ 69,00 belastingexcl.
Onderdeelnummer:
ATE 24.0220-0048.1
(240220-00481)
- Buitendiameter [mm]: 230
- Binnendiameter [mm]: 200,0
- Draagplaatdiameter [mm]: 57,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480318
- Ean Code: 4006633409056
- Gewicht: 7.72kg
Specification of ATE 24.0220-0048.1 / 240220-00481 / 24022000481:
| OE Number | Reference info |
| CHEVROLET 96470999 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHEVROLET AVEO / KALOS Saloon (T250, T255) Construction Year to 201107 Fitting Position Rear Axle | 2008-01 - | 55 | 75 | 1206 | Saloon |
| CHEVROLET AVEO / KALOS Saloon (T250, T255) Construction Year to 201107 Fitting Position Rear Axle | 2008-01 - | 62 | 84 | 1206 | Saloon |
| CHEVROLET AVEO / KALOS Saloon (T250, T255) Construction Year to 201107 Fitting Position Rear Axle | 2009-01 - | 62 | 84 | 1206 | Saloon |
| CHEVROLET AVEO / KALOS Saloon (T250, T255) Fitting Position Rear Axle | 2005-03 - 2013-05 | 69 | 94 | 1399 | Saloon |
| CHEVROLET AVEO / KALOS Saloon (T250, T255) Construction Year to 201107 Fitting Position Rear Axle | 2008-09 - | 74 | 101 | 1399 | Saloon |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Construction Year to 201107 Fitting Position Rear Axle | 2008-04 - | 55 | 75 | 1206 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Construction Year to 201107 Fitting Position Rear Axle | 2008-04 - | 62 | 84 | 1206 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Construction Year to 201107 Fitting Position Rear Axle | 2008-06 - 2012-11 | 60 | 81 | 1206 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Construction Year to 201107 Fitting Position Rear Axle | 2008-04 - 2011-12 | 62 | 84 | 1206 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Fitting Position Rear Axle | 2006-06 - 2008-05 | 69 | 94 | 1399 | Hatchback |
| CHEVROLET AVEO / KALOS Hatchback (T250, T255) Construction Year to 201107 Fitting Position Rear Axle | 2008-04 - | 74 | 101 | 1399 | Hatchback |
| CHEVROLET SPARK (M300) Fitting Position Rear Axle | 2010-07 - | 48 | 65 | 995 | Hatchback |
| CHEVROLET SPARK (M300) Fitting Position Rear Axle | 2010-03 - | 50 | 68 | 995 | Hatchback |
| CHEVROLET SPARK (M300) Fitting Position Rear Axle | 2010-03 - | 50 | 68 | 995 | Hatchback |
| CHEVROLET SPARK (M300) Fitting Position Rear Axle | 2010-03 - | 60 | 82 | 1206 | Hatchback |
| CHEVROLET SPARK (M300) Fitting Position Rear Axle | 2010-03 - | 60 | 82 | 1206 | Hatchback |
24.0220-0048.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Chevrolet
- Handelsnummer
- 480318
- Land van Herkomst
- China
- Hoogte
- 56,9
- Buitendiameter [mm]
- 230
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 57,0
- Binnendiameter [mm]
- 200,0
- Bordiameter [mm]
- 12,5
- Max. Afborende Dimensie [mm]
- 201,0
- Binnenhoogte van de remtrommel [mm]
- 40,5
Specifieke referenties
- ean13
- 4006633409056
- MPN
- 2402200048102
ATE 24.0220-0048.1
(240220-00481)
- Buitendiameter [mm]: 230
- Binnendiameter [mm]: 200,0
- Draagplaatdiameter [mm]: 57,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480318
