ATE Originele 2-delige remtrommel (24022000501) voor Opel
search
  • ATE Originele 2-delige remtrommel (24022000501) voor Opel
  • ATE Originele 2-delige remtrommel (24022000501) voor Opel

ATE Originele 2-delige remtrommel (24022000501) voor Opel

€ 98,01 (incl. btw)

€ 81,00 belastingexcl.

Onderdeelnummer:

ATE 24.0220-0050.1
(240220-00501)

  • Buitendiameter [mm]: 230,0
  • Binnendiameter [mm]: 200,0
  • Draagplaat diameter [mm]: 60,1
  • Aantal boutgaten: 4
  • 2 Stukken Remtrommel
  • Handelsnummer: 480334
  • Ean Code: 4006633504454
  • Gewicht: 7.75kg
Aantal

Specification of ATE 24.0220-0050.1 / 240220-00501 / 24022000501:

OE NumberReference info
OPEL 5 68 007Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
OPEL 568007Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
OPEL 95245601Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAUXHALL 95245601Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAUXHALL 5 68 007Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAUXHALL 568007Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
OPEL KARL (C16)

Fitting Position Rear Axle		2018-01 - 2019-035473999Hatchback
OPEL KARL (C16)

Fitting Position Rear Axle		2015-02 - 2018-035473999Hatchback
OPEL KARL (C16)

Fitting Position Rear Axle		2015-01 - 2018-035575999Hatchback

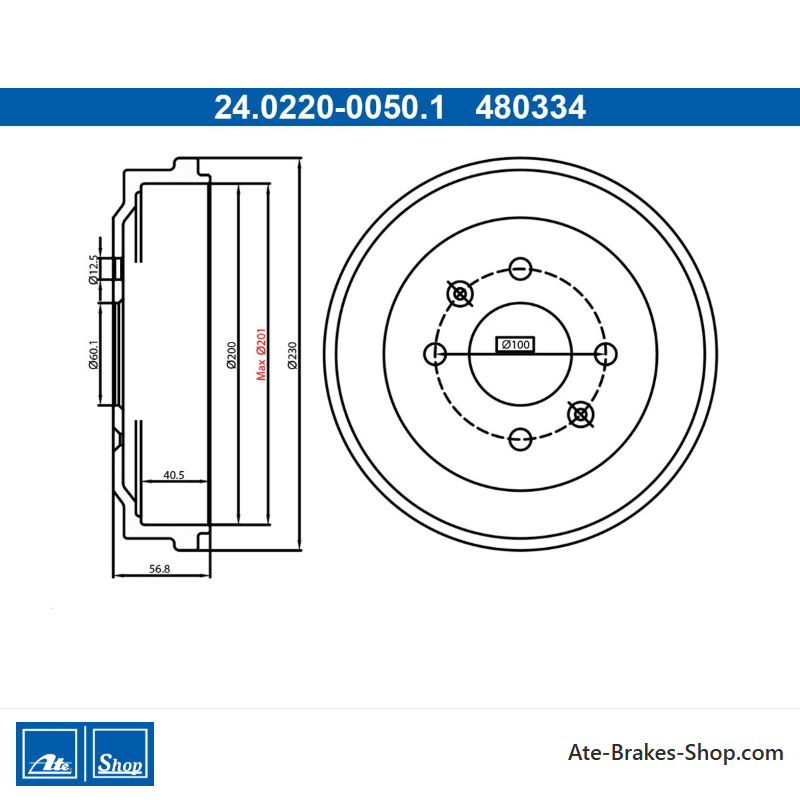

24.0220-0050.1

Datasheet

Artikelstatus
Bestelbaar
Automerk
Opel
Handelsnummer
480334
Land van Herkomst
China
Hoogte
56,8
Buitendiameter [mm]
230,0
Aantal boltgaten
4
Diameter van het schroefgat [mm]
100,0
Diameter van de ondersteuningsplaat [mm]
60,1
Binnendiameter [mm]
200,0
Bordiameter [mm]
12,5
Max. Afborende Dimensie [mm]
201,0
Binnenhoogte van de remtrommel [mm]
40,5

Specifieke referenties

ean13
4006633504454
MPN
2402200050102
