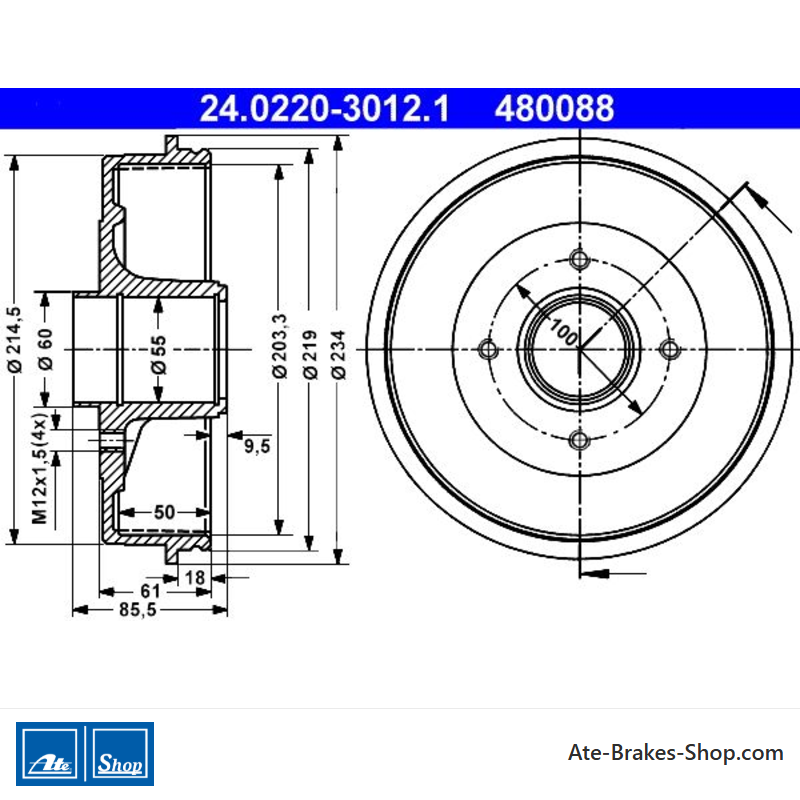

ATE Originele 2-delige remtrommel (24022030121) voor Renault
€ 116,16
(incl. btw)
€ 96,00 belastingexcl.
Onderdeelnummer:
ATE 24.0220-3012.1
(240220-30121)
- Buitendiameter [mm]: 234,0
- Binnendiameter [mm]: 203,0
- Draagplaatdiameter [mm]: 55,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480088
- Ean Code: 4006633007603
- Gewicht: 10.80kg
Specification of ATE 24.0220-3012.1 / 240220-30121 / 24022030121:
| OE Number | Reference info |
| RENAULT 77 00 840 711 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7700840711 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 77 00 820 816 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7700820816 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT LAGUNA I (B56_, 556_) Construction Year to 200102 Fitting Position Rear Axle | 1997-11 - 2001-03 | 79 | 107 | 1598 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year to 200102 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-11 - 2001-03 | 66 | 90 | 1794 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year to 200102 Fitting Position Rear Axle | 1995-08 - 2001-03 | 66 | 90 | 1794 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year to 199506 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-06 - 2001-02 | 69 | 94 | 1794 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year from 199507 Fitting Position Rear Axle | 1995-06 - 2001-02 | 69 | 94 | 1794 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year to 200102 Fitting Position Rear Axle | 1995-08 - 2001-03 | 69 | 94 | 1794 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year to 199506 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-06 - 1998-06 | 70 | 95 | 1794 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year from 199507 Fitting Position Rear Axle | 1995-06 - 1998-06 | 70 | 95 | 1794 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year to 200102 Fitting Position Rear Axle not for vehicle equipment line/trim level Initiale not for vehicle equipment line/trim level Fairway | 1998-04 - 2001-03 | 88 | 120 | 1783 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year to 200102 Fitting Position Rear Axle not for vehicle equipment line/trim level Fairway | 1999-03 - 2001-03 | 80 | 109 | 1998 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year from 199507 Construction Year to 200102 Fitting Position Rear Axle not for vehicle equipment line/trim level Initiale not for vehicle equipment line/trim level Baccara | 1993-11 - 2001-03 | 83 | 113 | 1998 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year to 199506 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-11 - 2001-03 | 83 | 113 | 1998 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year from 199507 Construction Year to 200102 Fitting Position Rear Axle | 1993-11 - 2001-03 | 83 | 113 | 1998 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year to 199506 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-06 - 2001-02 | 84 | 114 | 1998 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year to 200102 Fitting Position Rear Axle | 1997-10 - 2001-03 | 72 | 98 | 1870 | Hatchback |
| RENAULT LAGUNA I (B56_, 556_) Construction Year to 199506 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-11 - 2001-03 | 61 | 83 | 2188 | Hatchback |
24.0220-3012.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Renault
- Handelsnummer
- 480088
- Land van Herkomst
- Italië
- Aanvullende informatie
- zonder ABS-sensorring
zonder wiellager - Hoogte
- 85,5
- Buitendiameter [mm]
- 234,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 55,0
- Binnendiameter [mm]
- 203,0
- Draadmaat
- M12x1,5
- Max. Afborende Dimensie [mm]
- 204,5
- Binnenhoogte van de remtrommel [mm]
- 50,0
Specifieke referenties
- ean13
- 4006633007603
- MPN
- 2402203012102
ATE 24.0220-3012.1
(240220-30121)
- Buitendiameter [mm]: 234,0
- Binnendiameter [mm]: 203,0
- Draagplaatdiameter [mm]: 55,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480088
